Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 198507 |

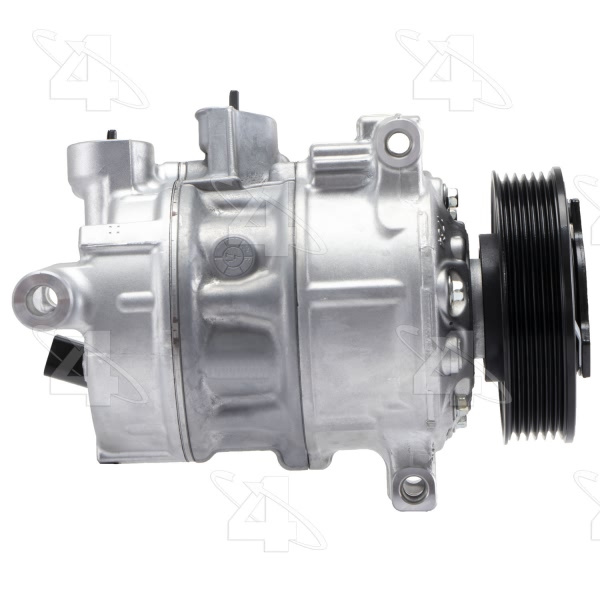

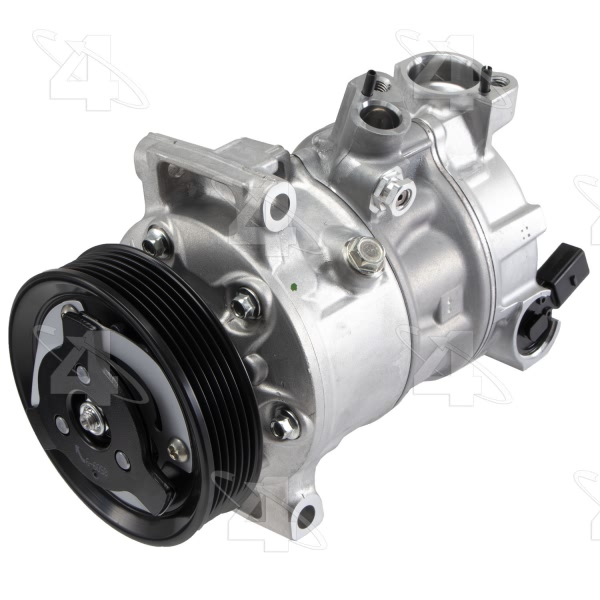

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.330 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | PXC14 |
| Distance From Clutch To Mounting Flange | 1.400 |

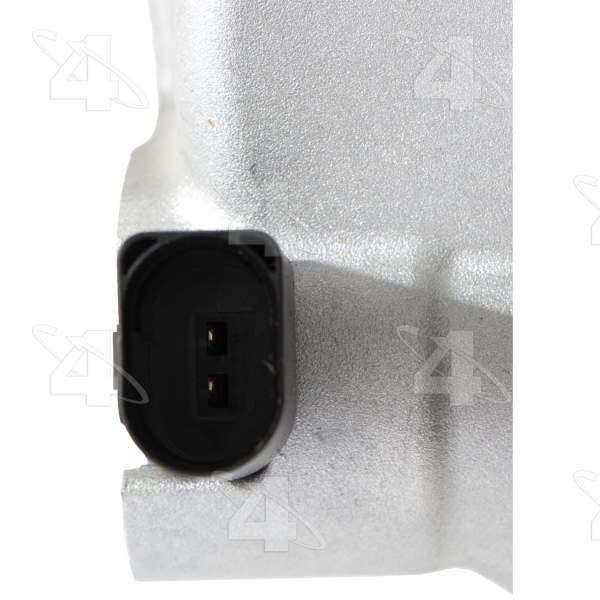

| ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
| Mounting Hardware | Not Included |
| Mounting Type | 3 Tangent One on Rear Head |
| New or Reman | New |
| O-Ring A Number/Desc | 24635 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24659 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | 24683 |
| O-Ring C Quantity | 1 |

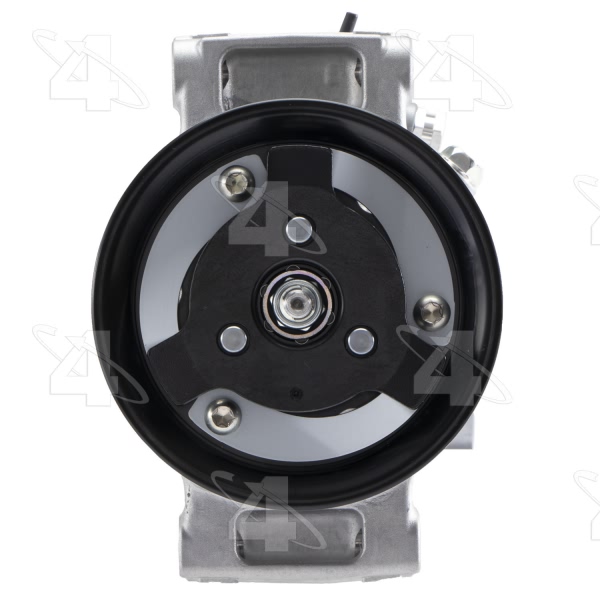

| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.330 |
| Pulley Outside Diameter | 4.330 |
| Pulley Ridge Diameter | 4.330 |
| Refrigerant Type | R-134a or R1234yf |
| Terminal Type | Pin |
| UPC | 096361099739 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017 Audi A3 | All Trims | 4 Cyl 2.0L |
| 2018 Audi A3 | All Trims | All Engines |
| 2017-2018 Audi A3 Quattro | All Trims | All Engines |
| 2018 Audi A3 Sportback e-tron | All Trims | All Engines |
| 2018 Audi Q2 | All Trims | All Engines |
| 2018 Audi Q2 Quattro | All Trims | All Engines |
| 2017-2018 Audi Q3 | All Trims | All Engines |
| 2017 Audi Q3 Quattro | All Trims | 4 Cyl 2.0L |
| 2018 Audi Q3 Quattro | All Trims | All Engines |
| 2017 Audi Q5 | All Trims | 4 Cyl 2.0L |
