Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58022 |

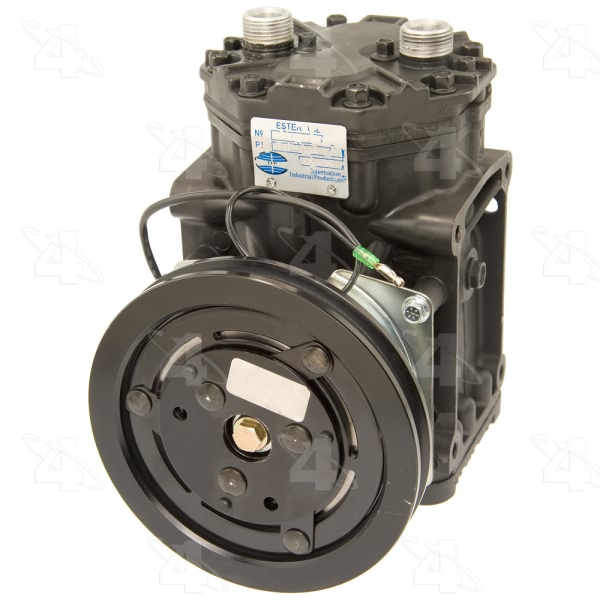

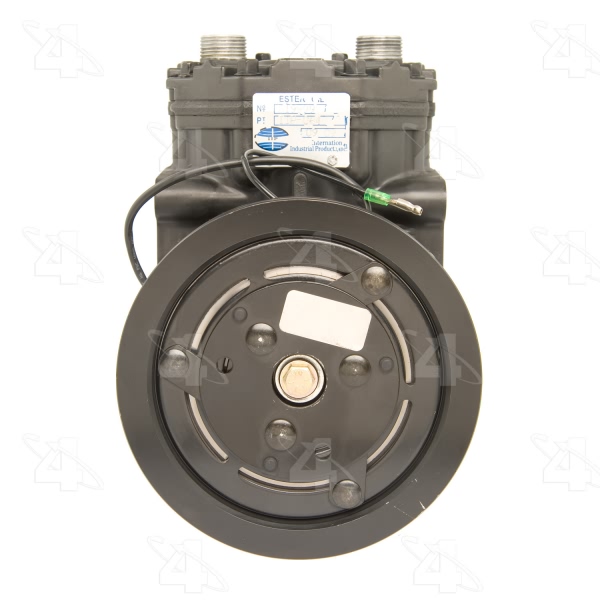

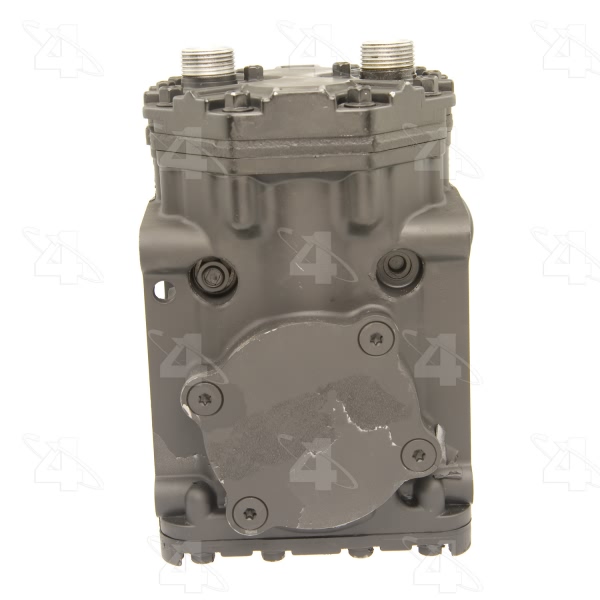

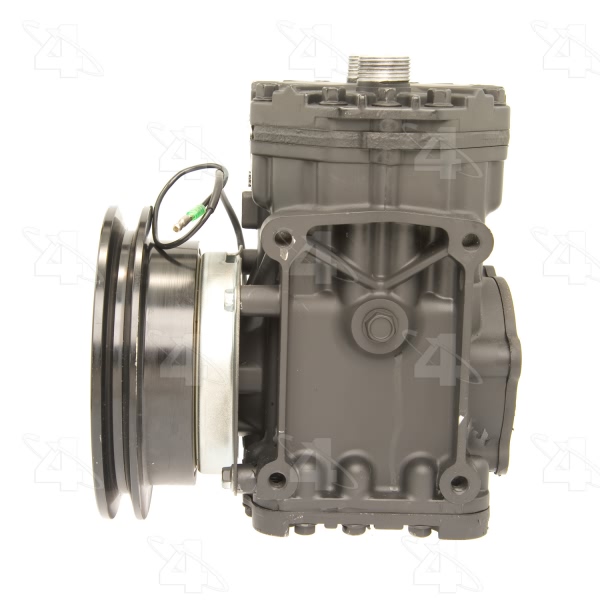

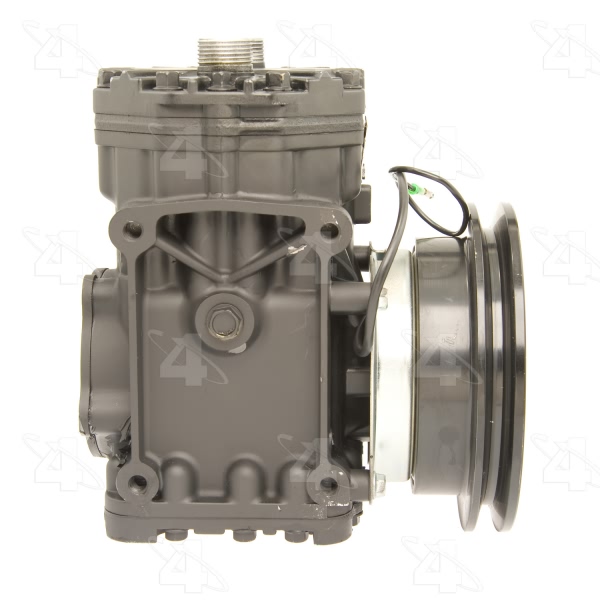

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Belt Width MM | 12.700 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 6.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 209-210 |
| Discharge Port Type | Tube O-Fitting |
| Distance From Clutch To Mounting Flange | 2.875 |
| Mounting Hardware | Not Included |
| Mounting Type | Case Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24610] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 158.750 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 6.250 |
| Pulley Outside Diameter | 6.250 |
| Pulley Ridge Diameter | 6.250 |
| Refrigerant Type | R134a |

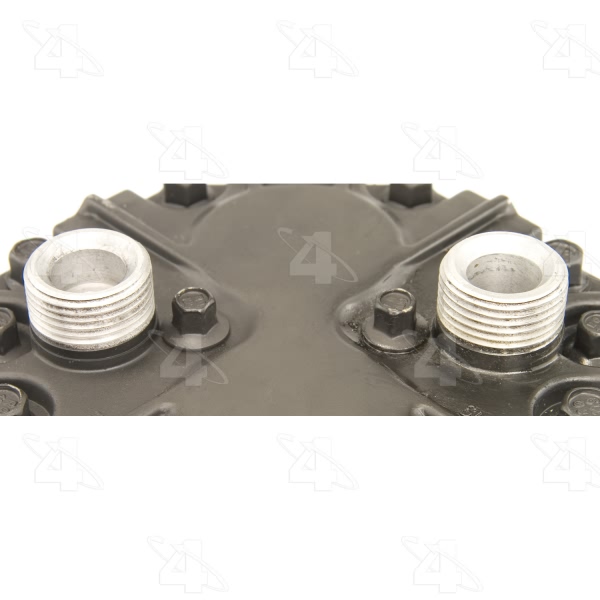

| Suction Port Type | Tube O-Fitting |

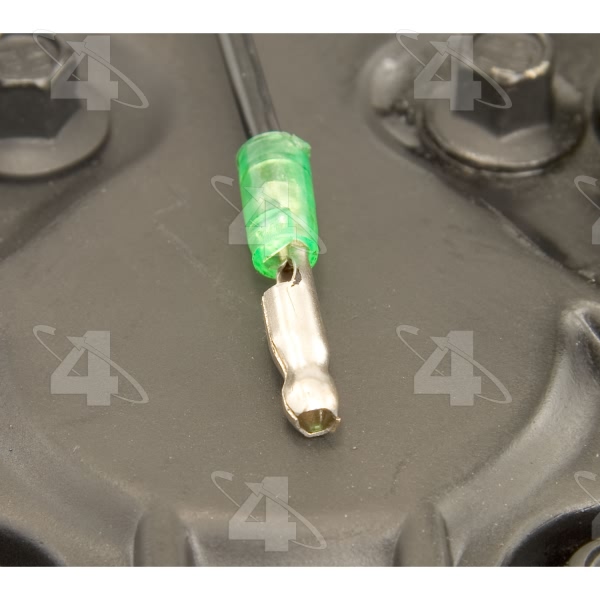

| Terminal Type | Spade |
| UPC | 096361580220 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1976-1981 Ford Bronco | All Trims | All Engines |
| 1970-1971 Ford Custom | All Trims | 8 Cyl 6.4L |
| 1970-1972 Ford Custom | All Trims | 8 Cyl 5.0L |
| 1970-1972 Ford Custom | All Trims | 8 Cyl 5.8L |
| 1970-1972 Ford Custom | All Trims | 8 Cyl 7.0L |
| 1971-1972 Ford Custom | All Trims | 8 Cyl 6.6L |
| 1972 Ford Custom | All Trims | 8 Cyl 7.5L |
| 1970-1971 Ford Custom 500 | All Trims | 8 Cyl 6.4L |
| 1970-1972 Ford Custom 500 | All Trims | 6 Cyl 3.9L |
| 1970-1972 Ford Custom 500 | All Trims | 8 Cyl 5.0L |
