Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58229 |

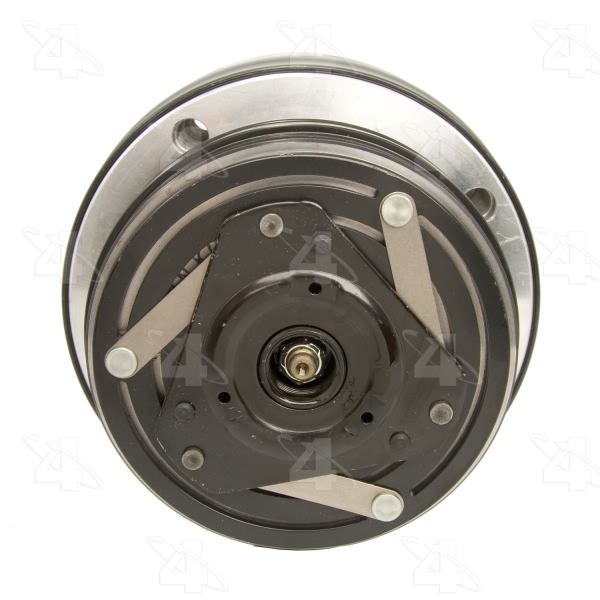

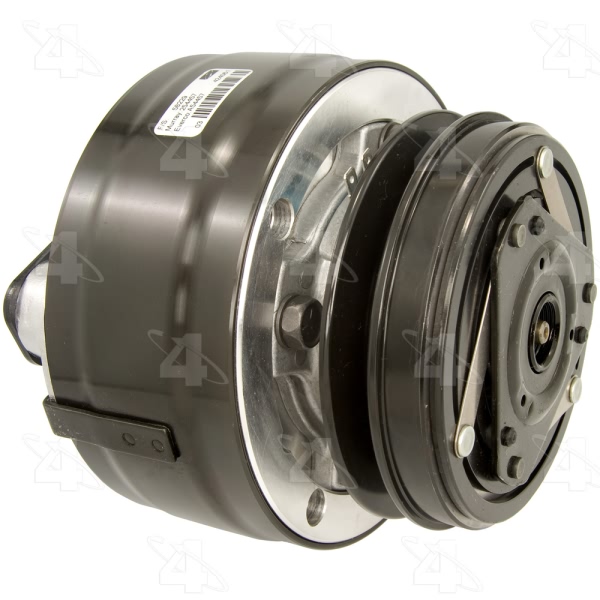

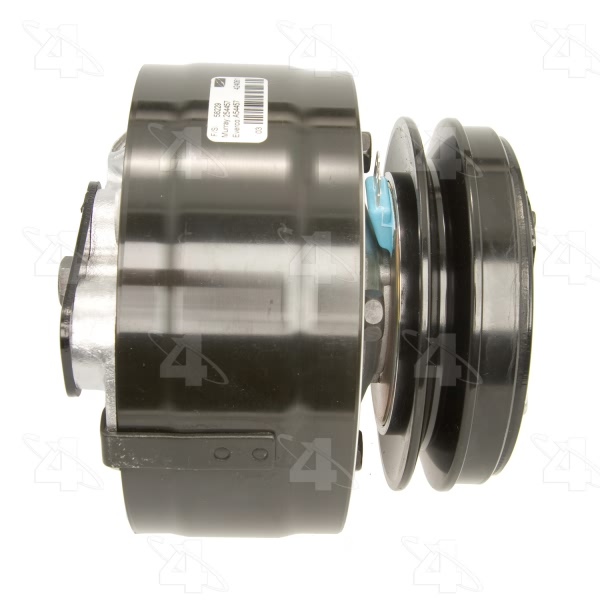

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Belt Width MM | 12.700 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.500 |
| Coil Clock Position | 12 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | R4 Heavy |
| Discharge Port Type | O-Ring / Sealing Washer |
| Distance From Clutch To Mounting Flange | 1.203125 |
| Mount Distance MM | 30.480 |
| Mounting Hardware | Not Included |
| Mounting Type | Case Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24359] / Short Sealing Washer Pilot |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24360] / Long Sealing Washer Pilot |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24356] / Red Sealing Washer |
| O-Ring C Quantity | 2 |
| O-Ring D Number/Desc | [24357] / Green Sealing Washer |
| O-Ring D Quantity | 1 |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.500 |
| Pulley Outside Diameter | 5.500 |
| Pulley Ridge Diameter | 5.500 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring / Sealing Washer |
| Switch Included | High Pressure |

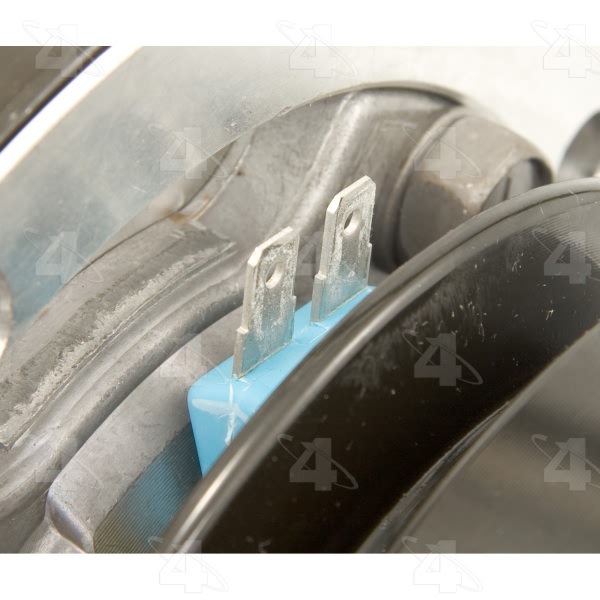

| Terminal Type | Spade |
| UPC | 096361582293 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1985 Buick Century | All Trims | 4 Cyl 2.5L |
| 1985 Buick Century | All Trims | 6 Cyl 4.3L |
| 1983 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
| 1984 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
| 1980-1983 Buick Skylark | All Trims | 6 Cyl 2.8L |
| 1985 Buick Skylark | All Trims | 4 Cyl 2.5L |
| 1982-1983 Cadillac Cimarron | All Trims | All Engines |
| 1986 Chevrolet C15 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet C20 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet C30 | All Trims | 6 Cyl 4.8L |
