Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58282 |

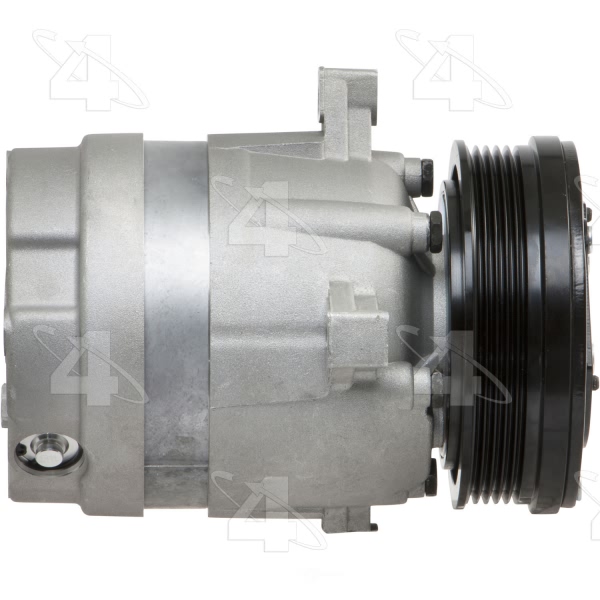

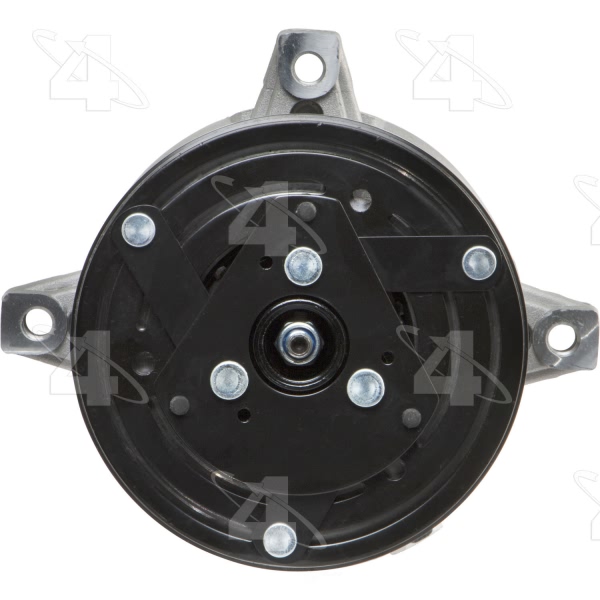

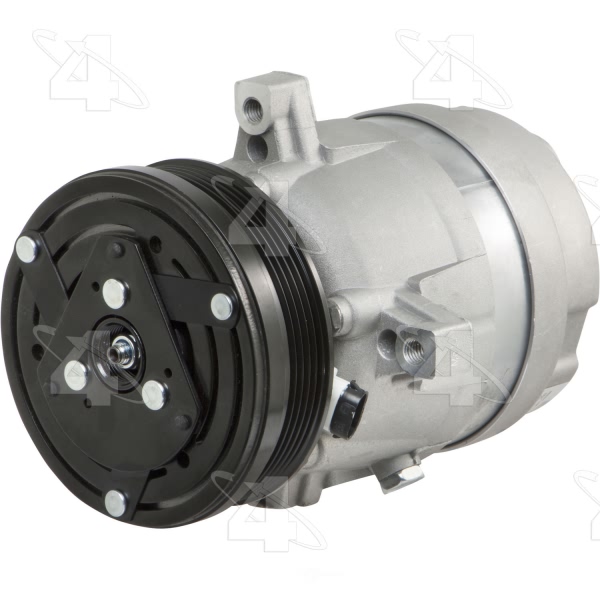

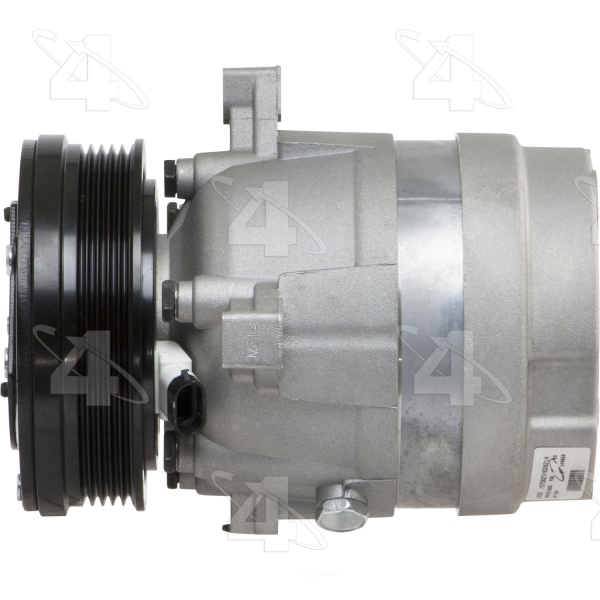

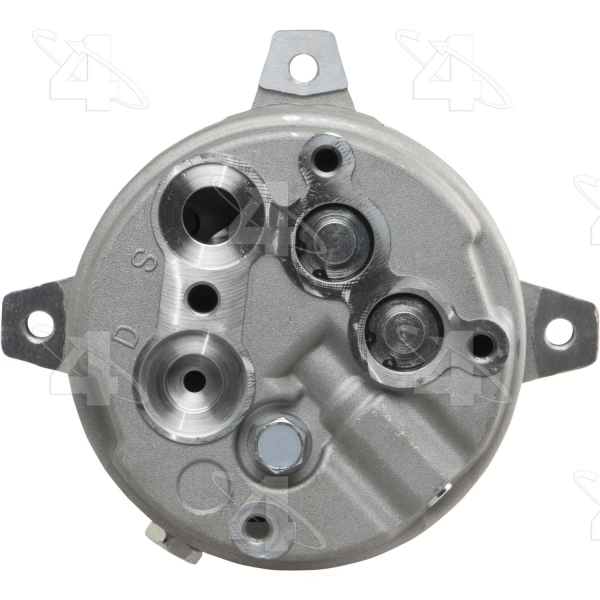

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.000 |
| Coil Clock Position | 2 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | V5 |
| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 1.250 |
| Mount Distance MM | 31.750 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24354] / Sealing Washer |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 5.000 |
| Pulley Outside Diameter | 5.000 |
| Pulley Ridge Diameter | 5.000 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |
| Switch Included | High Pressure |
| Terminal Type | 8mm Pin Connector |
| UPC | 096361582828 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1990-1991 Chevrolet Beretta | All Trims | 4 Cyl 2.3L |
| 1990 Chevrolet Corsica | All Trims | 4 Cyl 2.2L |
| 1990-1991 Oldsmobile Cutlass Supreme | All Trims | 4 Cyl 2.3L |
| 1990-1991 Pontiac Grand Prix | All Trims | 4 Cyl 2.3L |
