Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58552 |

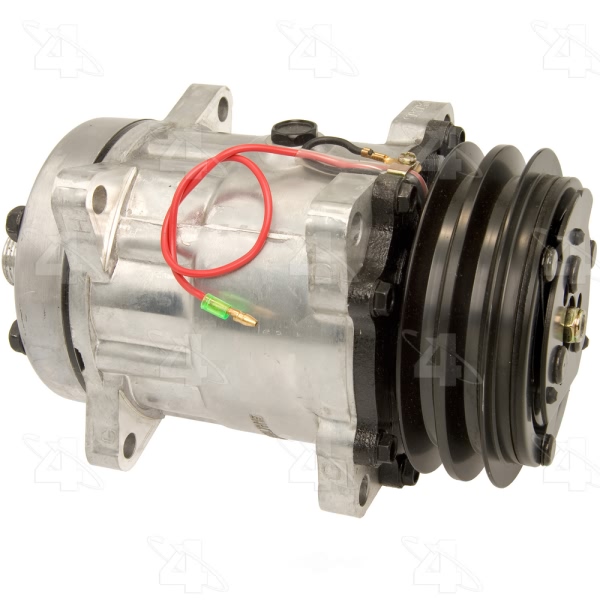

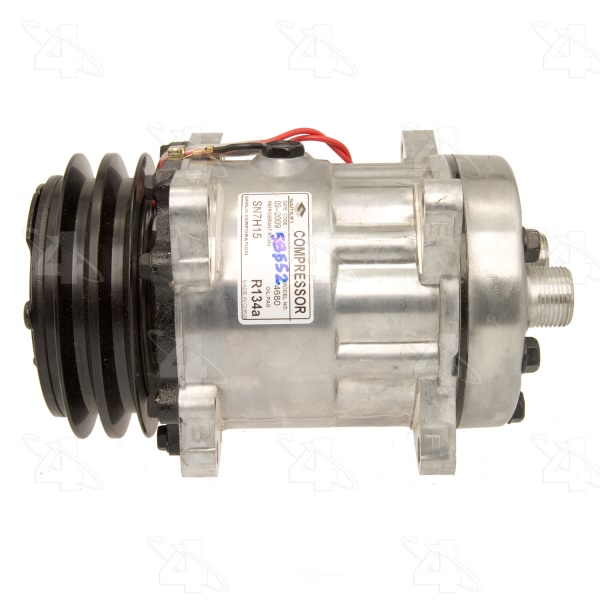

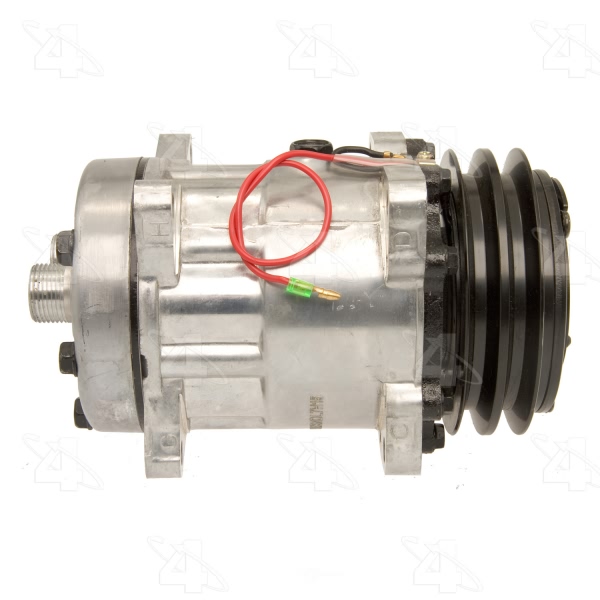

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Belt Width MM | 12.700 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |

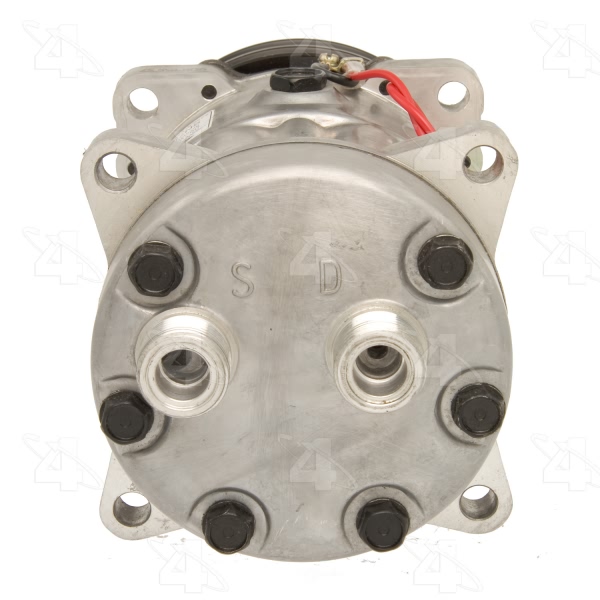

| Comp Head Prt Config | Rear-Horiz-Tube O |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | MD |
| Compressor Type | SD709 |

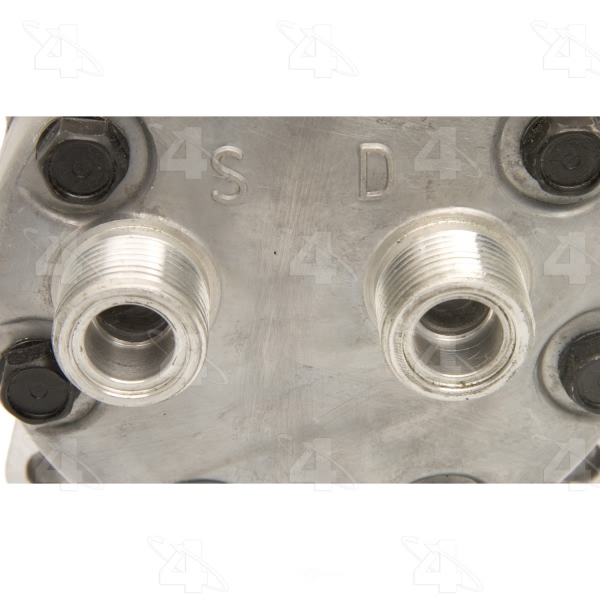

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.9375 |
| Mount Distance B IN | 1.5625 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24610] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |

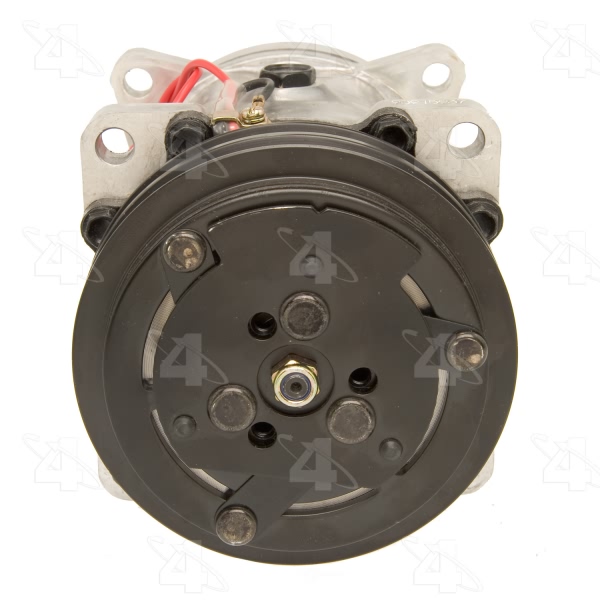

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 123.698 |
| Pulley Groove Quantity | 2 |
| Pulley Lip Diameter | 4.875 |
| Pulley Outside Diameter | 4.875 |
| Pulley Ridge Diameter | 4.875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |

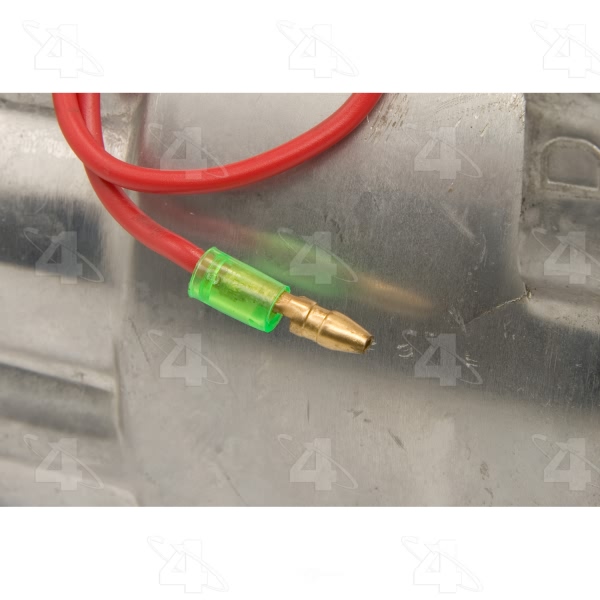

| Terminal Type | Bullet |
| UPC | 096361585522 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1986 Chevrolet P20 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet P20 | All Trims | 8 Cyl 5.7L |
| 1986 Chevrolet P20 | All Trims | 8 Cyl 6.2L |
| 1988 Chevrolet P20 | All Trims | 6 Cyl 4.8L |
| 1988 Chevrolet P20 | All Trims | 8 Cyl 5.7L |
| 1988 Chevrolet P20 | All Trims | 8 Cyl 6.2L |
| 1986 Chevrolet P30 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet P30 | All Trims | 8 Cyl 5.7L |
| 1986 Chevrolet P30 | All Trims | 8 Cyl 6.2L |
| 1986-1991 Chevrolet P30 | All Trims | 8 Cyl 7.4L |
