Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58572 |

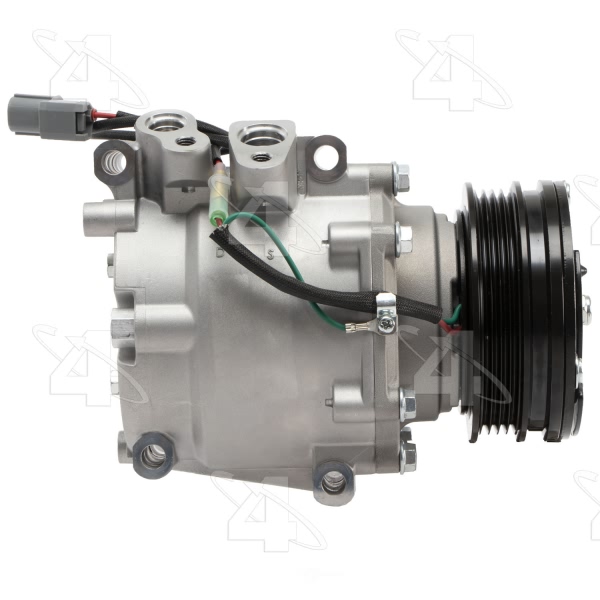

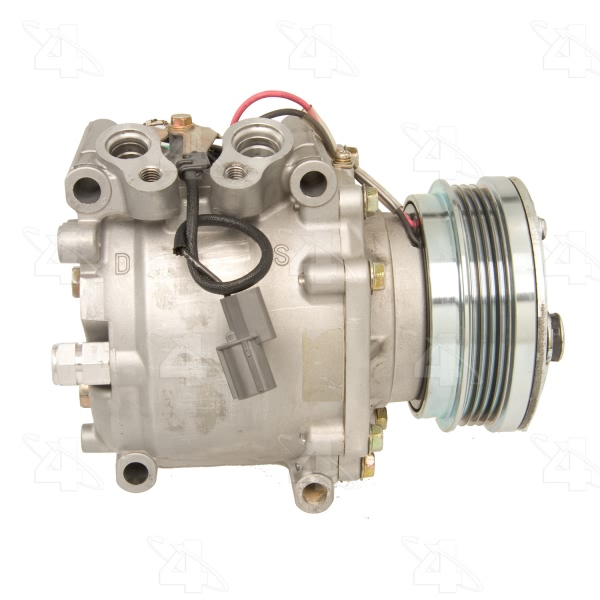

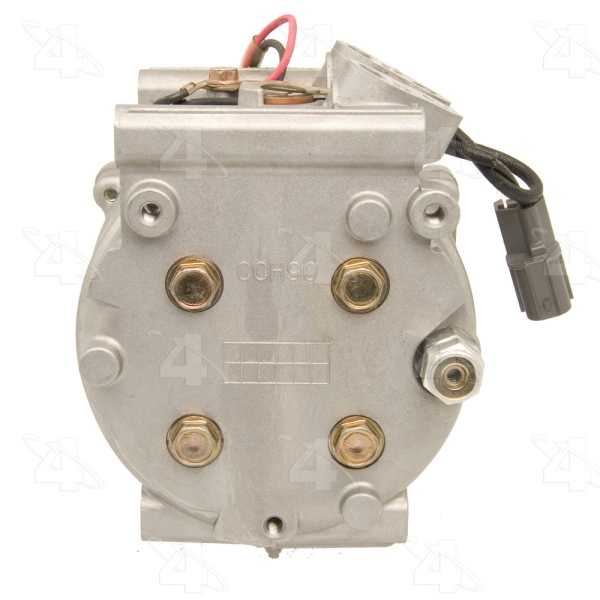

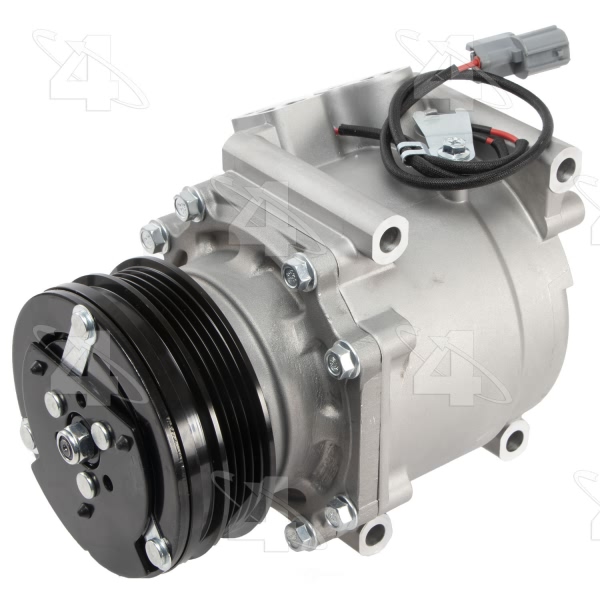

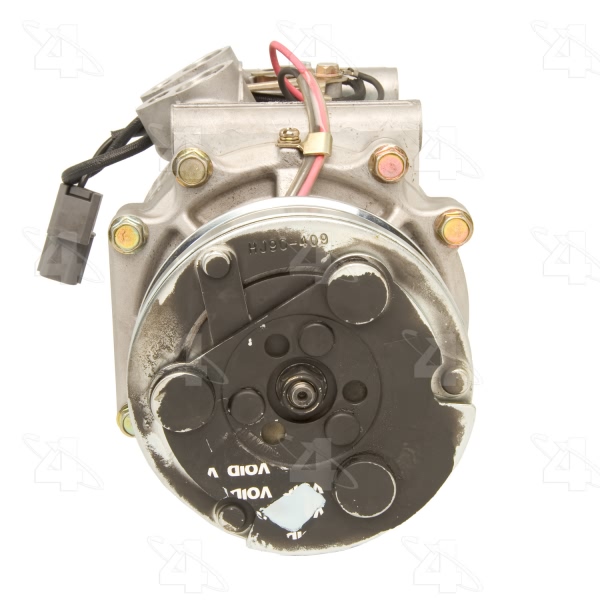

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 3.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | TRF090 |

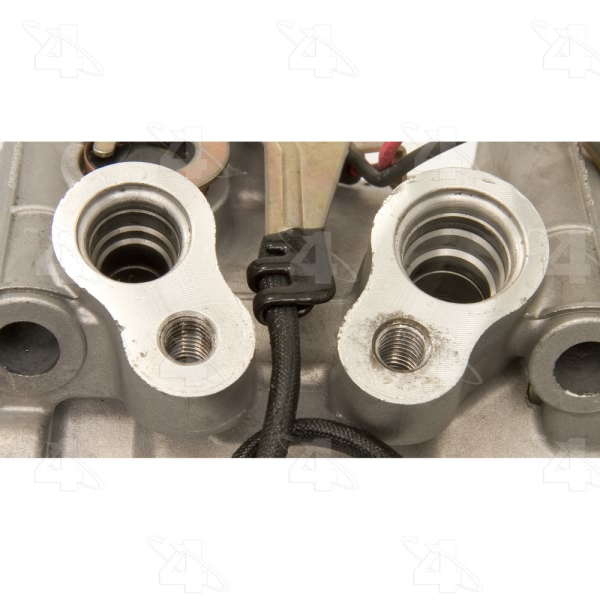

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.000 |
| Mount Distance MM | 50.800 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 95.250 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 3.750 |
| Pulley Outside Diameter | 3.750 |
| Pulley Ridge Diameter | 3.750 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Temp Switch |

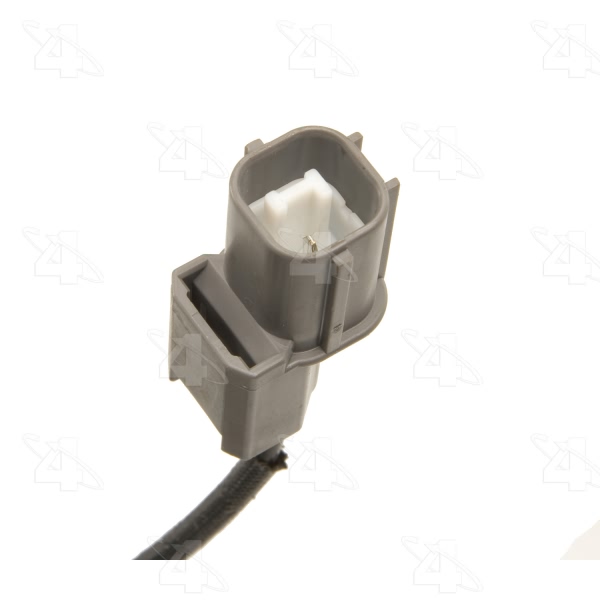

| Terminal Type | Pin |
| UPC | 096361585720 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1992-1993 Honda Civic | All Trims | All Engines |
| 1993 Honda Civic del Sol | All Trims | All Engines |
