Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58660 |

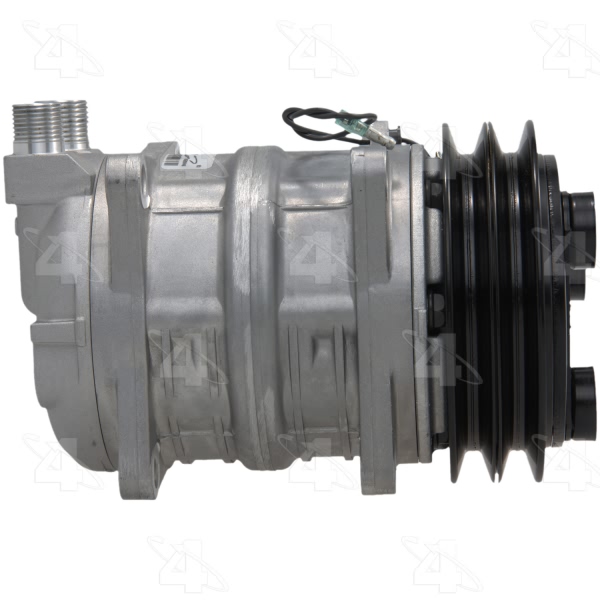

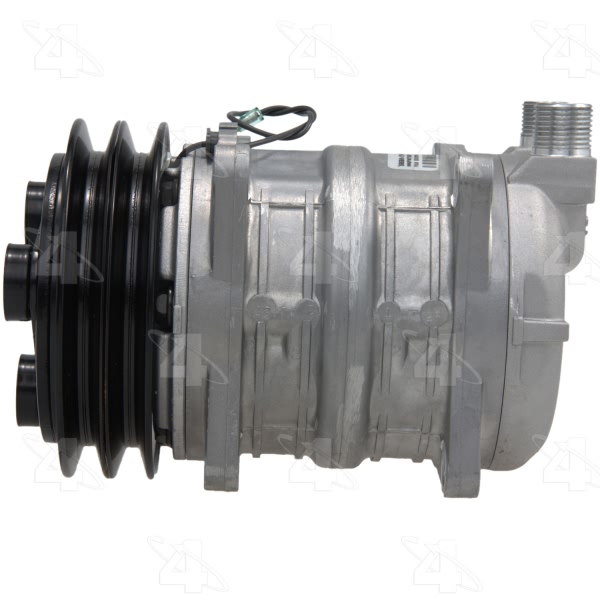

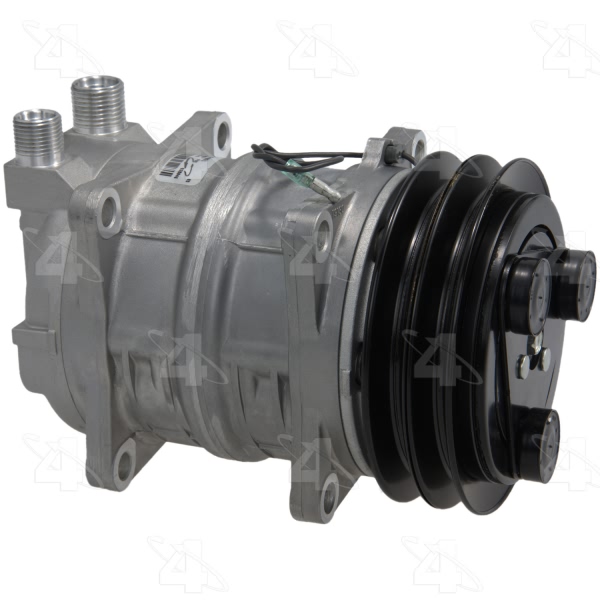

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.250 |
| Coil Clock Position | 12 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | TM13HA |
| Distance From Clutch To Mounting Flange | 1.09375 |
| Mount Distance B IN | 1.750 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |

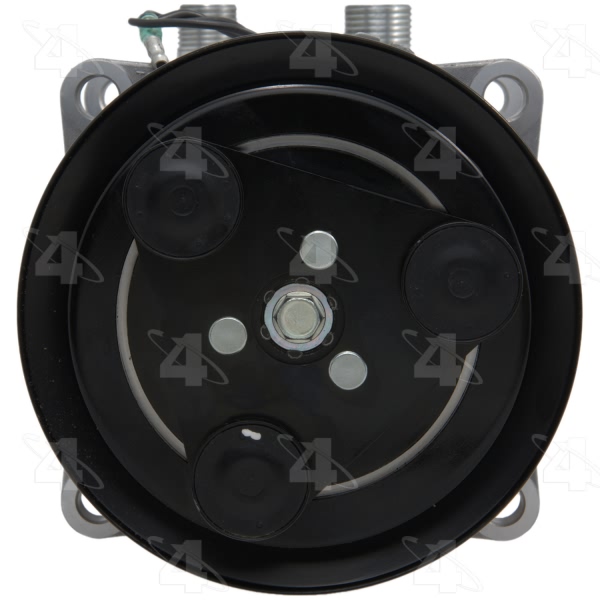

| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 133.350 |
| Pulley Groove Quantity | 2 |
| Pulley Lip Diameter | 5.250 |
| Pulley Outside Diameter | 5.250 |
| Pulley Ridge Diameter | 5.250 |
| Refrigerant Type | R134a |

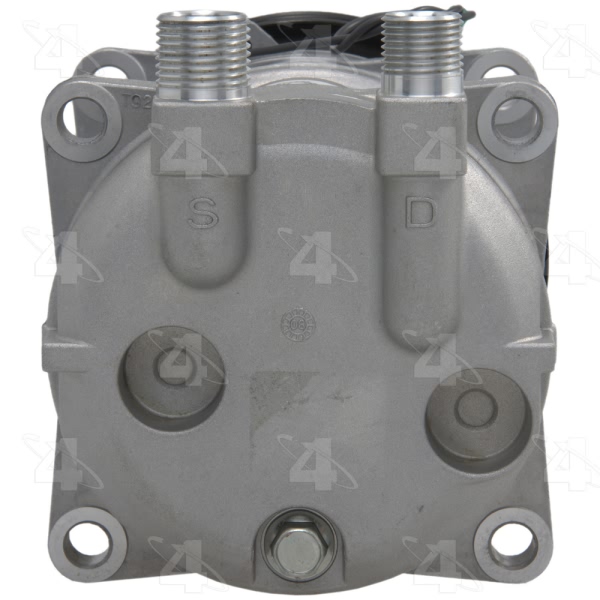

| Suc Prt Typ Note | #8 and #10 |

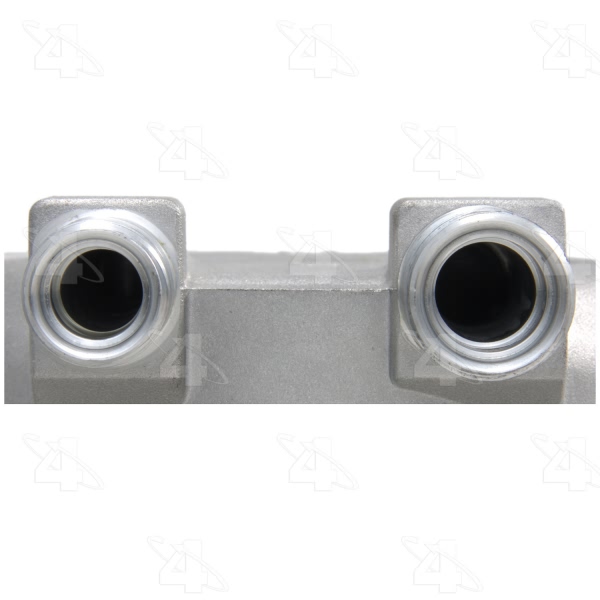

| Suction Port Type | O-Ring |

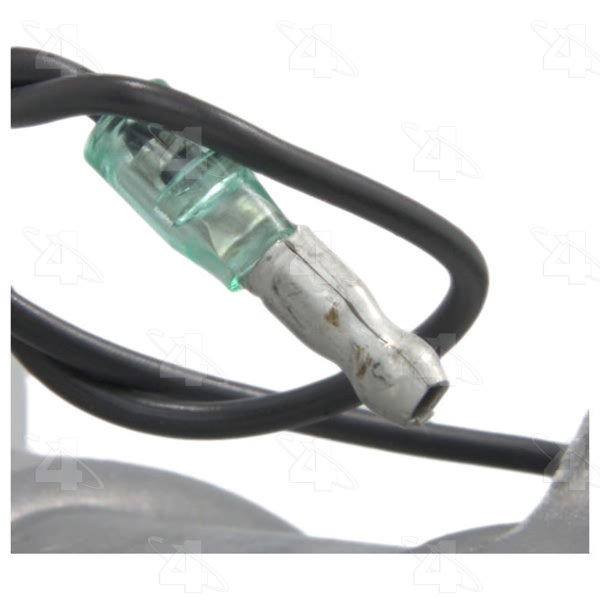

| Terminal Type | Bullet |
| UPC | 096361586604 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1984 Honda Accord | All Trims | All Engines |
