Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 58948 |

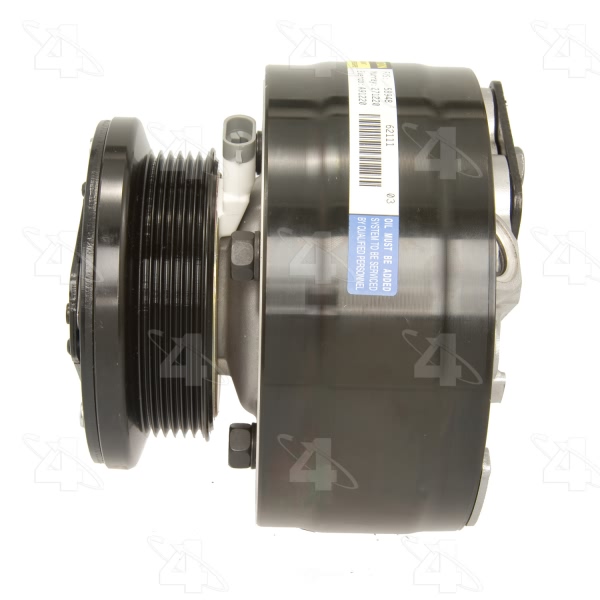

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |

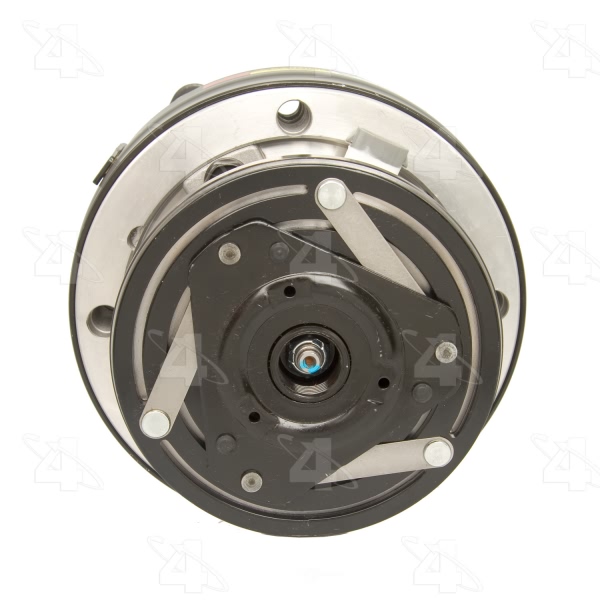

| Clutch Maximum Diameter | 4.250 |
| Coil Clock Position | 12 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | R4 Lightweight |
| Distance From Clutch To Mounting Flange | 0.859375 |
| Mounting Hardware | Not Included |
| Mounting Type | Case Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24355] / Sealing Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24354] / Sealing Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 107.950 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.250 |
| Pulley Outside Diameter | 4.250 |
| Pulley Ridge Diameter | 4.250 |
| Refrigerant Type | R134a |

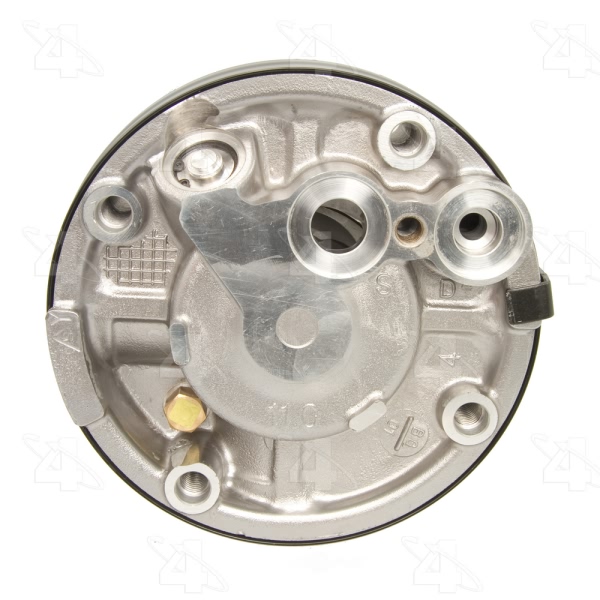

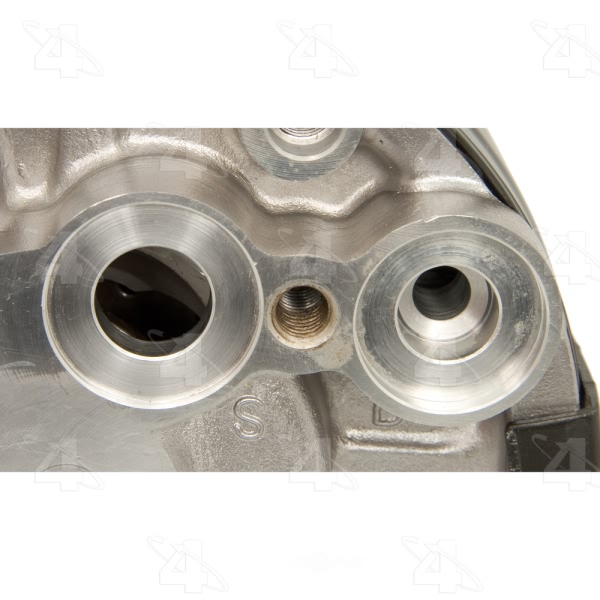

| Suc Prt Typ Note | w/ 5/8" x 3/4" Ports |
| Suction Port Type | Sealing Washer |
| Switch Included | High Pressure |
| Terminal Type | 8mm Pin Connector |
| UPC | 096361589483 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-1996 AM General Hummer | All Trims | 8 Cyl 5.7L |
| 1991 Buick Commercial Chassis | All Trims | 8 Cyl 5.0L |
| 1992-1996 Buick Commercial Chassis | All Trims | 8 Cyl 5.7L |
| 1991 Buick Roadmaster | All Trims | 8 Cyl 5.0L |
| 1992-1996 Buick Roadmaster | All Trims | 8 Cyl 5.7L |
| 1993 Cadillac Commercial Chassis | Brougham | 8 Cyl 5.7L |
| 1993 Cadillac Fleetwood | Base | All Engines |
| 1993 Cadillac Fleetwood | Brougham | All Engines |
| 1993-1995 Chevrolet Blazer | All Trims | All Engines |
| 1993-1995 Chevrolet C1500 | All Trims | All Engines |
