Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 68221 |

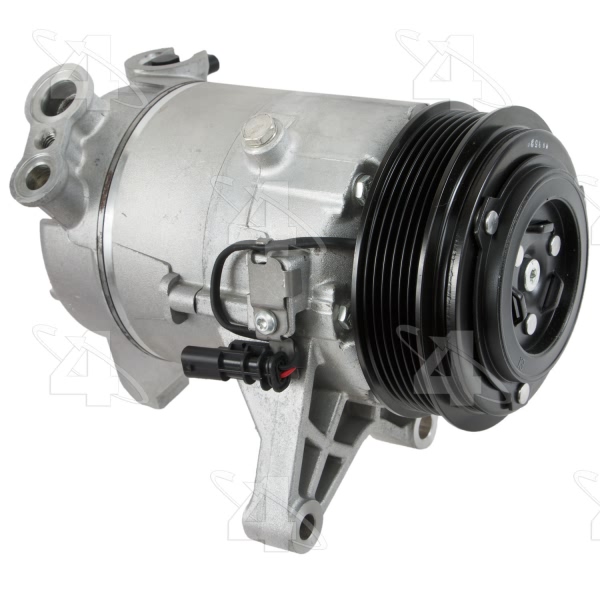

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.6875 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 or See under hood decal for proper oil type. |
| Compressor Type | CVC |
| Distance From Clutch To Mounting Flange | 1.000 |
| ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
| Mount Distance MM | 25.400 |
| Mounting Hardware | Not Included |
| Mounting Type | 2 Ear & 1 Tangent |
| New or Reman | New |
| O-Ring A Number/Desc | [24402] / Slimline Washer |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | 24404 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.126 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.6875 |
| Pulley Outside Diameter | 4.6875 |
| Pulley Ridge Diameter | 4.6875 |
| Refrigerant Type | R-134a or R1234yf |
| Terminal Type | Pin |
| UPC | 096361682214 |
| w/ Diode | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2015 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
| 2016 Buick LaCrosse | All Trims | All Engines |
| 2013 Cadillac XTS | Base | 6 Cyl 3.6L |
| 2013 Cadillac XTS | Livery | 6 Cyl 3.6L |
| 2013 Cadillac XTS | Luxury | 6 Cyl 3.6L |
| 2013 Cadillac XTS | Platinum | 6 Cyl 3.6L |
| 2013 Cadillac XTS | Premium | 6 Cyl 3.6L |
| 2013-2019 Cadillac XTS | All Trims | 6 Cyl 3.6L |
| 2016-2017 Chevrolet Equinox | All Trims | 6 Cyl 3.6L |
| 2014-2015 Chevrolet Impala | All Trims | 6 Cyl 3.6L |
