Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 68283 |

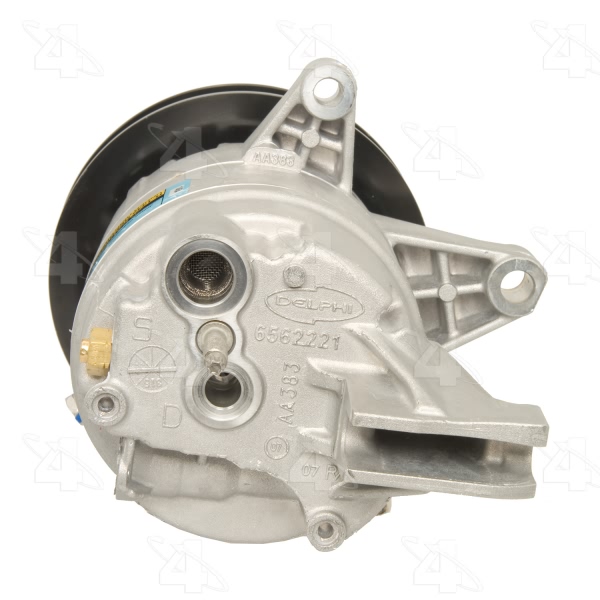

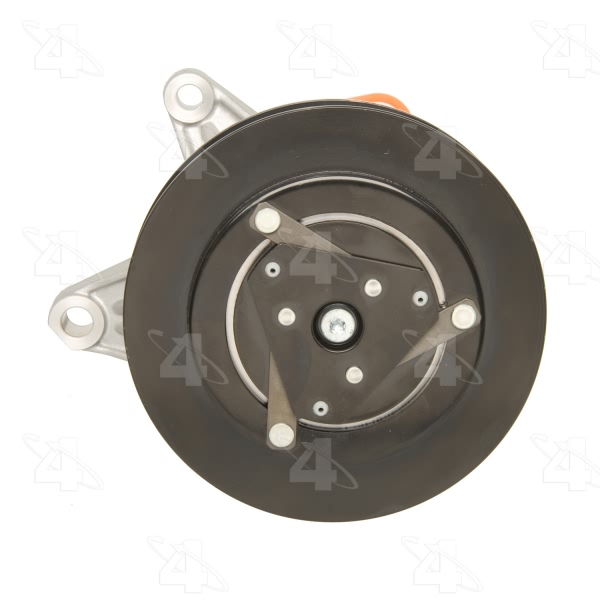

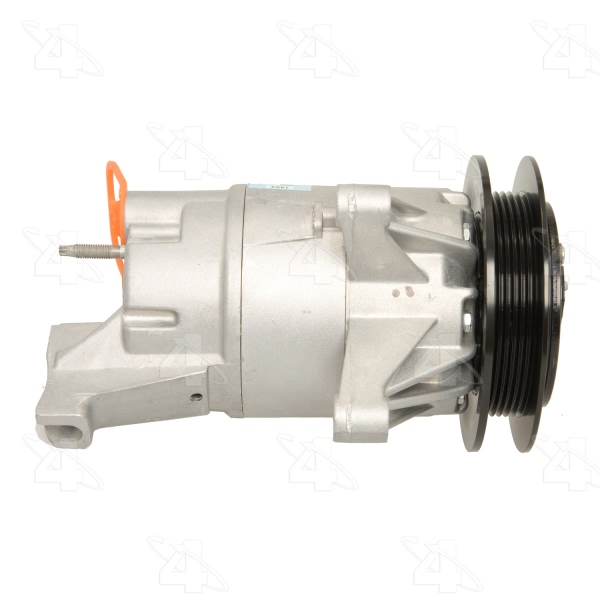

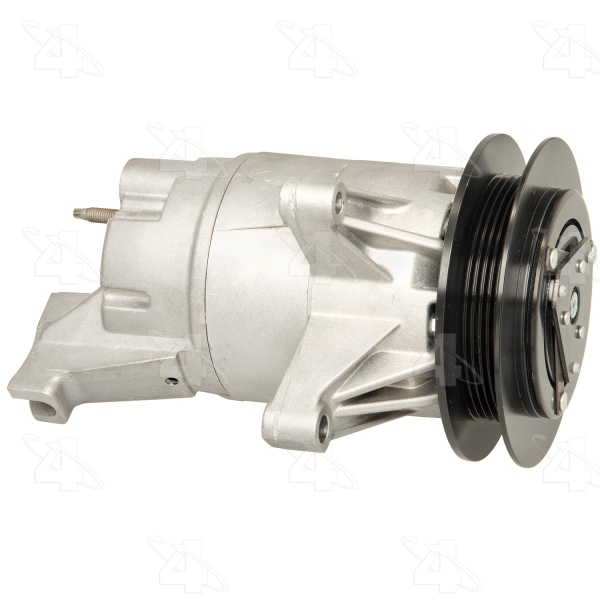

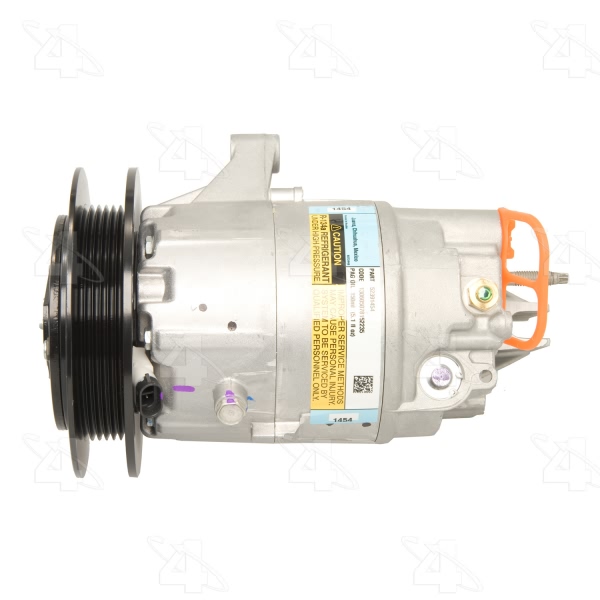

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.750 |
| Coil Clock Position | 4 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | CVC |

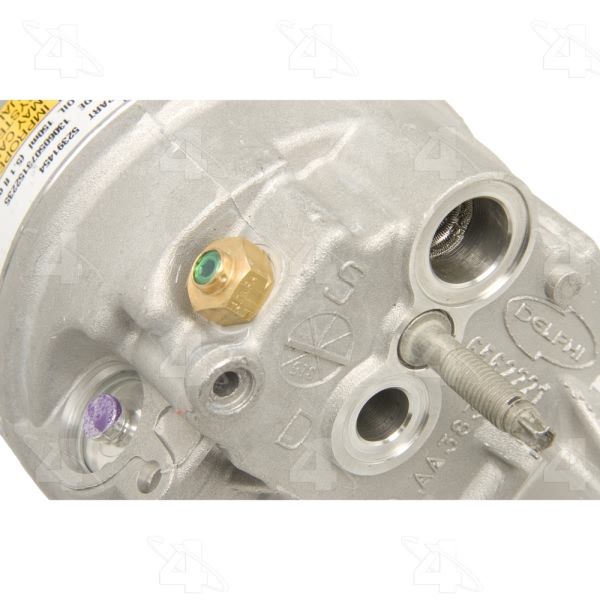

| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 2.000 |
| Mount Distance MM | 50.800 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 120.650 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.750 |
| Pulley Outside Diameter | 4.750 |
| Pulley Ridge Diameter | 4.750 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |

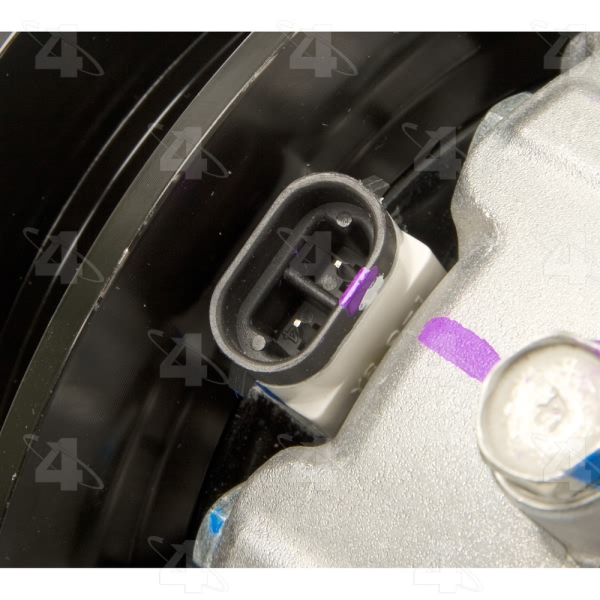

| Terminal Type | Pin |
| UPC | 096361682832 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2009 Buick Allure | All Trims | 6 Cyl 3.8L |
| 2005-2009 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
| 2004-2005 Chevrolet Impala | All Trims | 6 Cyl 3.8L |
| 2004-2005 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.8L |
| 2004 Pontiac Grand Prix | All Trims | All Engines |
| 2005-2008 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
