Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 68301 |

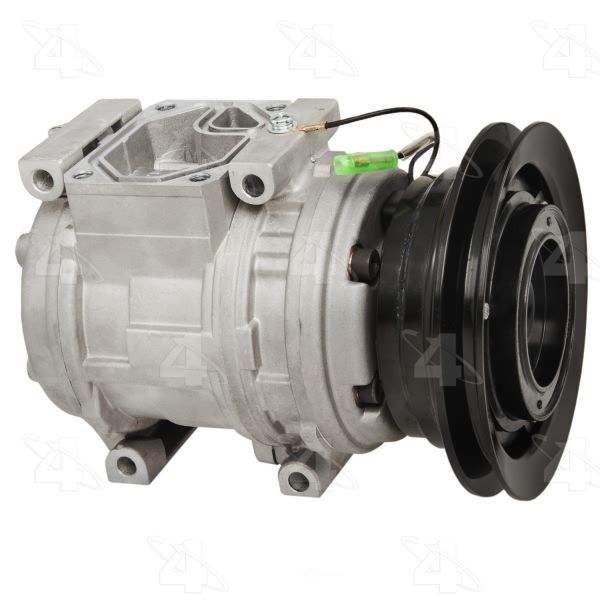

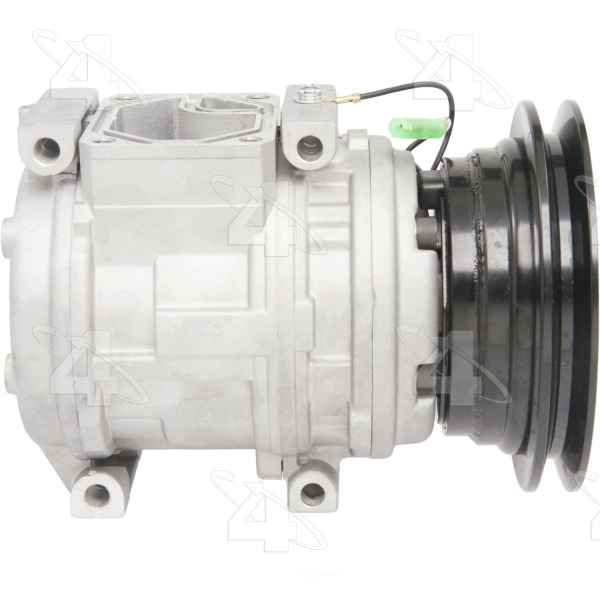

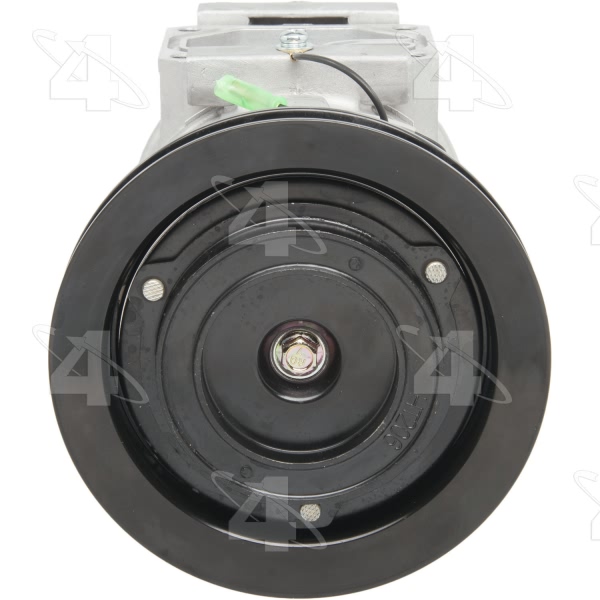

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.625 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10PA15C |
| Discharge Port Type | Pad Mount |
| Distance From Clutch To Mounting Flange | 2.953125 |
| Mount Distance MM | 74.930 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 142.748 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.625 |
| Pulley Outside Diameter | 5.625 |
| Pulley Ridge Diameter | 5.625 |
| Refrigerant Type | R134a |
| Suction Port Type | Pad Mount |
| Terminal Type | Butt |
| UPC | 096361683013 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1989 Dodge Raider | All Trims | All Engines |
| 1989-1991 Mitsubishi Montero | All Trims | All Engines |
| 1988-1994 Toyota Pickup | All Trims | 6 Cyl 3.0L |
| 1993 Toyota T100 | All Trims | All Engines |
| 1994 Toyota T100 | All Trims | 6 Cyl 3.0L |
