Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 78305 |

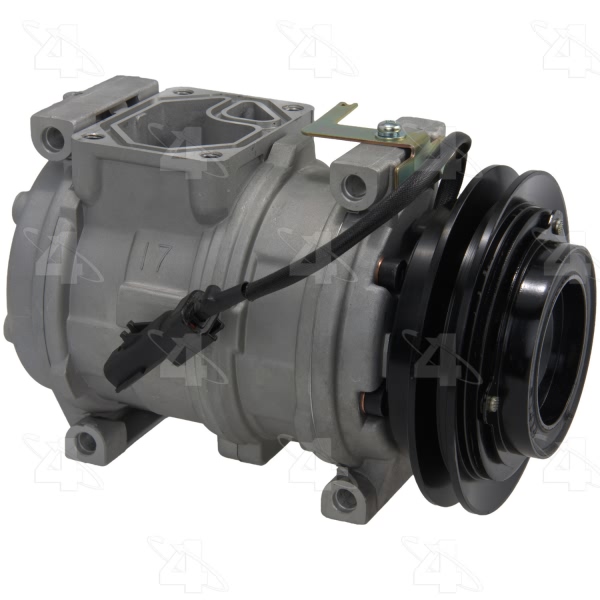

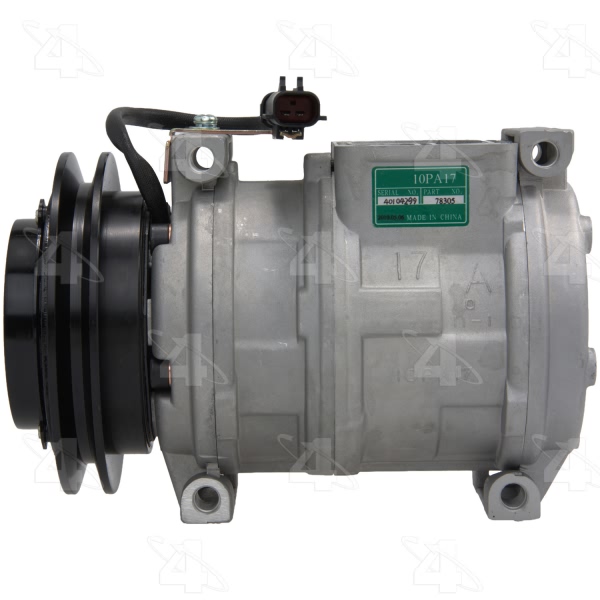

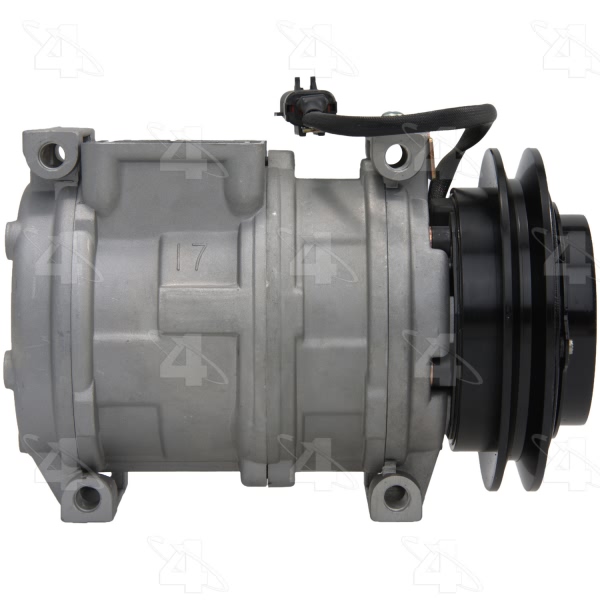

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Belt Width MM | 12.700 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10PA17C |

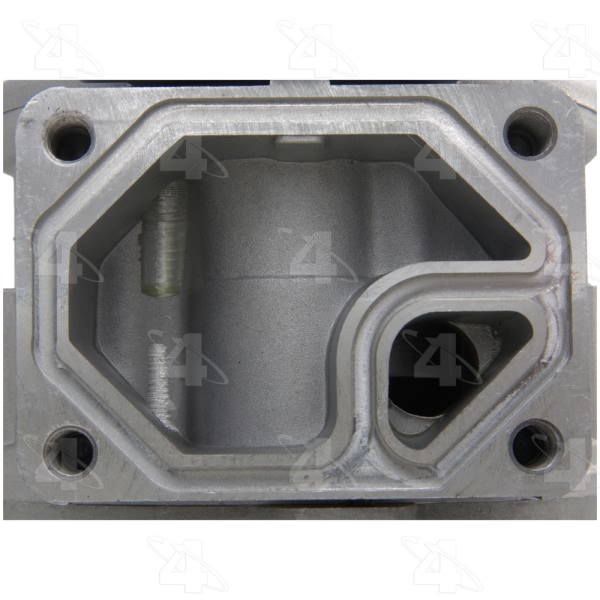

| Discharge Port Type | Pad Mount |
| Distance From Clutch To Mounting Flange | 0.953125 |
| Mount Distance MM | 24.384 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |

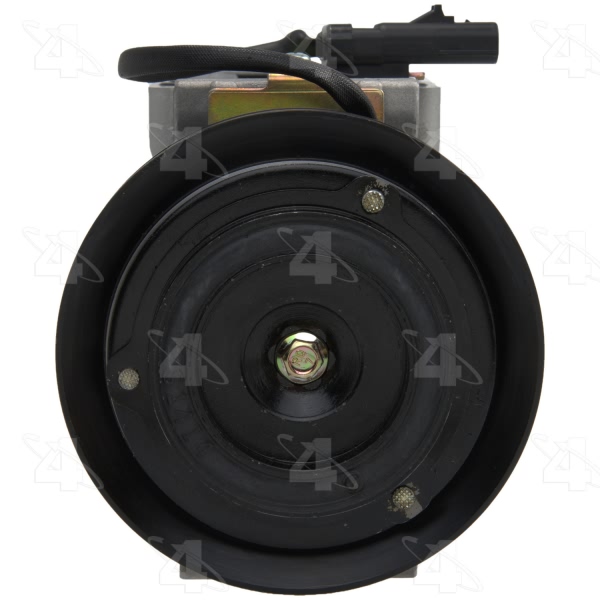

| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 133.350 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.250 |
| Pulley Outside Diameter | 5.250 |
| Pulley Ridge Diameter | 5.250 |
| Refrigerant Type | R134a |
| Suction Port Type | Pad Mount |

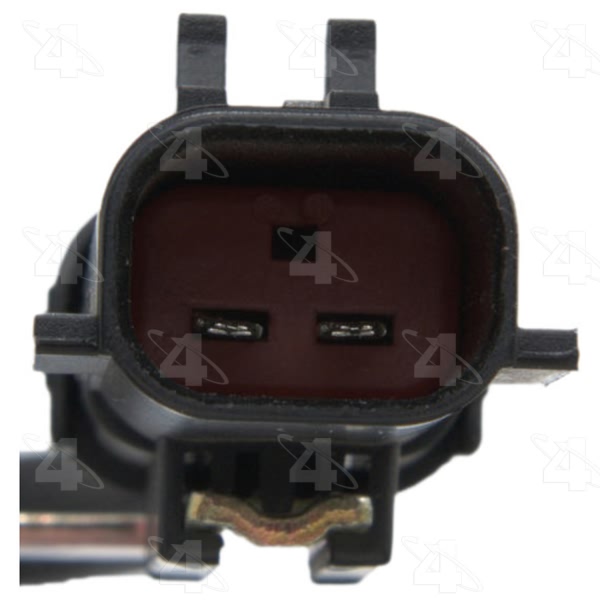

| Terminal Type | pin |
| UPC | 096361783058 |
| w/ Diode | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.0L |
| 2000 Chrysler Voyager | All Trims | 6 Cyl 3.0L |
| 1996-2000 Dodge Caravan | All Trims | 6 Cyl 3.0L |
| 1996-2000 Dodge Grand Caravan | All Trims | 6 Cyl 3.0L |
| 1996-2000 Plymouth Grand Voyager | All Trims | 6 Cyl 3.0L |
| 1996-2000 Plymouth Voyager | All Trims | 6 Cyl 3.0L |
