Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 78324 |

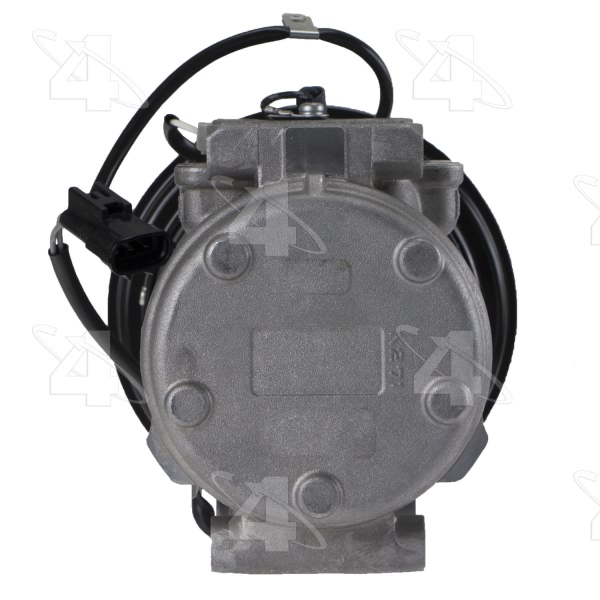

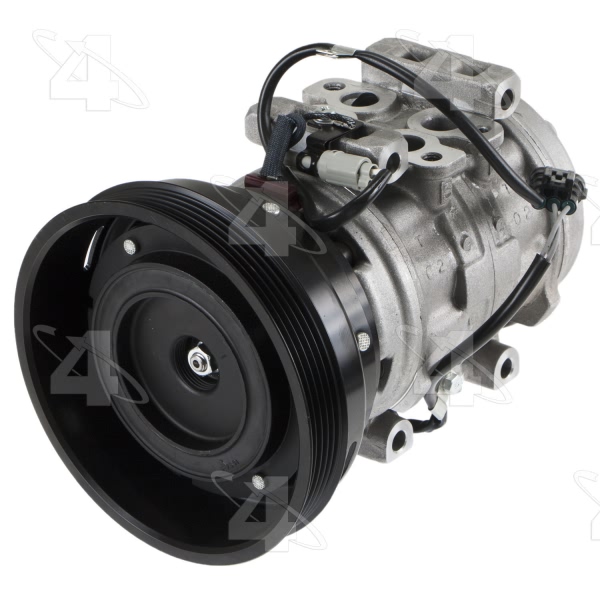

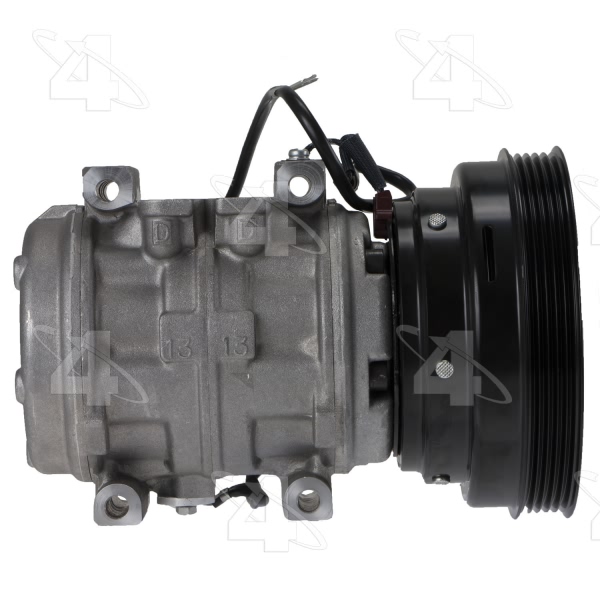

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10p13C |
| Distance From Clutch To Mounting Flange | 3.09375 |
| Mount Distance MM | 78.740 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | 24613 |
| O-Ring A Quantity | 4 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |

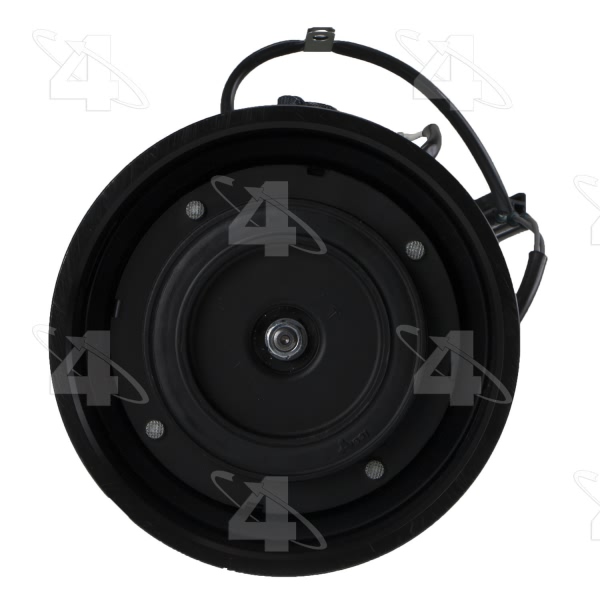

| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 5.875 |
| Pulley Outside Diameter | 5.875 |
| Pulley Ridge Diameter | 5.875 |
| Refrigerant Type | R134a |

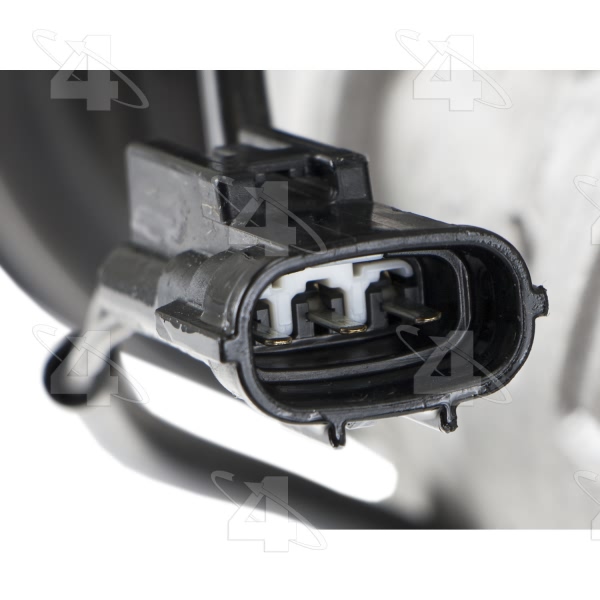

| Terminal Type | Pin |
| UPC | 096361030558 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996-1997 Toyota RAV4 | All Trims | All Engines |
