Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 98297 |

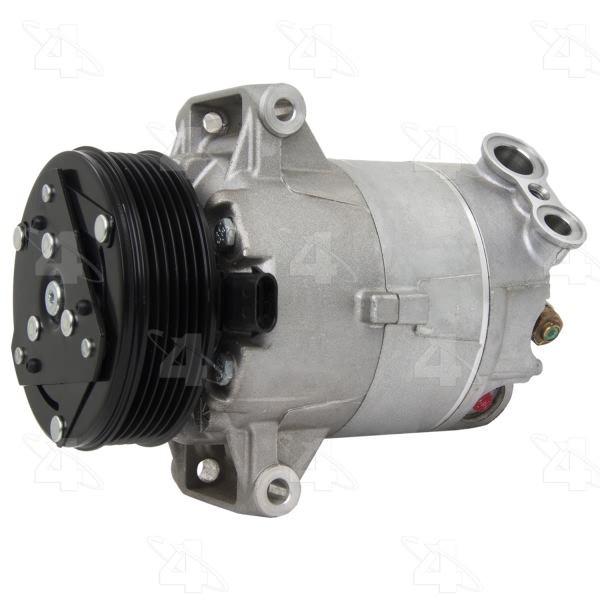

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.171875 |
| Coil Clock Position | 3 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | CVC |

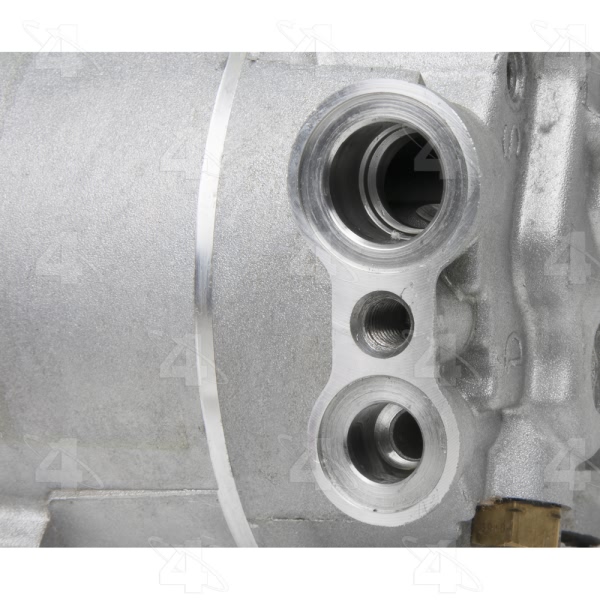

| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 1.1875 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 105.918 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.171875 |
| Pulley Outside Diameter | 4.171875 |
| Pulley Ridge Diameter | 4.171875 |
| Refrigerant Type | R134a |
| Terminal Type | Pin |
| UPC | 096361982970 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005 Chevrolet Cobalt | SS | 4 Cyl 2.0L |
| 2006 Chevrolet Cobalt | All Trims | 4 Cyl 2.0L |
| 2007 Chevrolet Cobalt | All Trims | All Engines |
| 2004-2007 Saturn Ion | All Trims | 4 Cyl 2.0L |
