Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 98302 |

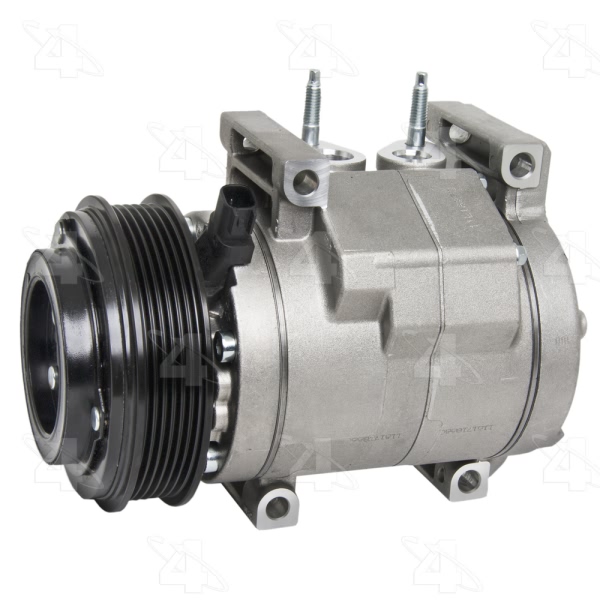

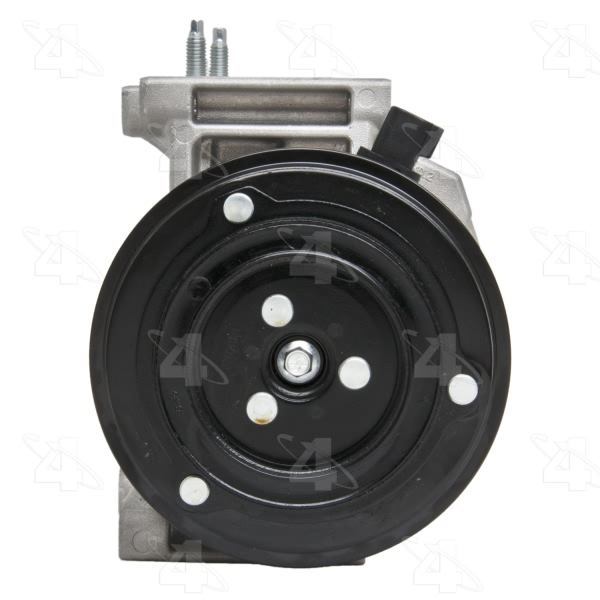

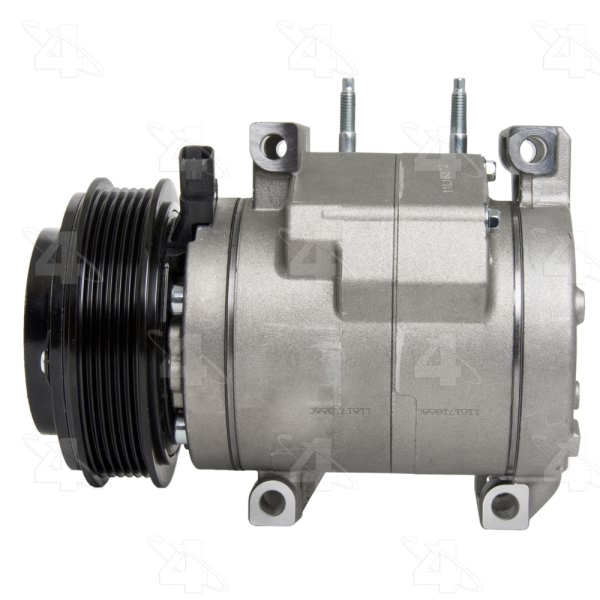

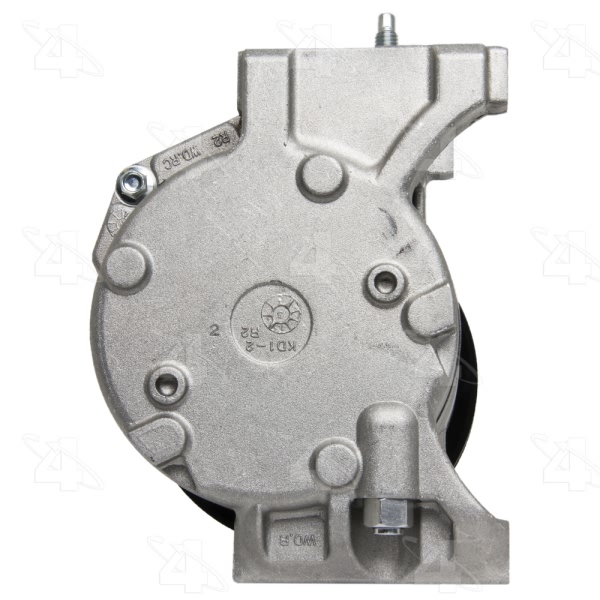

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.6875 |
| Coil Clock Position | 1 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HCC-RS20 |

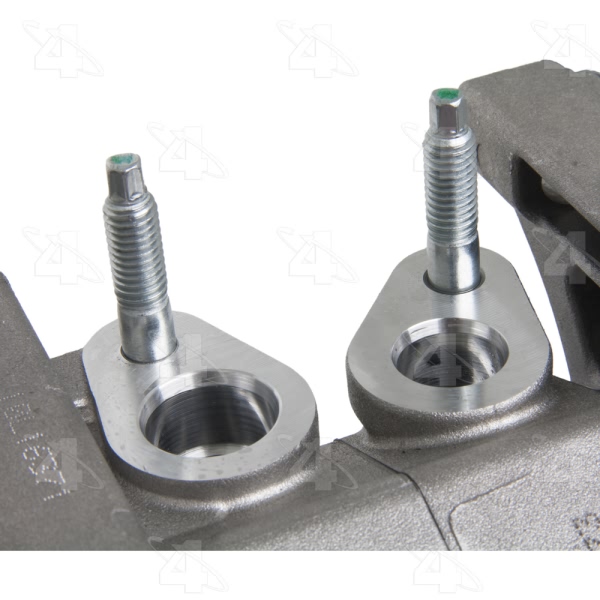

| Discharge Port Type | O-Ring / Gasket |
| Distance From Clutch To Mounting Flange | 1.53125 |
| Mount Distance MM | 39.000 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24068] / Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24069] / Gasket |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 118.872 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.6875 |
| Pulley Outside Diameter | 4.6875 |
| Pulley Ridge Diameter | 4.6875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring / Gasket |

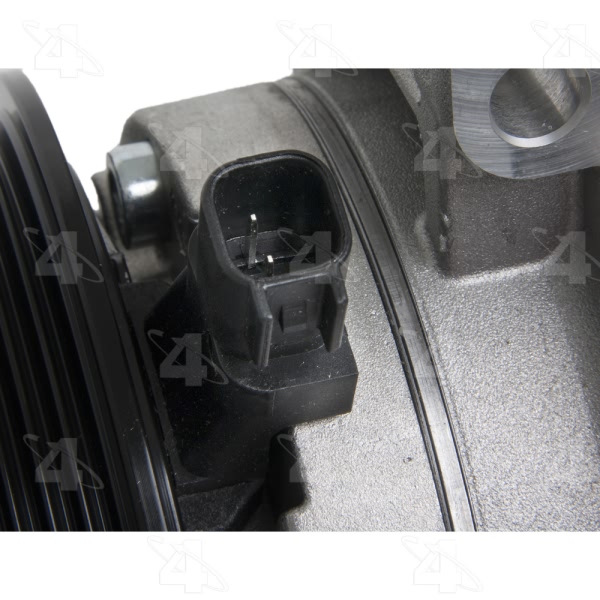

| Terminal Type | Pin |
| UPC | 096361983021 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2015 Dodge Durango | All Trims | 6 Cyl 3.6L |
