Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 98392 |

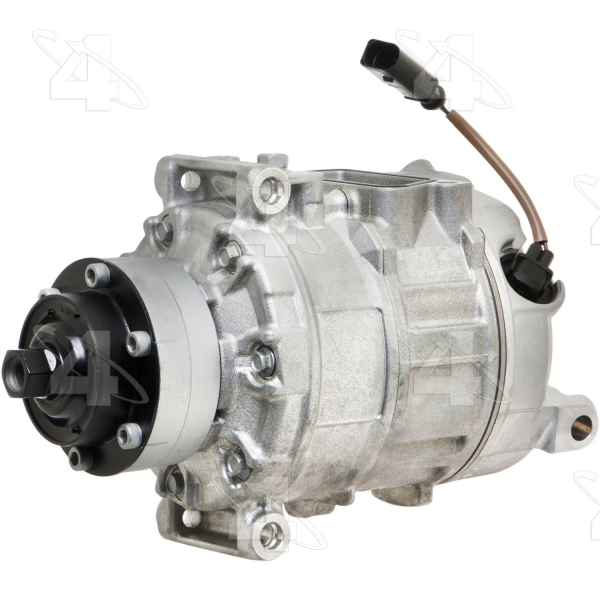

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | Direct Drive |
| Coil Clock Position | NR |
| Coil Type | Coil Less |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SEU17C |

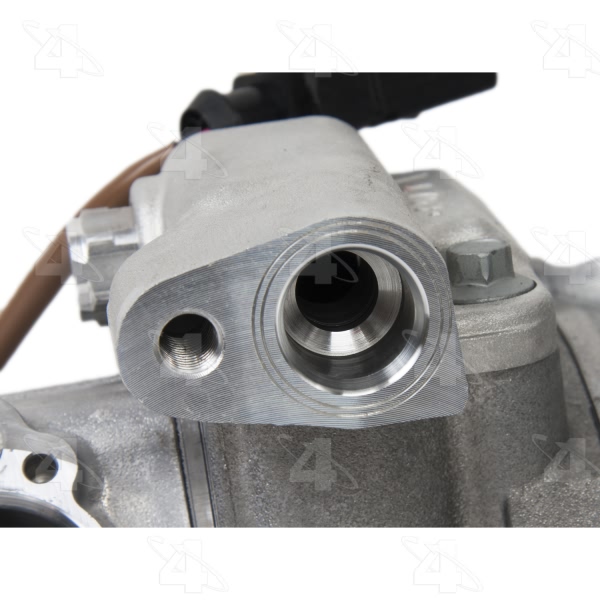

| Discharge Port Type | O-Ring |

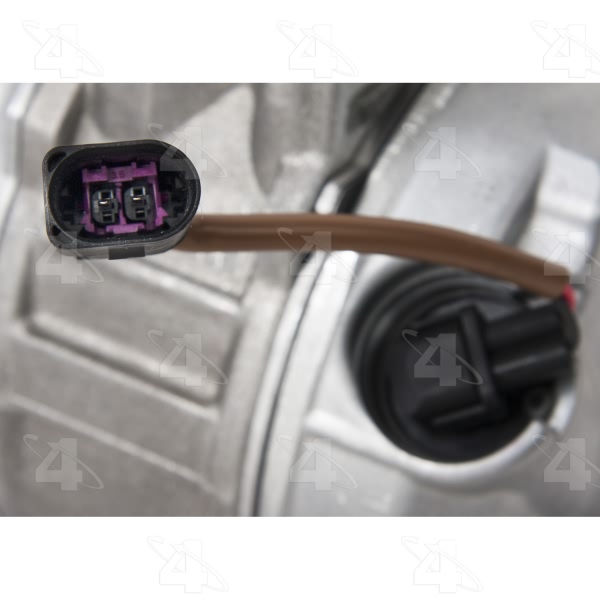

| ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
| Mounting Hardware | Not Included |
| Mounting Type | One on Rear Head |
| New or Reman | New |
| O-Ring A Number/Desc | [24659] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24635] / Green Round O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | NR |
| Pulley Diameter MM | w/o Clutch |
| Pulley Groove Quantity | NR |
| Pulley Lip Diameter | Direct Drive |
| Pulley Outside Diameter | Direct Drive |
| Pulley Ridge Diameter | Direct Drive |
| Refrigerant Type | R134a |

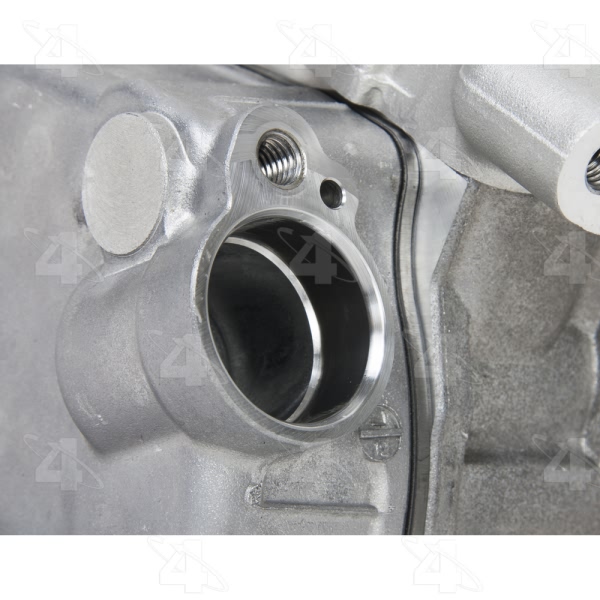

| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361983922 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006 Audi A6 | All Trims | 6 Cyl 3.2L |
| 2007 Audi A6 | All Trims | All Engines |
| 2005-2011 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
| 2006-2007 Audi A6 Quattro | All Trims | 6 Cyl 3.2L |
| 2007 Audi A8 Quattro | All Trims | 8 Cyl 4.2L |
| 2008 Audi A8 Quattro | All Trims | All Engines |
| 2009-2010 Audi A8 Quattro | All Trims | 8 Cyl 4.2L |
| 2012 Audi A8 Quattro | All Trims | 8 Cyl 4.2L |
| 2004-2005 Audi Allroad Quattro | All Trims | 8 Cyl 4.2L |
| 2007-2010 Audi Q7 | All Trims | 8 Cyl 4.2L |
