Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 98591 |

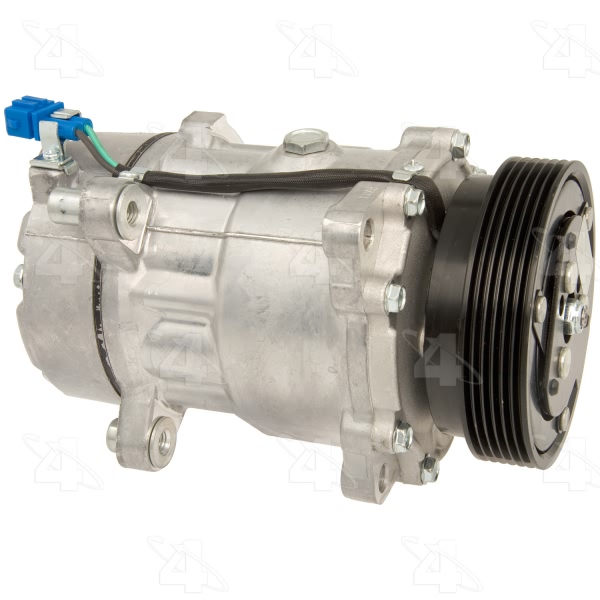

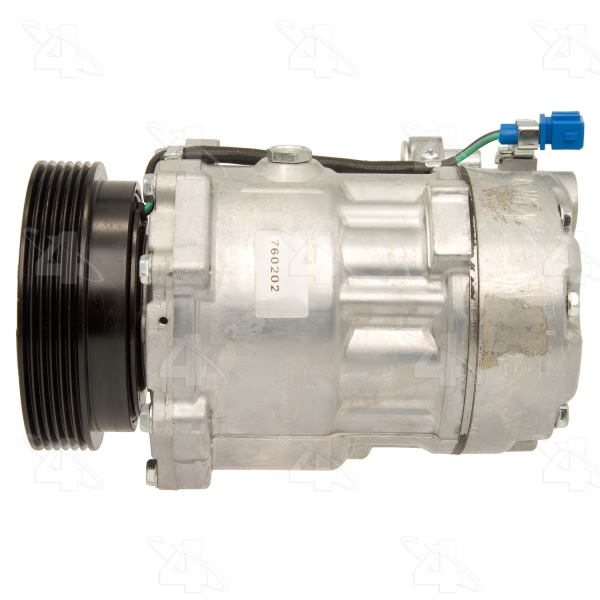

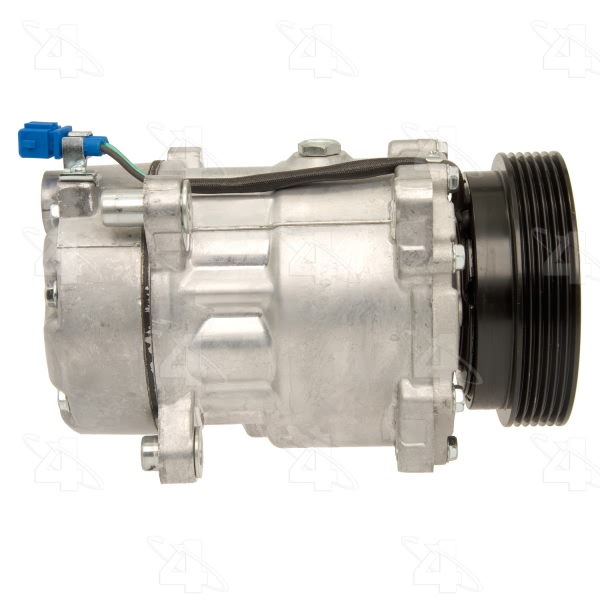

| Part Description | A C Compressor With Clutch |
| Belt Width IN | 0.750 |
| Belt Width MM | 19.050 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.625 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |

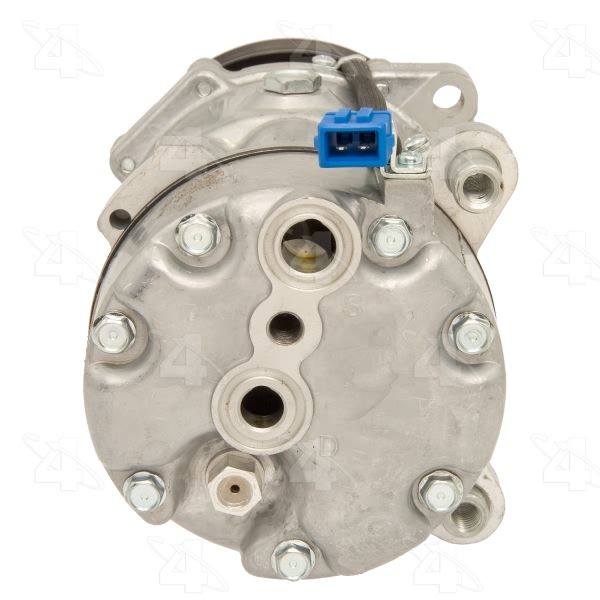

| Comp Head Prt Config | Rear-Vert O-Ring |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Head Type | QD/VQ |
| Compressor Type | SD7V16 |

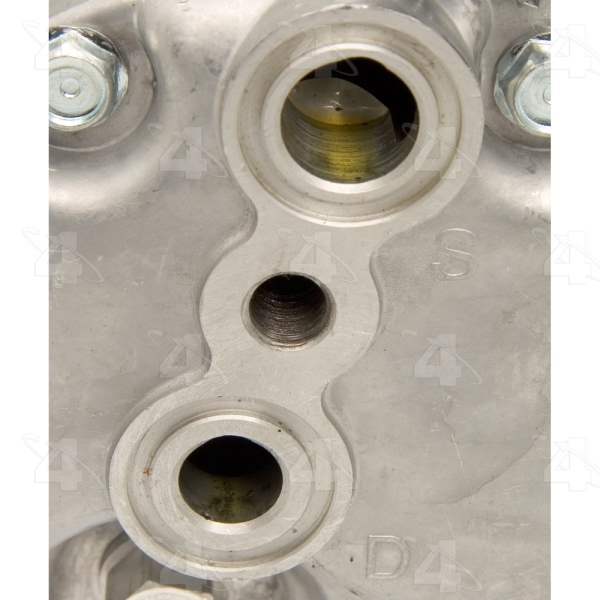

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.40625 |
| Mount Distance MM | 35.560 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24626] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |

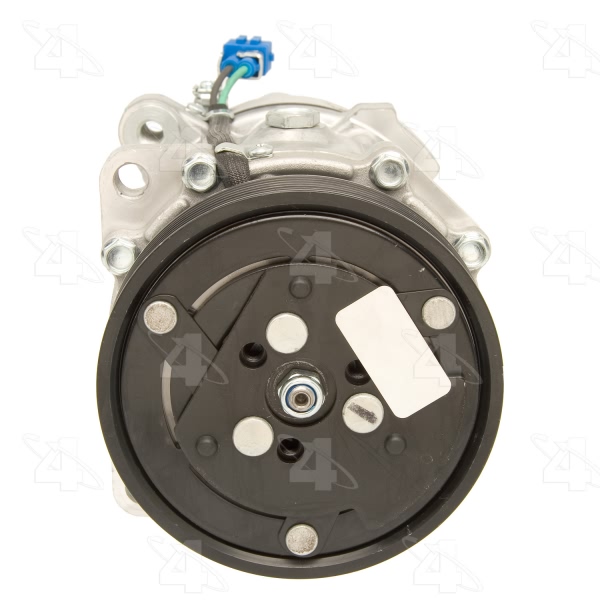

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 117.475 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.625 |
| Pulley Outside Diameter | 4.625 |
| Pulley Ridge Diameter | 4.625 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |

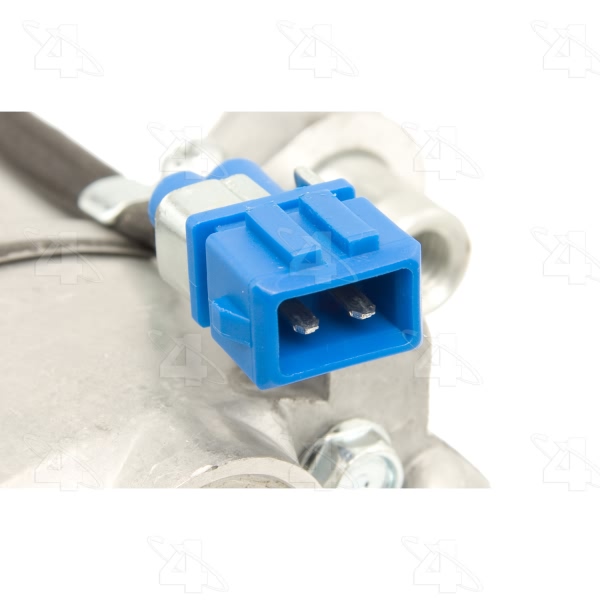

| Terminal Type | Pin |
| UPC | 096361985919 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-2002 Volkswagen Cabrio | All Trims | All Engines |
| 1993-1998 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
| 1993-1999 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
| 1997-1998 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
| 1993 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
| 1995-1996 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
| 1996-1997 Volkswagen Passat | All Trims | 4 Cyl 1.9L |
