Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 168301 |

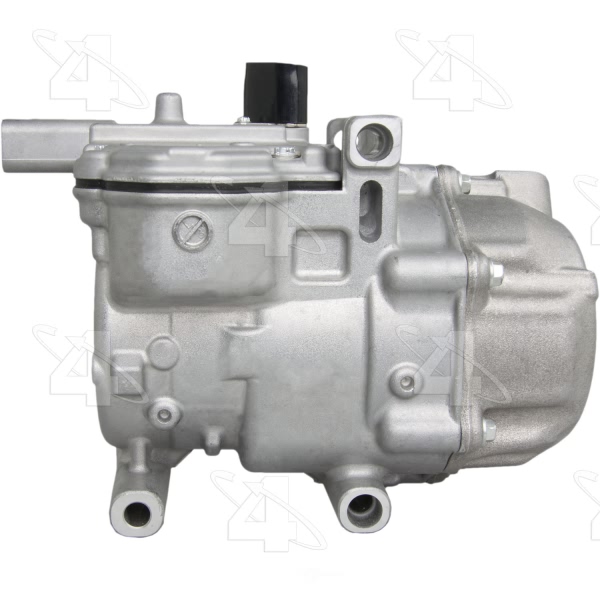

| Part Description | A C Compressor Without Clutch |
| Clutch Included | No |
| Coil Clock Position | NR |
| Coil Voltage | NR |
| Compatible Refrigerant Oil Type | POE (Hybrid) Oil |
| Compressor Type | ES14C |
| Discharge Port Type | O-Ring |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | NR |
| Pulley Groove Quantity | NR |
| Refrigerant Type | R134a |

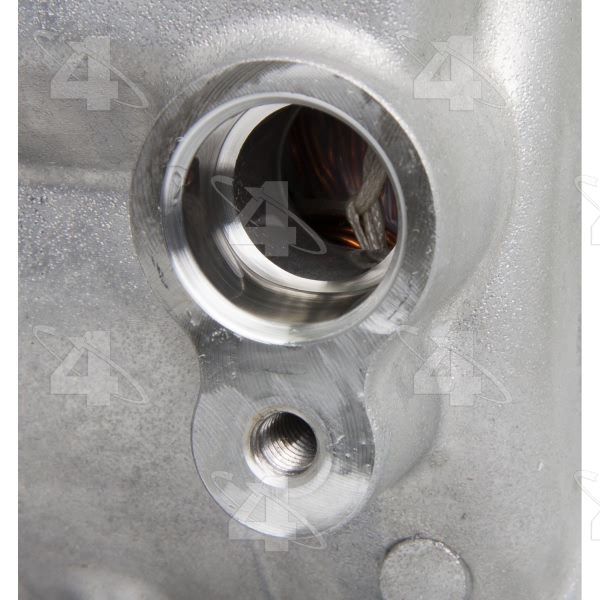

| Suction Port Type | O-Ring |
| UPC | 096361623286 |
| Voltage | No Voltage Information Available |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2012 Toyota Prius | All Trims | All Engines |
| 2012 Toyota Prius Plug-In | All Trims | All Engines |
| 2012 Toyota Prius V | All Trims | All Engines |
