Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 76066 |

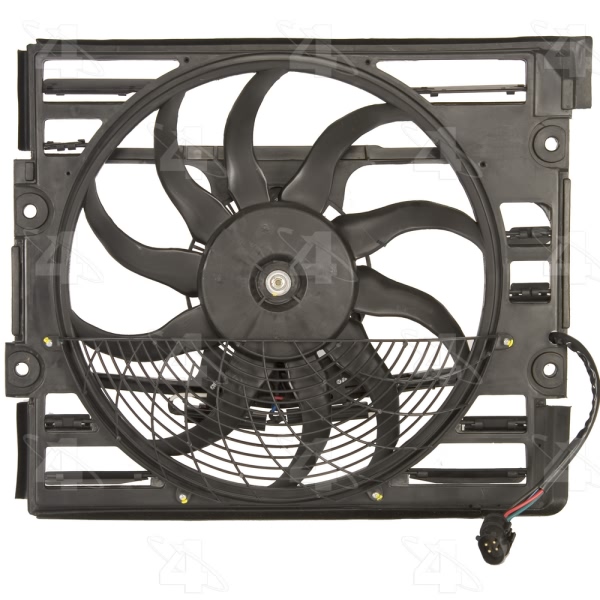

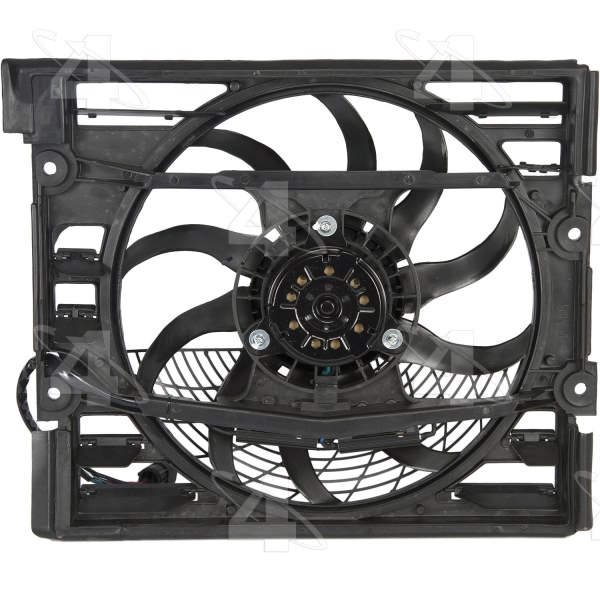

| Part Description | A C Condenser Fan Assembly |
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Male |
| Connector qty | 1 |
| Connector Shape | Rectangle |
| Connector Type | 4 lead wires w/ connector |
| Electrical or Mechanical | Electrical |
| Fan 1 Blade Quantity | 10 |
| Fan 2 Blade Quantity | 10 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 1 |
| Height IN | 19.750 |
| Height MM | 444.500 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Mount Location | Condenser Fan |
| Mount Type | OE mount |
| Mounting Hardware | Not Included |
| O.E. Replacement | Yes |
| Package Depth IN | 24.000 |
| Package Depth MM | 609.600 |
| Package Height IN | 4.750 |
| Package Height MM | 120.650 |
| Package Length IN | 19.250 |
| Package Length MM | 488.950 |
| Performance Rated | Yes |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| UPC | 096361760660 |
| Voltage | 12 |
| Width IN | 24.500 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-1998 BMW 740i | All Trims | All Engines |
| 1996-1998 BMW 740iL | All Trims | All Engines |
| 1996-1998 BMW 750iL | All Trims | All Engines |
