Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 55524 |

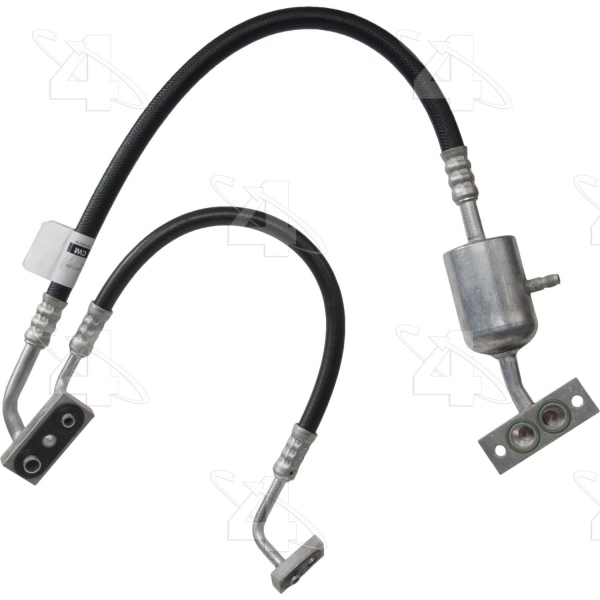

| Part Description | A C Discharge And Liquid Line Hose Assembly |
| Bracket | w/o Bracket |
| Discharge End Type | Block |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line Style | Block |
| Manifold | w/ Manifold |
| Material | Aluminum / Rubber |
| Muffler | w/ Muffler |
| O-Ring A Number/Desc | [24139] / Condenser Block Fitting Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24124] / Filter Drier Flange Port Gasket |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24684] / Green O-Ring |
| O-Ring C Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | Not Included |
| Refrigerant Type | R134a |
| Service Port | w/ Service Port |
| Style | Hose Assy /Discharge, Liquid |
| Suction End Size | No. 10 |
| Suction End Style | Block |
| Suction End Type | Block |
| Switch Port Quantity | 1 |
| Switch Port Size | 3/8" - 24 |
| Switch Service Port | w/ Switch Port |
| System Pressure | High Pressure |
| UPC | 096361555242 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1984-1987 Dodge D100 | All Trims | 8 Cyl 5.2L |
| 1984-1987 Dodge D100 | All Trims | 8 Cyl 5.9L |
| 1988 Dodge D100 | All Trims | All Engines |
| 1982-1988 Dodge D150 | All Trims | 8 Cyl 5.2L |
| 1982-1988 Dodge D150 | All Trims | 8 Cyl 5.9L |
| 1988 Dodge D150 | All Trims | 6 Cyl 3.9L |
| 1988 Dodge D150 | All Trims | All Engines |
| 1982 Dodge D250 | All Trims | 8 Cyl 5.9L |
| 1982-1987 Dodge D250 | All Trims | 8 Cyl 5.2L |
| 1984-1987 Dodge D250 | All Trims | 8 Cyl 5.9L |
