Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 54277 |

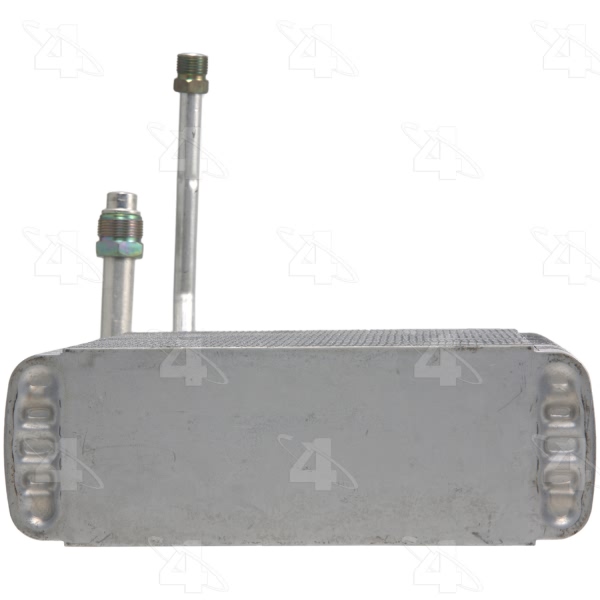

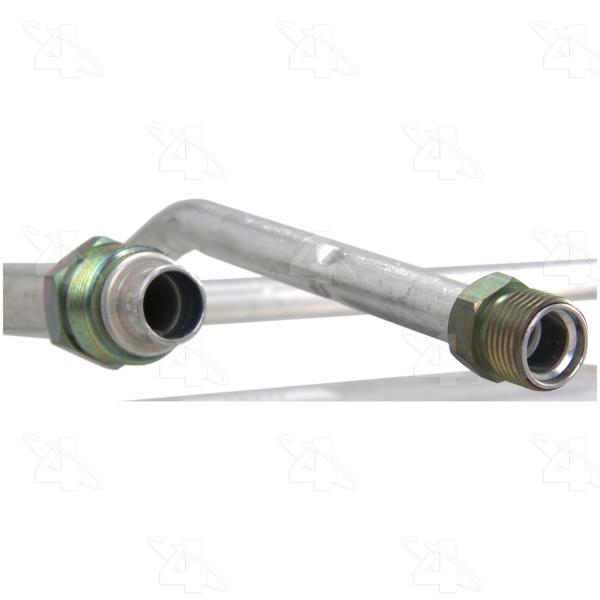

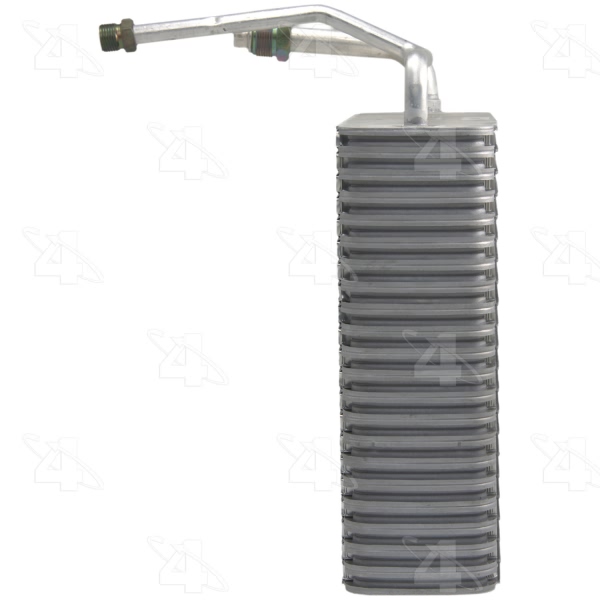

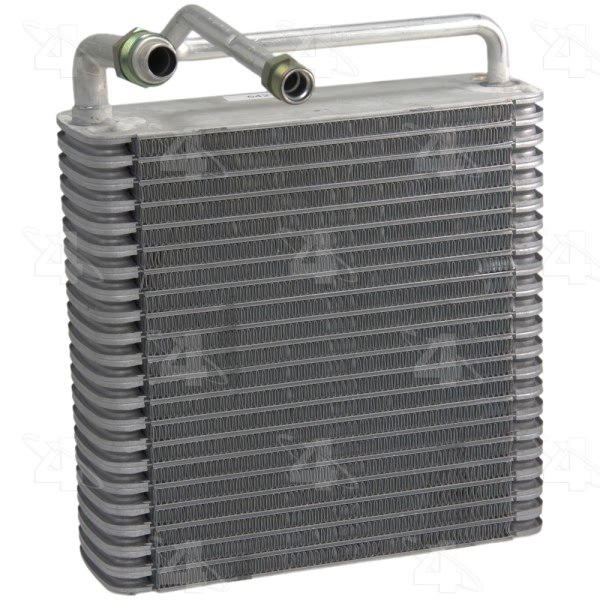

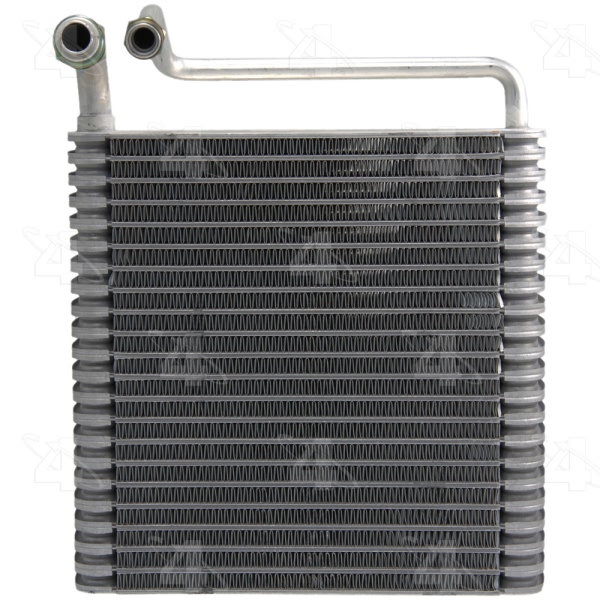

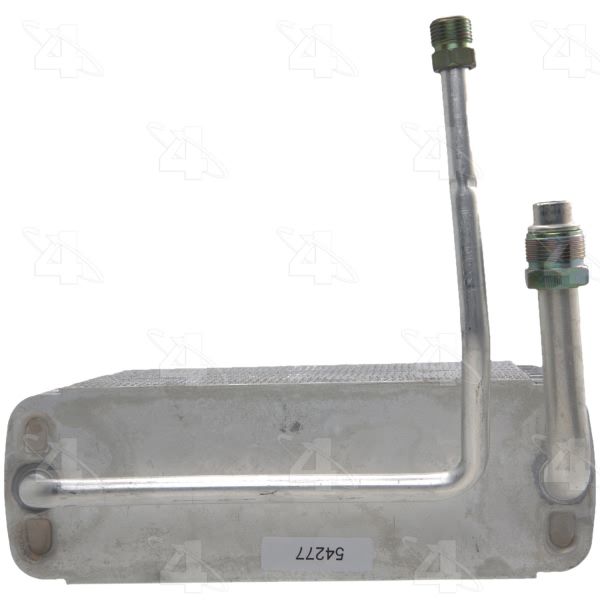

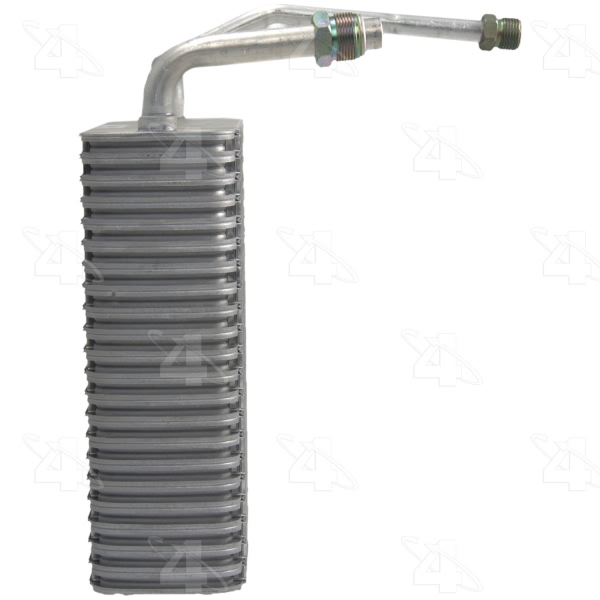

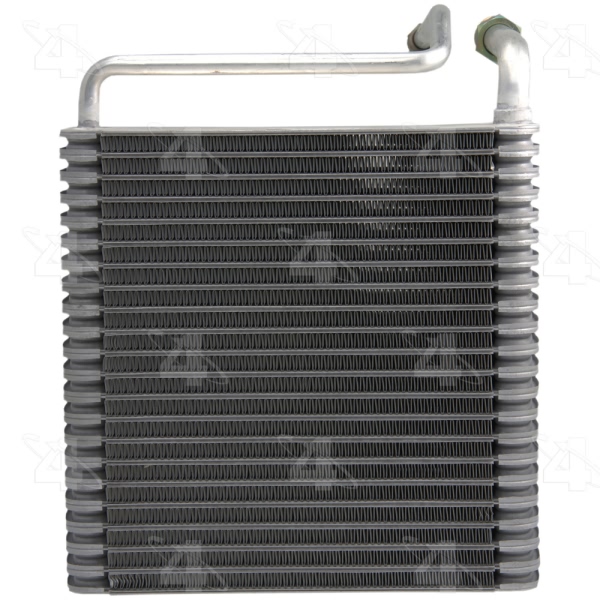

| Part Description | A C Evaporator Core |
| Core Depth Fraction | 3-5/8 |
| Core Depth MM | 92.075 |
| Core Height Fraction | 10 |
| Core Height MM | 254.000 |
| Core Width Fraction | 7-3/4 |
| Core Width MM | 196.850 |
| Depth | 3.625 |
| Height | 10.000 |
| Material | Aluminum |
| O-Ring C Number/Desc | [24608] / Green O-Ring |
| O-Ring C Quantity | 1 |
| O-Ring D Number/Desc | [24612] / Green O-Ring |
| O-Ring D Quantity | 1 |
| O-Ring E Number/Desc | [38623] / Orifice Tube |
| O-Ring E Quantity | 1 |
| Outlet Fitting Outside Diameter | No. 12 |
| UPC | 096361542778 |
| Width | 7.750 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1978-1987 Buick Regal | All Trims | 6 Cyl 3.8L |
| 1979-1980 Buick Regal | All Trims | 8 Cyl 4.9L |
| 1979-1980 Buick Regal | All Trims | 8 Cyl 5.0L |
| 1980-1981 Buick Regal | All Trims | 8 Cyl 4.3L |
| 1981-1983 Buick Regal | All Trims | 8 Cyl 5.7L |
| 1982-1983 Buick Regal | All Trims | 6 Cyl 4.3L |
| 1984-1987 Buick Regal | All Trims | 8 Cyl 5.0L |
| 1985 Buick Regal | All Trims | 6 Cyl 4.3L |
| 1985 Buick Regal | All Trims | 8 Cyl 5.7L |
| 1978-1981 Chevrolet El Camino | All Trims | All Engines |
