Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 54521 |

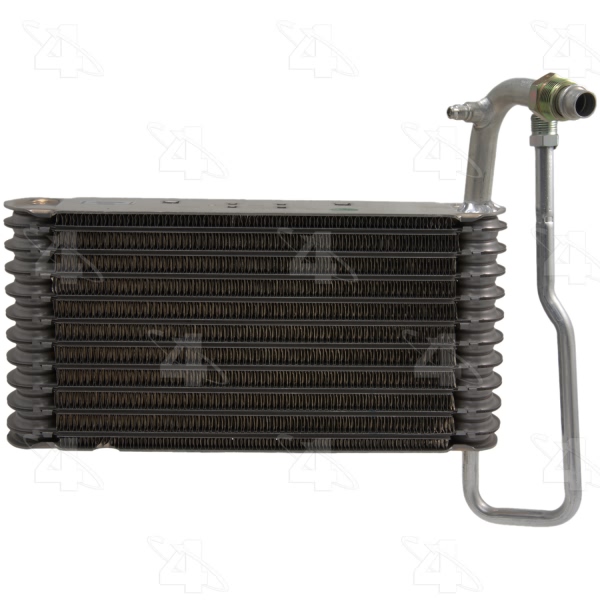

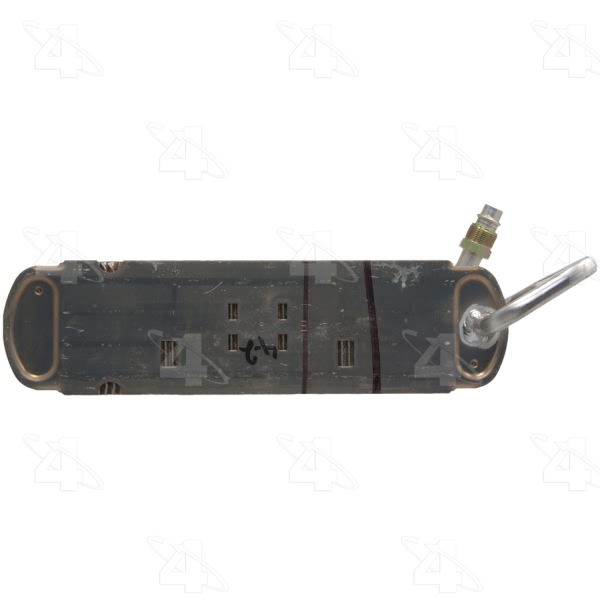

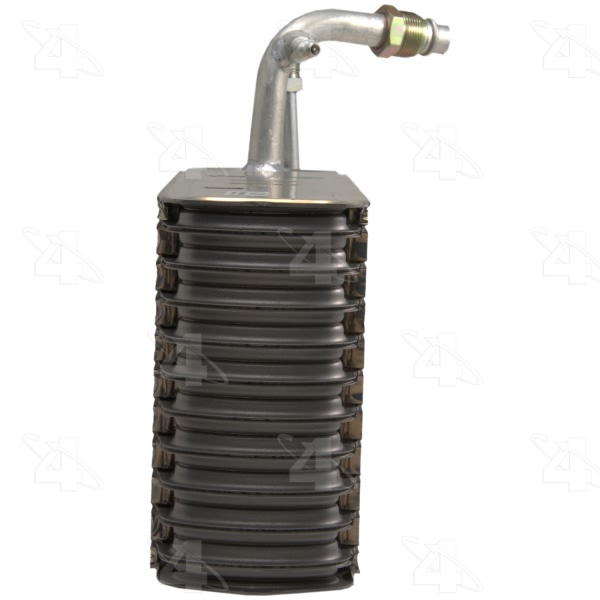

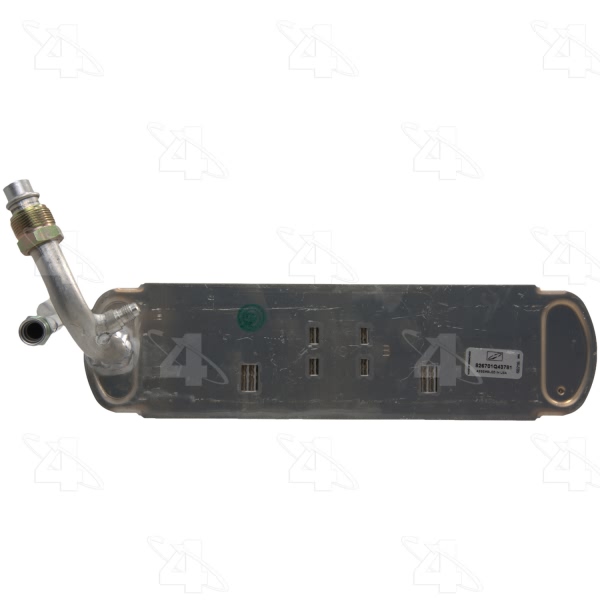

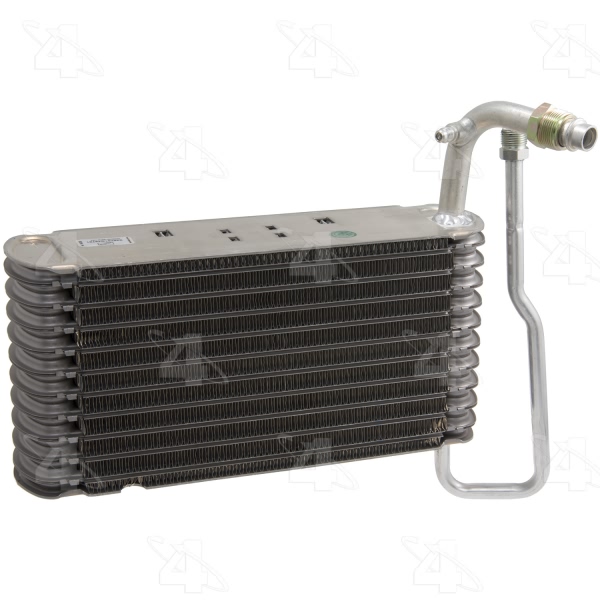

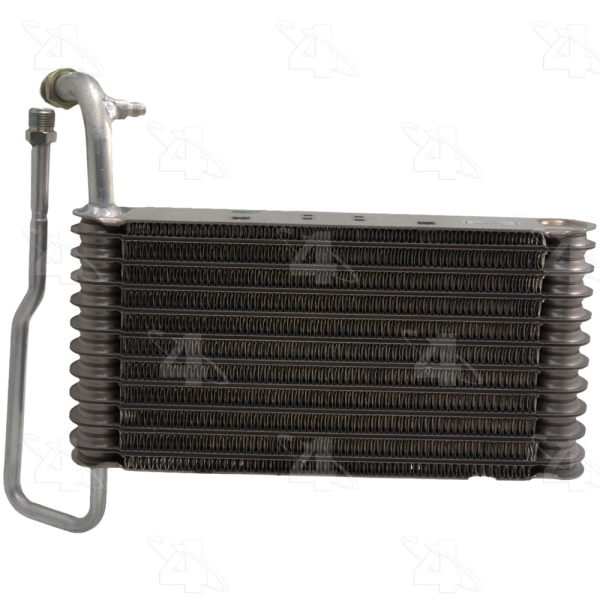

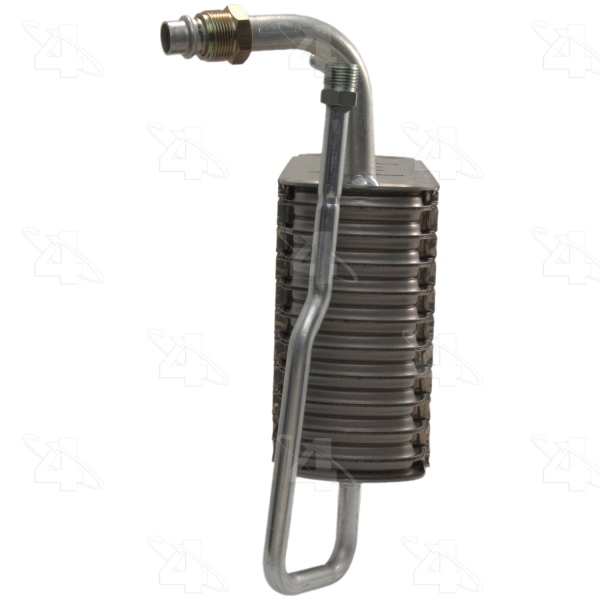

| Part Description | A C Evaporator Core |
| Core Depth Fraction | 3-1/2 or 3-5/8 or 3-9/16 |
| Core Depth MM | 88.900 or 90.487 or 92.075 |
| Core Height Fraction | 6-1/2 or 6-1/4 |
| Core Height MM | 158.750 or 165.100 |
| Core Width Fraction | 10-1/2 or 13-5/8 or 13-7/16 |
| Core Width MM | 266.700 or 341.313 or 346.075 |
| Depth | 3.500 or 3.563 or 3.625 |
| Height | 6.250 or 6.500 |
| Material | Aluminum |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24612] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [38623] / Orifice Tube |
| O-Ring C Quantity | 1 |

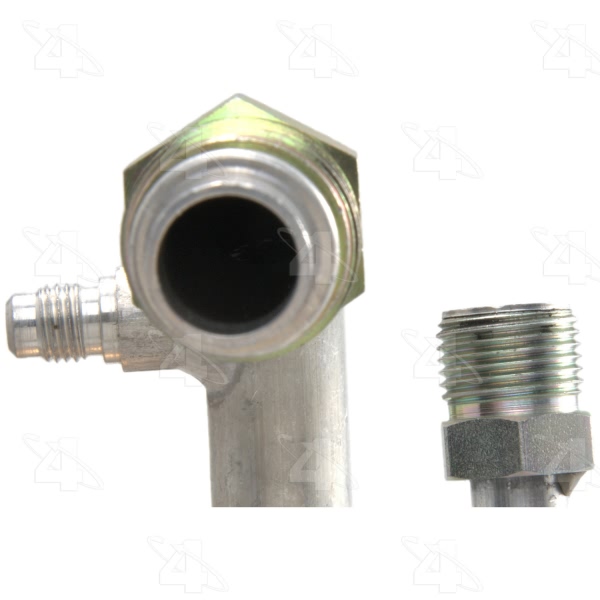

| Outlet Fitting Outside Diameter | No. 12 |
| UPC | 096361545212 |
| Width | 10.500 or 13.4375 or 13.625 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1982-1985 Buick Century | All Trims | 6 Cyl 3.0L |
| 1982-1985 Buick Century | All Trims | 6 Cyl 4.3L |
| 1984-1986 Buick Century | All Trims | 6 Cyl 3.8L |
| 1982-1985 Chevrolet Celebrity | All Trims | 6 Cyl 4.3L |
| 1982-1985 Oldsmobile Cutlass Ciera | All Trims | 6 Cyl 3.0L |
| 1982-1985 Oldsmobile Cutlass Ciera | All Trims | 6 Cyl 4.3L |
| 1985-1986 Oldsmobile Cutlass Ciera | All Trims | 6 Cyl 3.8L |
| 1982-1985 Pontiac 6000 | All Trims | 6 Cyl 4.3L |
