Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 54541 |

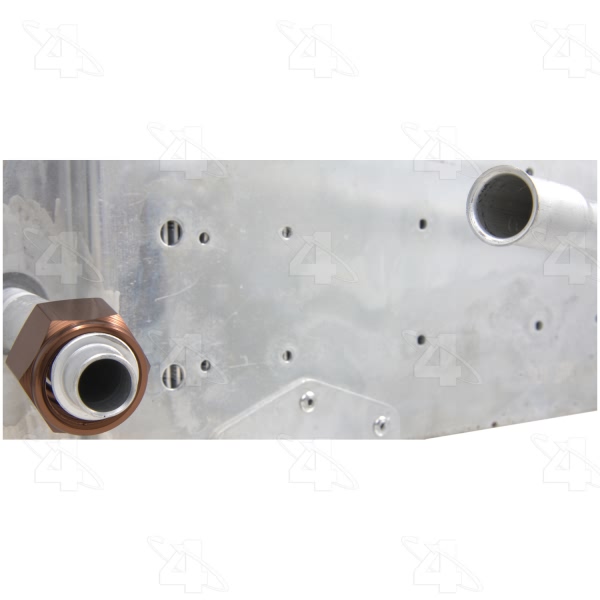

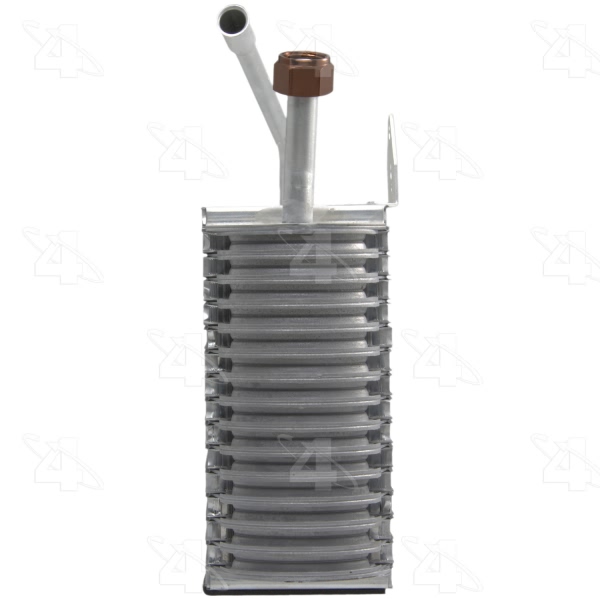

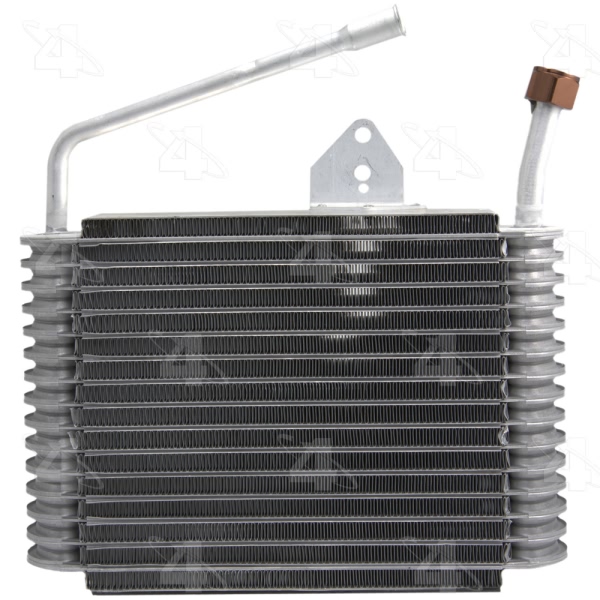

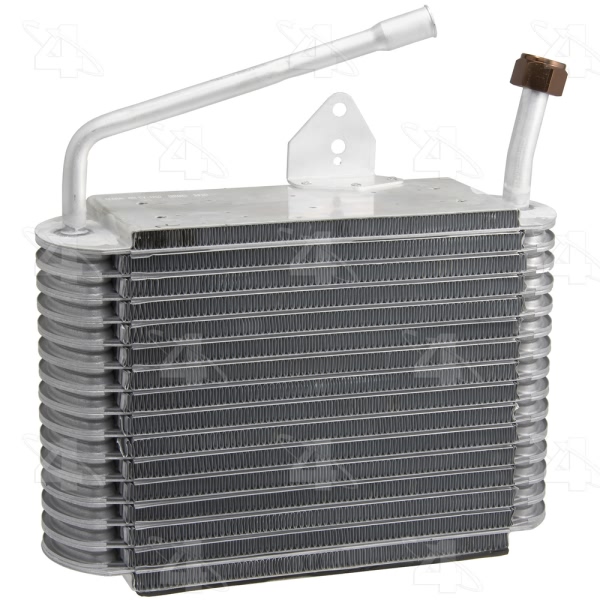

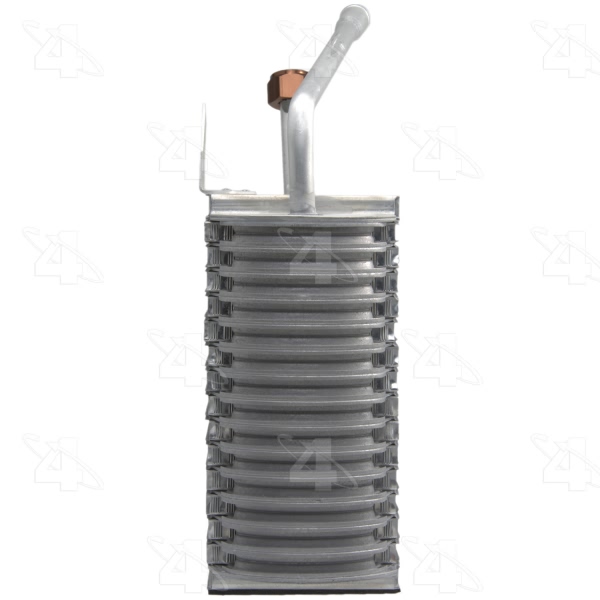

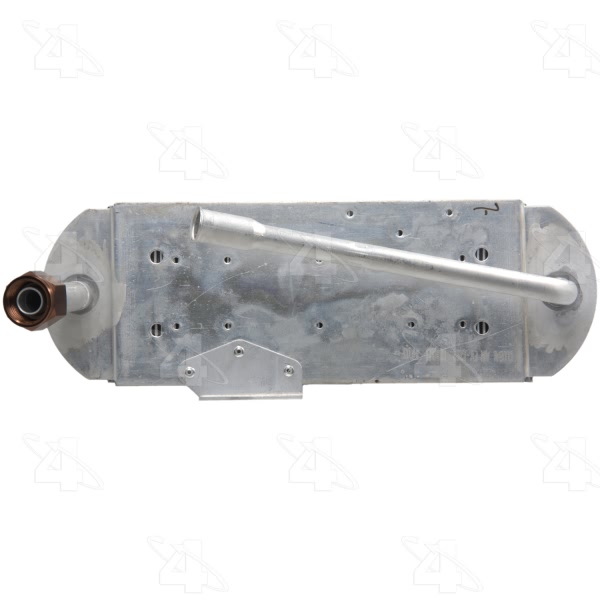

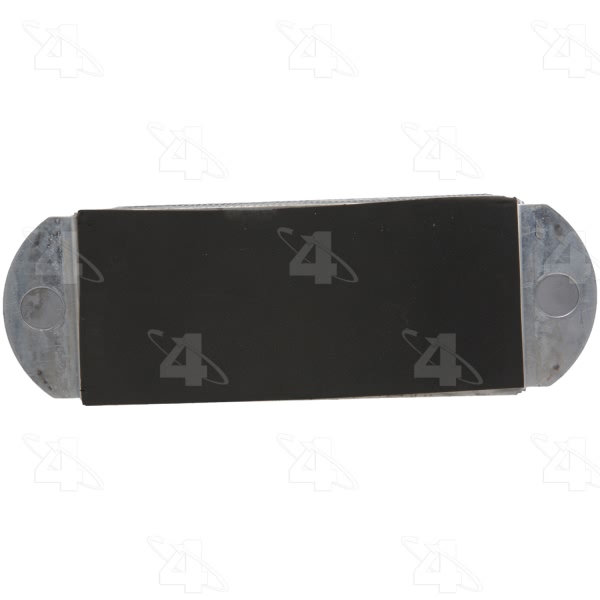

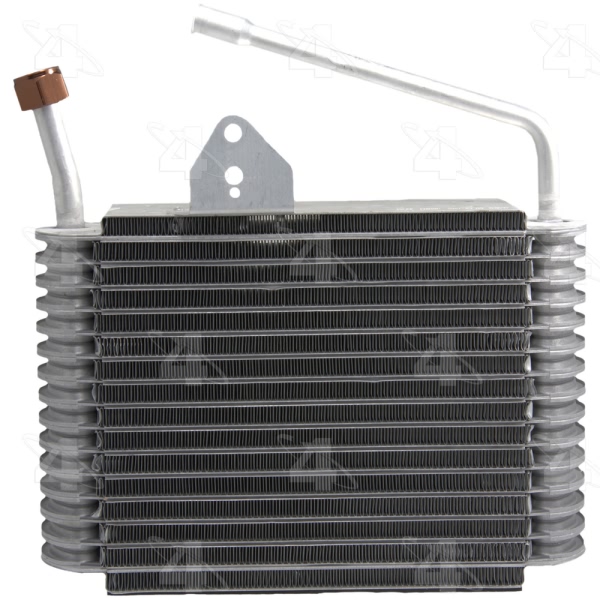

| Part Description | A C Evaporator Core |
| Core Depth Fraction | 4 |
| Core Depth MM | 101.600 |
| Core Height Fraction | 7-11/16 or 8-1/16 |
| Core Height MM | 195.262 or 204.787 |
| Core Width Fraction | 12 or 9 |
| Core Width MM | 228.600 or 304.800 |
| Depth | 4.000 |
| Height | 7.6875 or 8.0625 |
| Inlet Fitting Outside Diameter | No. 8 |
| Material | Aluminum |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [38621] / Orifice Tube |
| O-Ring C Quantity | 1 |
| Outlet Fitting Outside Diameter | No. 10 |
| UPC | 096361545410 |
| Width | 12.000 or 9.000 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1993 Ford Bronco | All Trims | All Engines |
| 1987-1993 Ford F-150 | All Trims | All Engines |
| 1987-1991 Ford F-200 | All Trims | All Engines |
| 1987-1993 Ford F-250 | All Trims | All Engines |
| 1987-1993 Ford F-350 | All Trims | All Engines |
