Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 54621 |

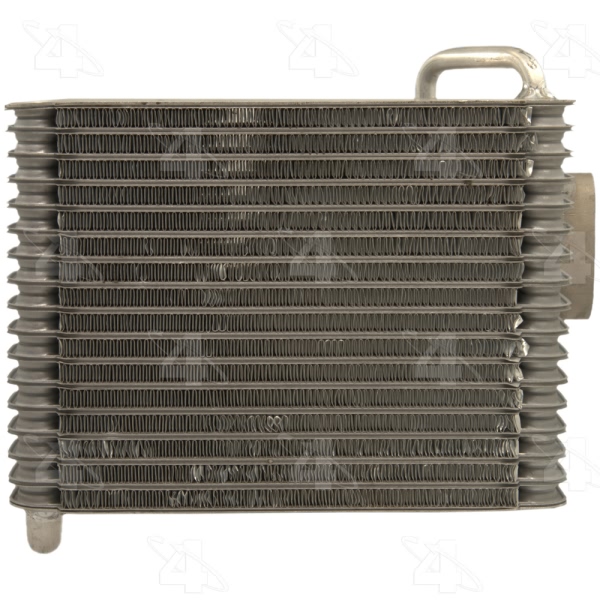

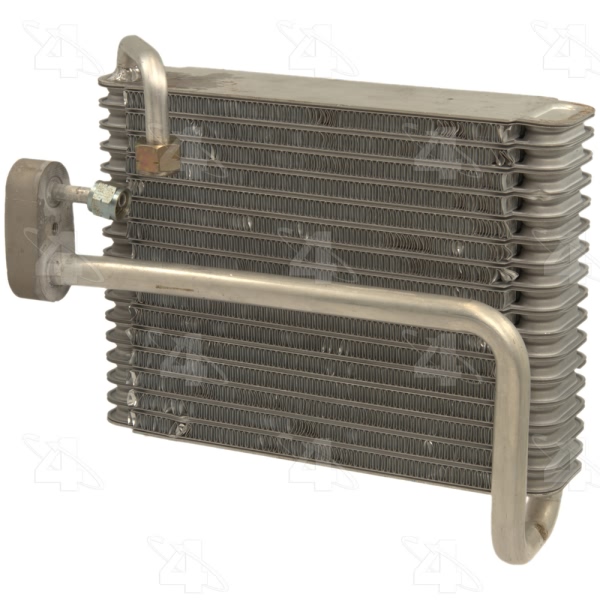

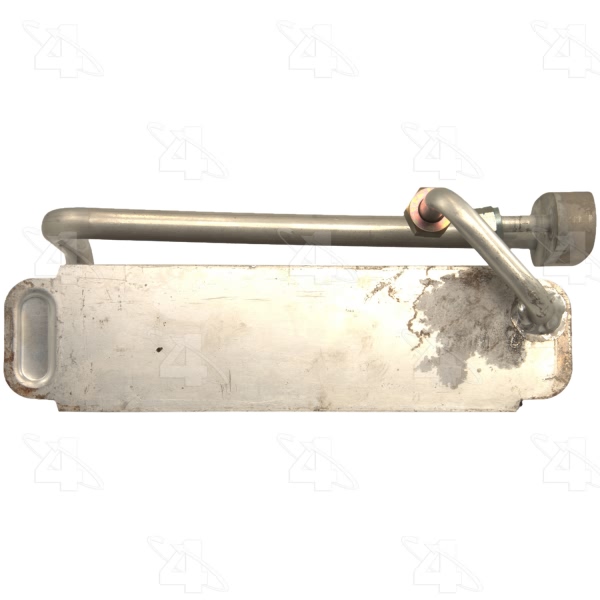

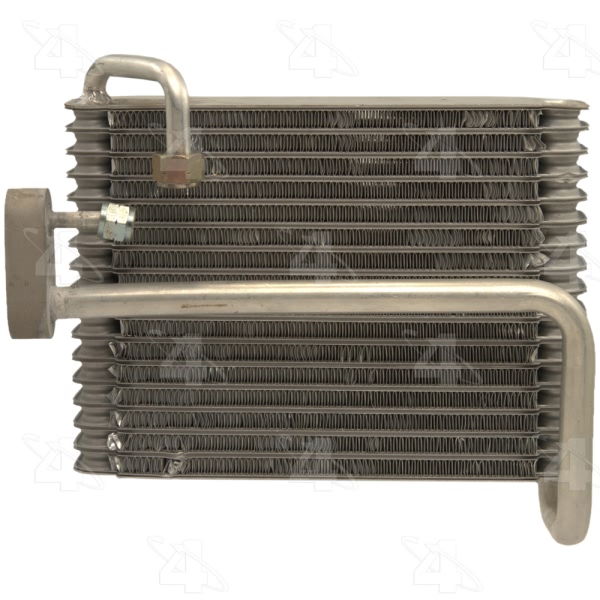

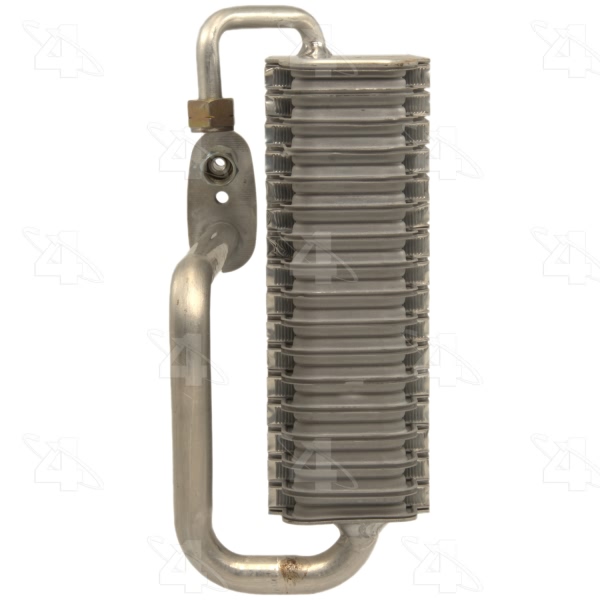

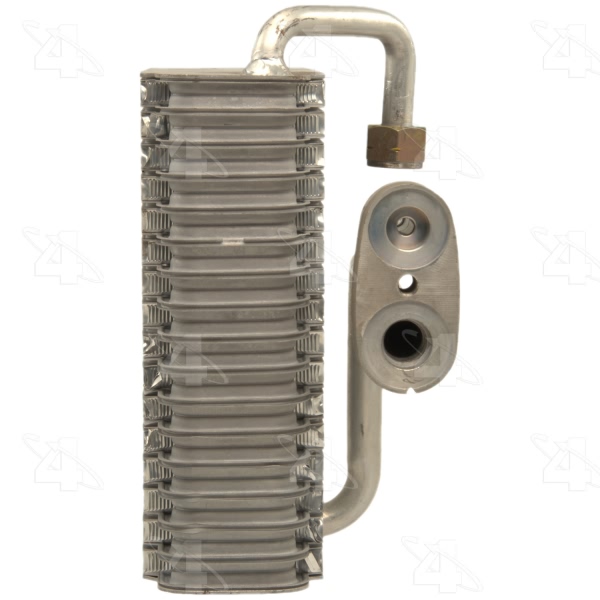

| Part Description | A C Evaporator Core |
| Core Depth Fraction | 2-7/8 |
| Core Depth MM | 73.025 |
| Core Height Fraction | 8 |
| Core Height MM | 203.200 |
| Core Width Fraction | 11-1/8 |
| Core Width MM | 282.575 |
| Depth | 2.875 |
| Height | 8.000 |
| Inlet Fitting Outside Diameter | No. 8 |
| Material | Aluminum |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24646] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24403] / Slimline Washer |
| O-Ring C Quantity | 1 |
| O-Ring D Number/Desc | [24404] / Slimline Washer |
| O-Ring D Quantity | 1 |
| Outlet Fitting Type | Block Fitting |
| UPC | 096361546219 |
| Width | 11.125 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-2014 Chevrolet Express 1500 | All Trims | All Engines |
| 1997-2014 Chevrolet Express 2500 | All Trims | All Engines |
| 2015 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
| 2015 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
| 2015 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
| 2016-2018 Chevrolet Express 2500 | All Trims | All Engines |
| 1997-2014 Chevrolet Express 3500 | All Trims | All Engines |
| 2015 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
| 2015 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L |
| 2015 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
