Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56760 |

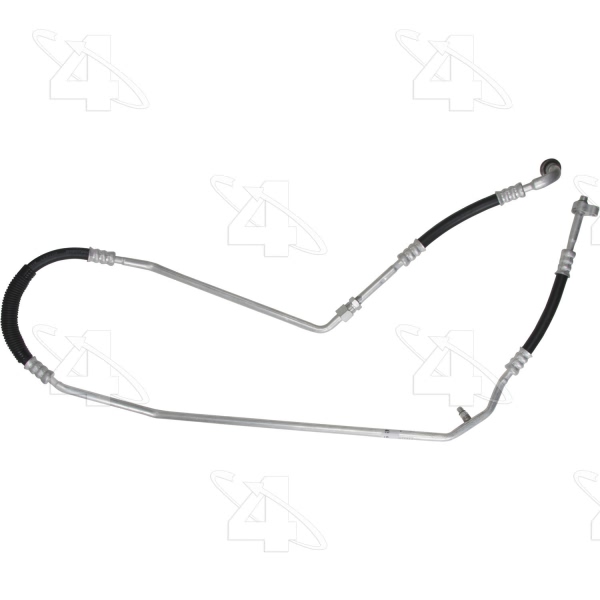

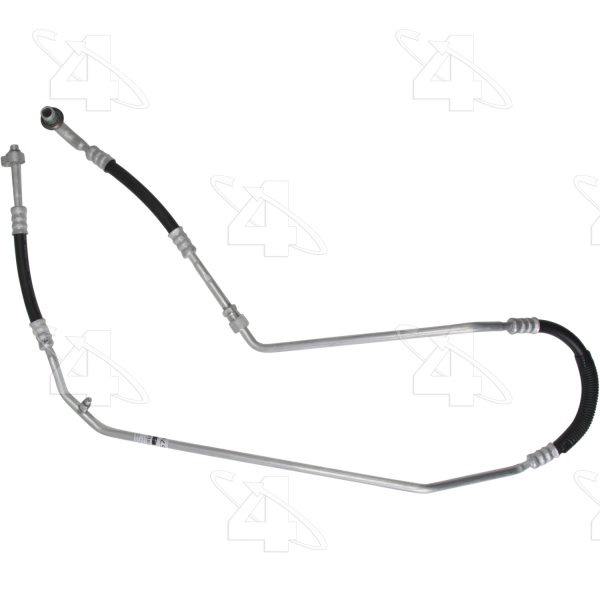

| Part Description | A C Liquid Line Hose Assembly |
| Bracket | w/o Bracket |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line MM | 0.625 |
| O-Ring A Number/Desc | [24661] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24670] / Green O-Ring |
| O-Ring B Quantity | 3 |
| O-Ring C Number/Desc | [24222] / Spring |
| O-Ring C Quantity | 1 |
| O-Ring D Number/Desc | [24650] / Green O-Ring |
| O-Ring D Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | w/ Orifice Tube |
| Refrigerant Type | R134a |
| Service Port | w/o Service Port |
| Style | Liquid Line Hose Assembly w/ Serviceable Orifice Tube |
| Suction End Type | P-Nut Fitting |
| Switch Port Quantity | 1 |
| Switch Port Size | M10x1.250 |
| Switch Service Port | w/ Switch Port |
| UPC | 096361567603 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Ford Focus | All Trims | 4 Cyl 2.3L |
| 2005 Ford Focus | All Trims | 4 Cyl 2.0L |
