Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56828 |
| Part Description | A C Liquid Line Hose Assembly |
| Bracket | w/o Bracket |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line Gender | Male |
| Liquid Line MM | 0.500 |
| Material | Aluminum |
| O-Ring A Number/Desc | [24668] / Green O-Ring |
| O-Ring A Quantity | 6 |
| O-Ring B Number/Desc | [24218] / Spring |
| O-Ring B Quantity | 2 |
| O.E. Replacement | Yes |
| Orifice Tube | w/ Captured Orifice Tube or w/ Orifice Tube |
| Refrigerant Type | R134-A |

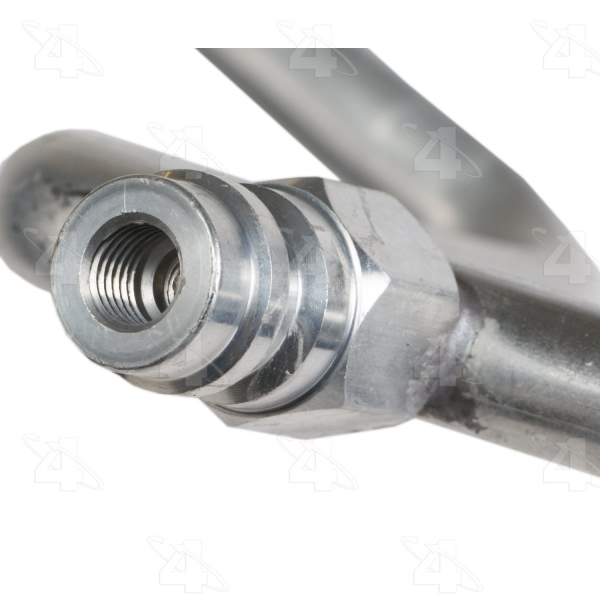

| Service Port | w/ Service Port |
| Service Port Size | 16 mm |
| Service Port Type | R134-A Quick Disconnect |
| Style | Liquid Line Hose Assembly w/ Captured Orifice Tube |
| Suction End Type | Male Springlock |
| Svc Port High Side | High Side |
| Switch Service Port | w/o Switch Port |
| UPC | 096361568280 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-2002 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
| 1994-2002 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
