Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 33430 |

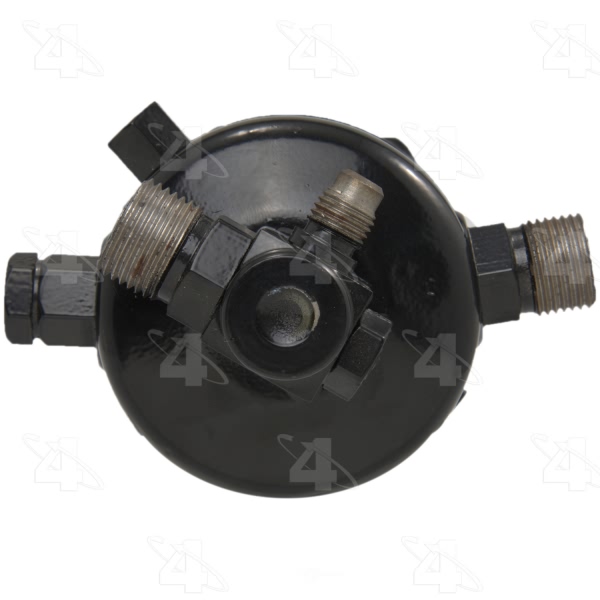

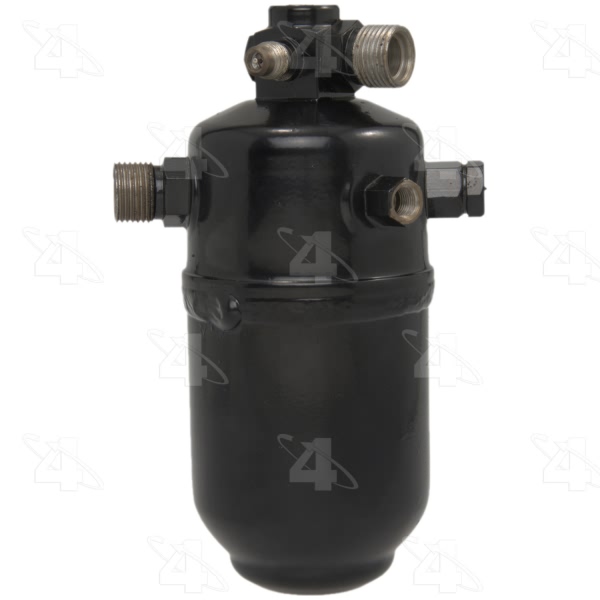

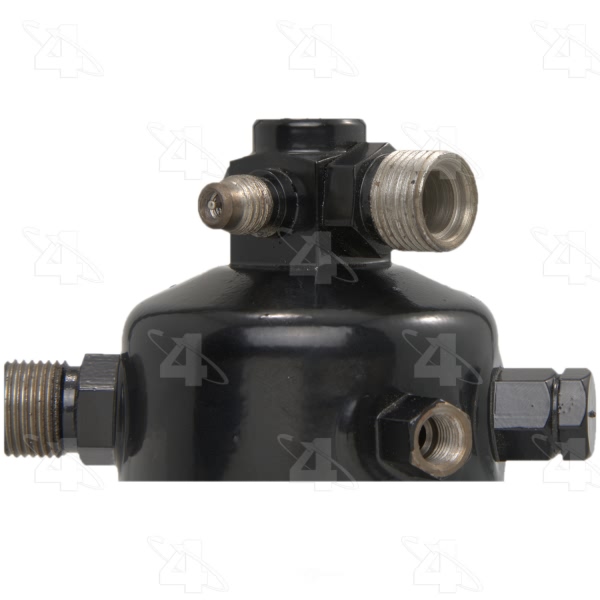

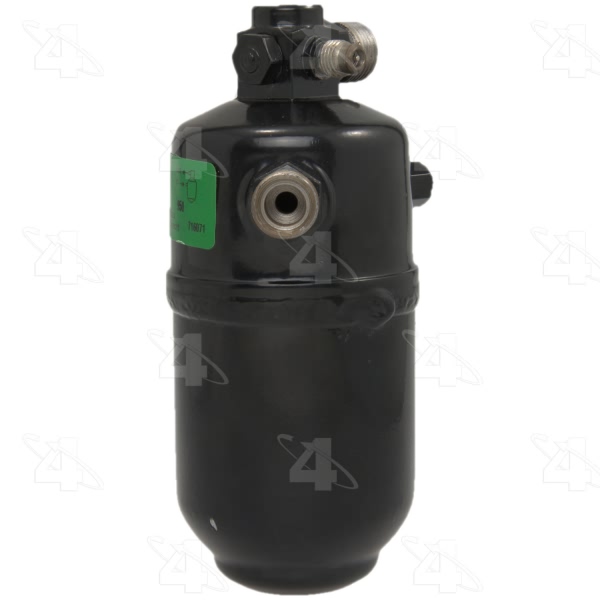

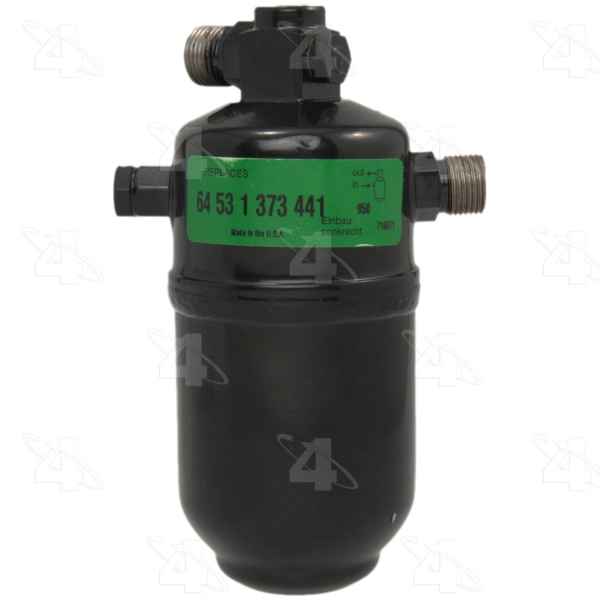

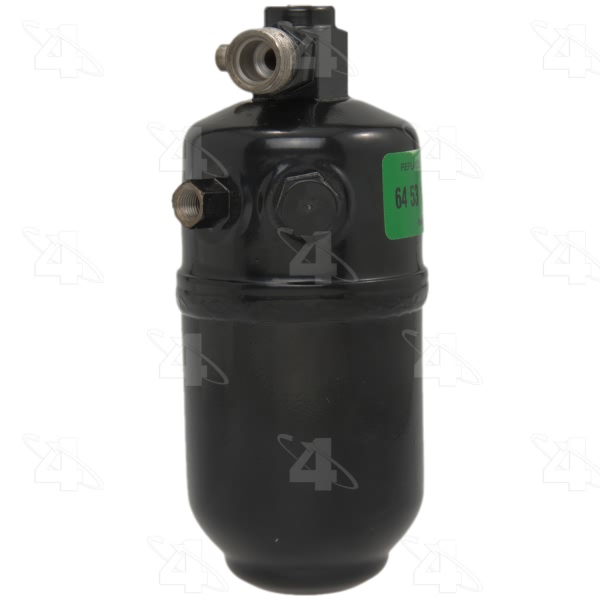

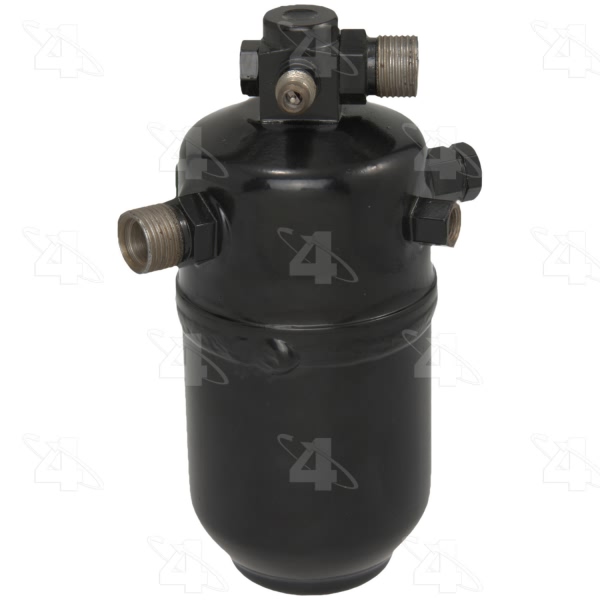

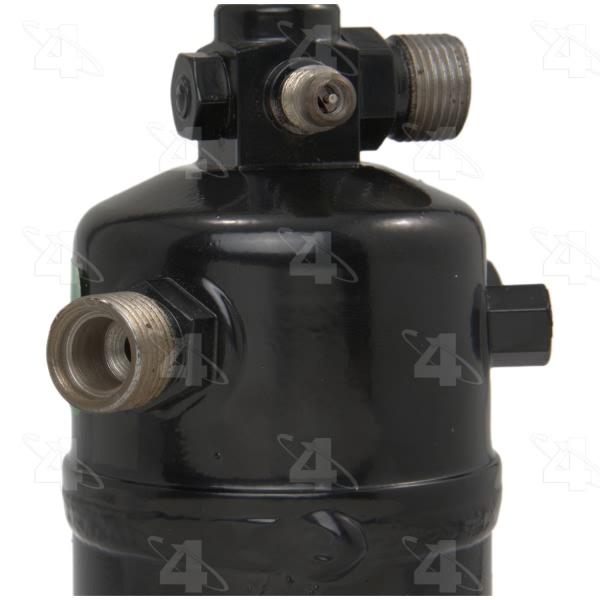

| Part Description | A C Receiver Drier |
| Body Diameter | 2.500 |
| Body Length | 8.000 |
| Bracket | w/o Bracket |
| Connector B Type | Male Insert O-Ring |
| Connector Type | Male Insert O-Ring |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Dia. MM | 63.500 |
| Fuse Plug | No |
| Gasket / Seals | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Male |
| Inlet Filter Fitting Type | Male |
| Inlet Fitting Diameter | 0.375 |
| Inlet Fitting Type | Male Insert O-Ring |
| Length MM | 203.200 |
| Material | Steel |
| Meets / Exceeds OEM | Yes |
| Moisture Indicator Window | No |
| Mounting Bracket Included | Hardware not included |
| New or Reman | New |
| O-Ring A Number/Desc | [24606] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24608] / Green O-Ring |
| O-Ring B Quantity | 2 |
| O-Ring C Number/Desc | [24606] / Green O-Ring |
| O-Ring C Quantity | 2 |
| O-Ring D Number/Desc | [24608] / Green O-Ring |
| O-Ring D Quantity | 2 |
| Outlet Fitting Type | Male Insert O-Ring |
| Outlet IN | 0.375 |
| Overall Depth IN | 8.000 |
| P. R. V. | No |
| Service Port | w/ Service Port |
| Sight Glass | Yes |
| Stud | No |
| Style | Steel Filter Drier |
| Switch Port | w/ Switch Port |
| Switch Port Dia. IN | 0.250 |
| Switch Port Dia.MM | 6.350 |
| UPC | 096361334304 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1978-1984 BMW 733i | All Trims | All Engines |
| 1985-1986 BMW 735i | All Trims | All Engines |
| 1986 BMW L7 | All Trims | All Engines |
