Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 66170 |

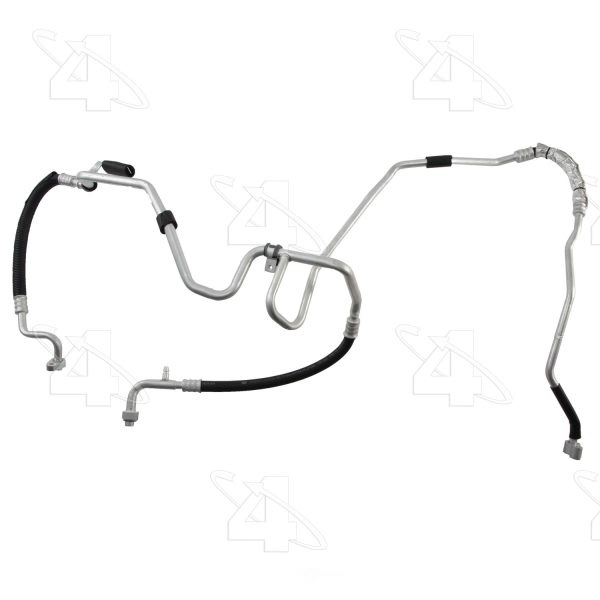

| Part Description | A C Refrigerant Suction Hose |
| Bracket | w/ Bracket |
| Component Type | Suction Line |

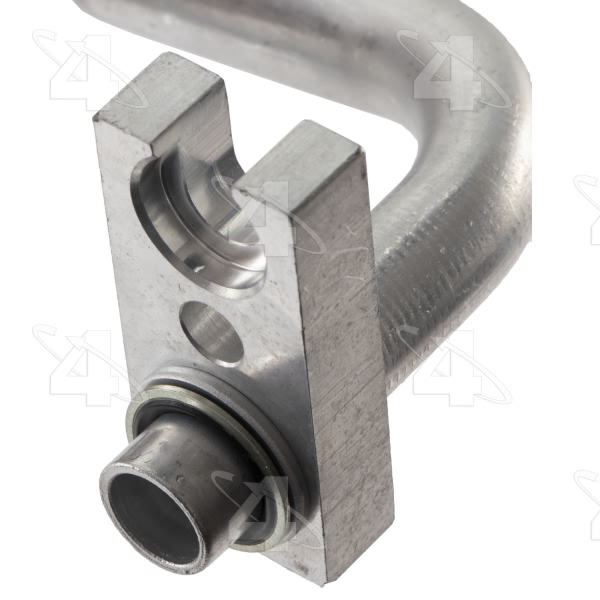

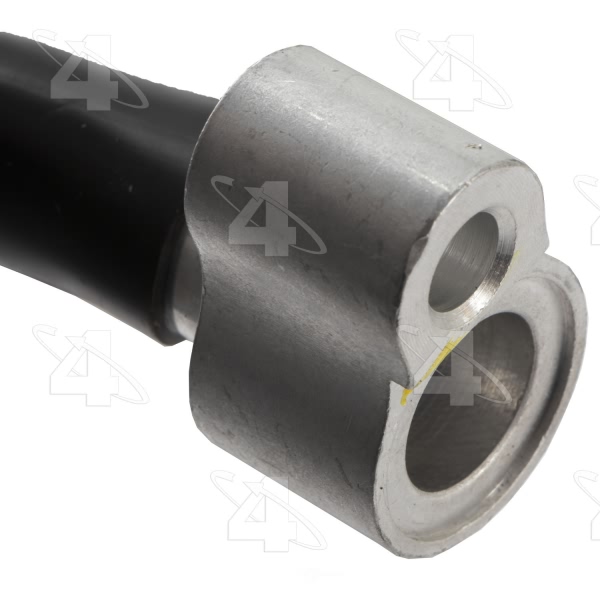

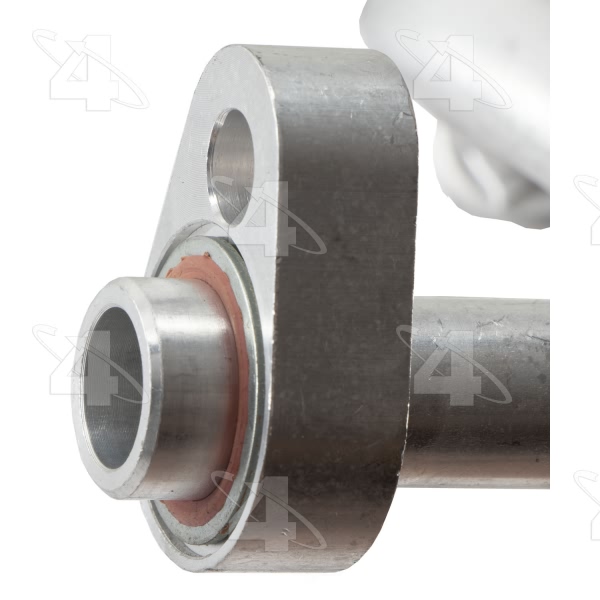

| End 1 Type | P-Nut Fitting |
| End 2 Type | P-Nut Fitting |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Number/Desc | [24255] / Sealing Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24255] / Sealing Washer |
| O-Ring B Quantity | 1 |
| O.E. Replacement | Yes |
| Refrigerant Type | R134a |
| Service Port | w/ Service Port |
| Service Port Qty | 1 |
| Service Port Size | M8x1.000 |
| Suction End Type | P-Nut Fitting |
| Sve Port Low Side | Low Side |
| Switch Included | Not Included |
| Switch Service Port | w/o Switch Port |
| System Pressure | Low Pressure |
| UPC | 096361118980 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2016 Chrysler Town & Country | All Trims | All Engines |
| 2012-2018 Dodge Grand Caravan | All Trims | All Engines |
| 2012-2015 Ram C/V | All Trims | All Engines |
