Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56972 |

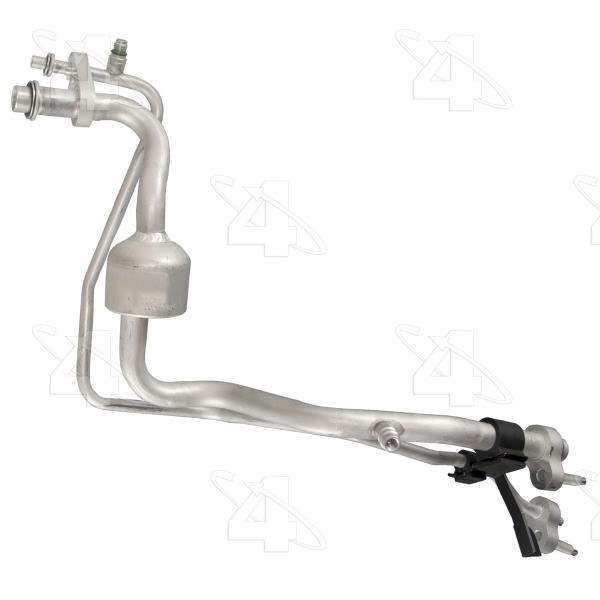

| Part Description | A C Suction And Liquid Line Hose Assembly |
| Bracket | w/ Bracket |
| End 1 Type | P-Nut Fitting |
| End 2 Type | Sealing Washer |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line Gender | Male |
| Liquid Line Style | Sealing Washer |
| Manifold | Yes |
| Material | Aluminum / Rubber |
| Muffler | w/ Muffler |
| O-Ring A Number/Desc | [24401] / Slim Line Sealing Washer |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | [24404] / Slimline Washer |
| O-Ring B Quantity | 2 |
| O.E. Replacement | Yes |
| Orifice Tube | w/o Orifice Tube |
| Refrigerant Type | R134-A |
| Service Port | w/o Service Port |
| Style | Hose Assy /Suction, Liquid |
| Suction End Size | No. 12 |
| Suction End Type | Male P-Nut |
| Switch Service Port | w/o Switch Port |
| System Pressure | High Pressure / Low Pressure |
| UPC | 096361072626 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010 Ford Fusion | All Trims | 6 Cyl 3.0L |
| 2010-2012 Ford Fusion | All Trims | 4 Cyl 2.5L |
| 2010 Mercury Milan | All Trims | 6 Cyl 3.0L |
| 2010-2011 Mercury Milan | All Trims | 4 Cyl 2.5L |
