Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 66289 |

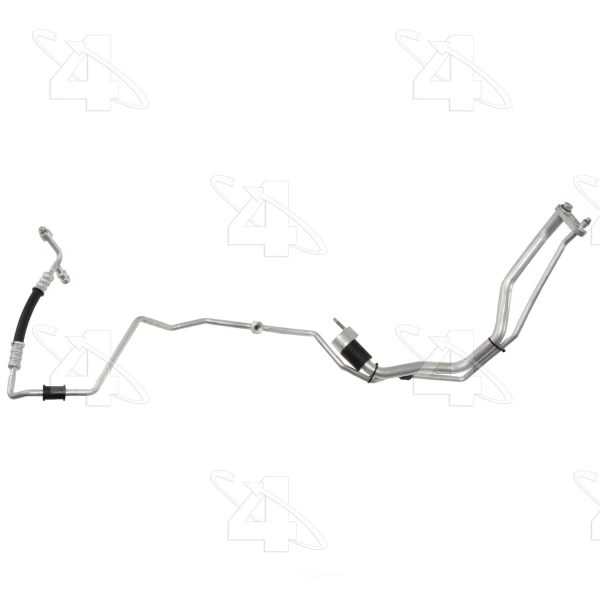

| Part Description | A C Suction And Liquid Line Hose Assembly |
| Bracket | w/o Bracket |
| End 1 Type | P-Nut Fitting |
| End 2 Type | P-Nut Fitting |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line Style | Flange |
| Manifold | w/o Manifold |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | [24109] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | w/o Orifice Tube |
| Refrigerant Type | R134a |
| Service Port | w/ Service Port |
| Service Port Qty | 1 |
| Style | Hose Assy /Suction, Liquid |
| Suction End Size | No. 12 |
| Suction End Type | P-Nut Fitting |
| Svc Port High Side | High Side |
| Switch Port Quantity | 1 |
| Switch Port Size | 3/8" - 24 |
| Switch Service Port | w/ Switch Port |
| System Pressure | High Pressure / Low Pressure |
| UPC | 096361141902 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2008 Kia Rondo | All Trims | All Engines |
