Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 66648 |

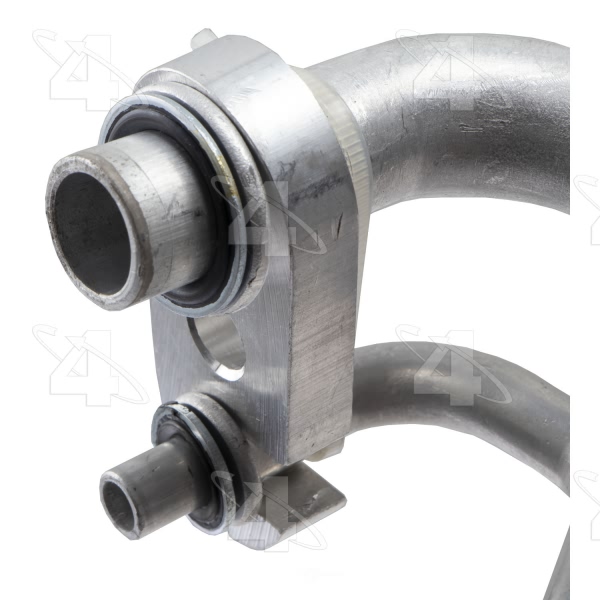

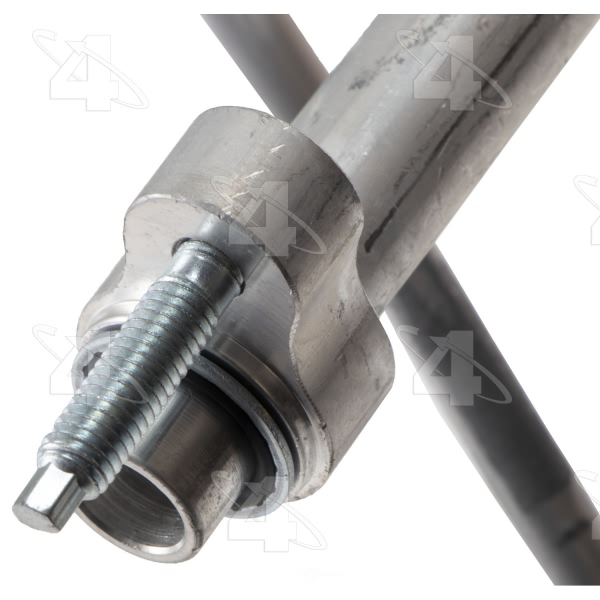

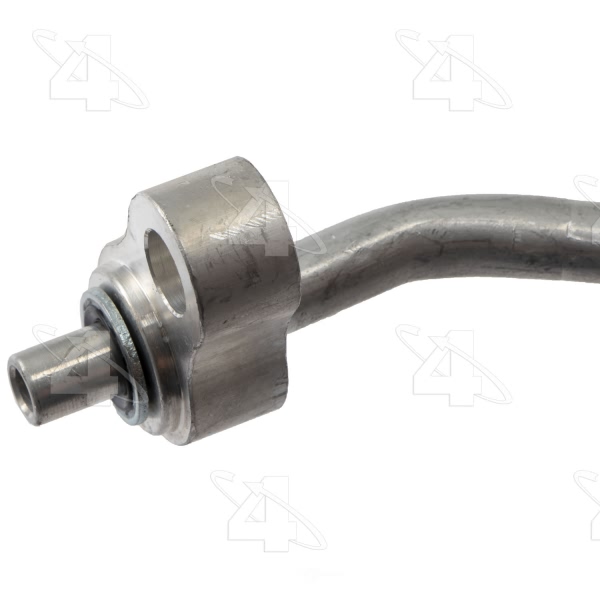

| Part Description | A C Suction And Liquid Line Hose Assembly |
| Bracket | w/o Bracket |
| End 1 Type | P-Nut Fitting |
| End 2 Type | P-Nut Fitting |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Manifold | w/ Manifold |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| O-Ring C Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | w/o Orifice Tube |
| Service Port | w/ Service Port |
| Service Port Qty | 1 |
| Style | Hose Assembly w/ IHX |
| Suction End Size | No. 12 |
| Suction End Type | P-Nut Fitting |
| Svc Port High Side | High Side |
| Switch Service Port | w/o Switch Port |
| System Pressure | High Pressure / Low Pressure |
| UPC | 096361141292 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017-2018 Cadillac XT5 | All Trims | All Engines |
| 2018 GMC Acadia | All Trims | 6 Cyl 3.6L |
