Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56231 |

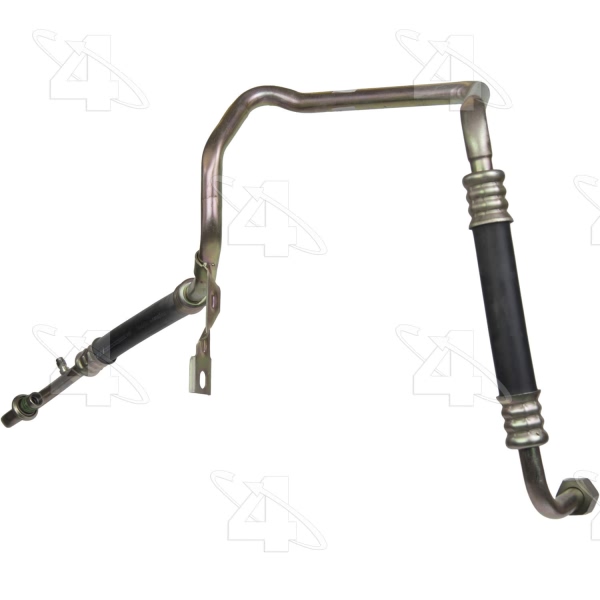

| Part Description | A C Suction Line Hose Assembly |
| Bracket | w/ Bracket |
| Component Type | Suction Line |
| End 1 Type | Male Springlock |
| End 2 Type | Female O-Ring |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Number/Desc | [24610] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24650] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24670] / Green O-Ring |
| O-Ring C Quantity | 3 |
| O-Ring D Number/Desc | [24220] / Spring |
| O-Ring D Quantity | 1 |
| O.E. Replacement | Yes |
| Refrigerant Type | R12 |
| Service Port | w/o Service Port |
| Suction End Type | Female O-Ring |
| Switch Included | Not Included |
| Switch Port Quantity | 1 |
| Switch Port Size | 1/4 |
| Switch Service Port | w/ Switch Port |
| System Pressure | Low Pressure |
| UPC | 096361562318 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1991 Ford Tempo | All Trims | All Engines |
| 1988-1991 Mercury Topaz | All Trims | All Engines |
