Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56978 |

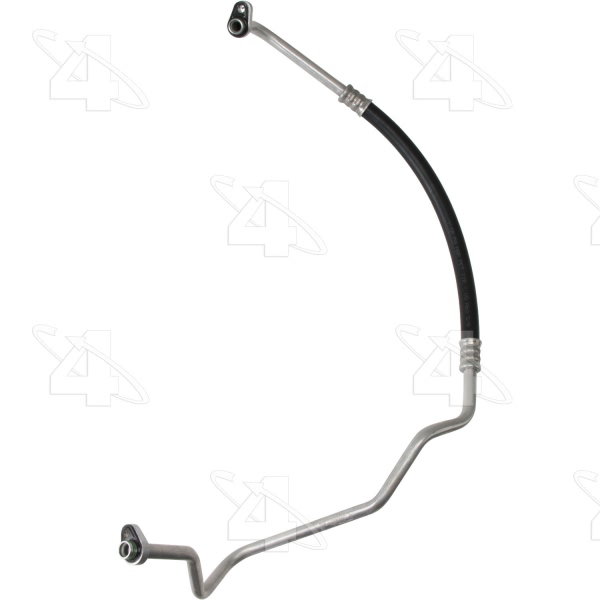

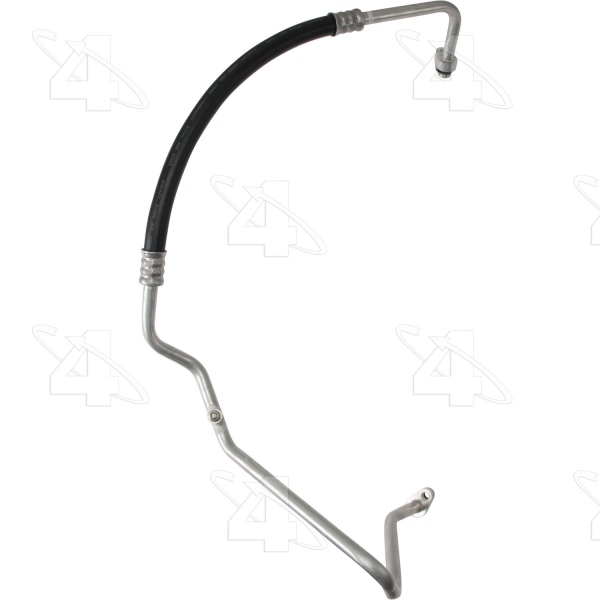

| Part Description | A C Suction Line Hose Assembly |
| Bracket | w/o Bracket |
| Component Type | Suction Line |
| End 1 Type | Male P-Nut |
| End 2 Type | Capture O-Ring |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Number/Desc | [24344] / Sealing Washer Kit |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24346] / Sealing Washer Kit |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24676] / Green O-Ring |
| O-Ring C Quantity | 1 |
| O.E. Replacement | Yes |
| Refrigerant Type | R134-A |
| Service Port | w/o Service Port |
| Suction End Type | Male P-Nut |
| Swch Port Trd Size | M12 x 1.5 |
| Switch Included | Not Included |
| Switch Port Quantity | 1 |
| Switch Port Size | M12 |
| Switch Service Port | w/ Switch Port |
| System Pressure | Low Pressure |
| UPC | 096361569782 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2006 Jeep TJ | All Trims | 6 Cyl 4.0L |
| 2005-2006 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
