Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 83245 |

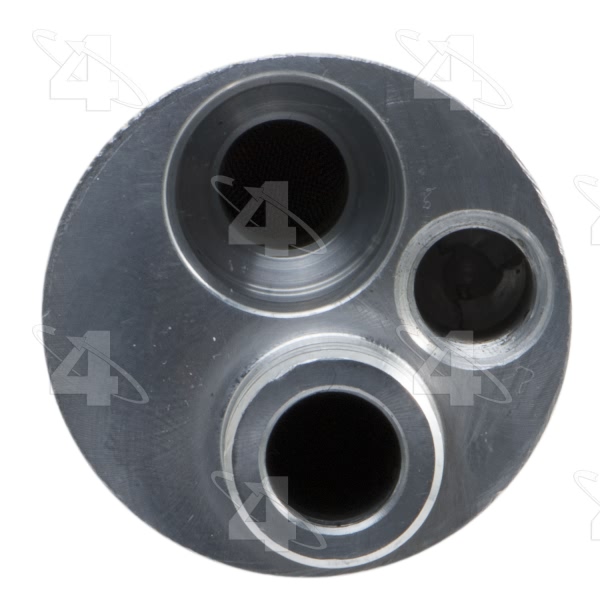

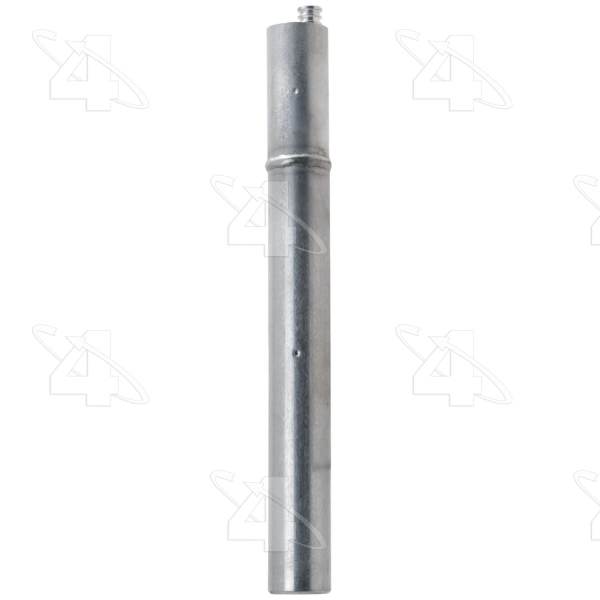

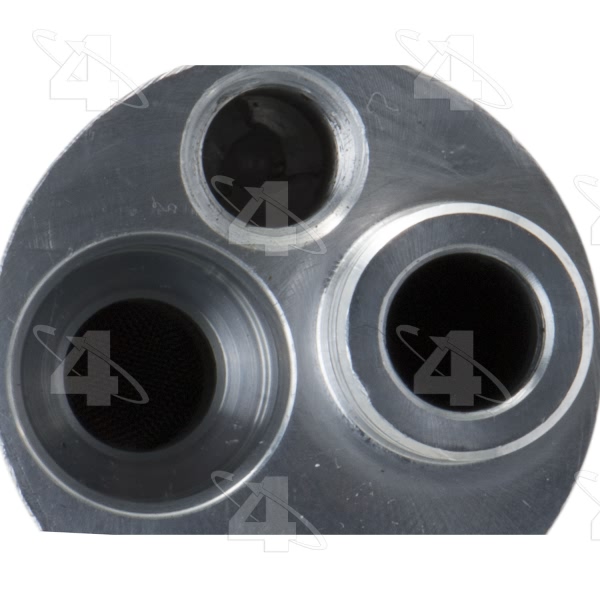

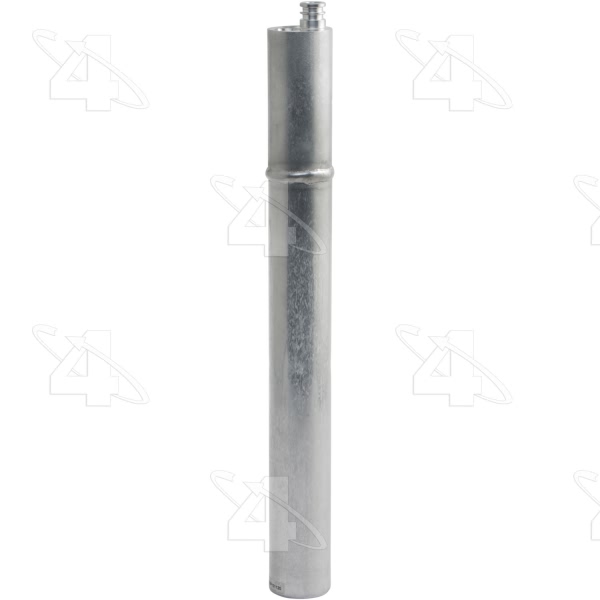

| Part Description | Aluminum Filter Drier w/ Pad Mount |
| Body Diameter | 1.1811 |
| Body Length | 10.750 |
| Connector B Type | Pad Mount |
| Connector Type | Pad Mount |
| Desiccant | Yes |
| Desiccant Replaceable | Not Replaceable |
| Gasket / Seals | Included |
| In Line Filter Material | Desiccant |
| In Line Filter Outlet Fitting Type | Pad Mount |
| Inlet Filter Fitting Thread Diameter | 0.625 |
| Inlet Filter Fitting Type | Pad Mount |
| Inlet Fitting Diameter | 0.625 |
| Inlet Fraction | 5/8 |
| Length MM | 272.000 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mounting Bracket Included | Hardware not included |
| Outlet Fitting Type | Pad Mount |
| Outlet Fraction | 5/8 |
| Outlet IN | 0.625 |
| Overall Depth IN | 11.14 |
| Overall Depth MM | 283 |
| Service Port | w/o Service Port |
| Sight Glass | No |
| Style | Aluminum Filter Drier w/ Pad Mount |
| Switch Port | w/o Switch Port |
| UPC | 096361832459 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2018 Fiat 500 | All Trims | All Engines |
| 2013 Fiat 500 | All Trims | 4 Cyl 1.4L |
| 2016-2017 Fiat 500 | All Trims | 4 Cyl 1.4L |
| 2014-2018 Fiat 500L | All Trims | All Engines |
| 2016 Fiat 500X | All Trims | 4 Cyl 2.4L |
| 2016-2017 Fiat 500X | All Trims | 4 Cyl 1.4L |
| 2018 Fiat 500X | All Trims | All Engines |
