Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 76023 |

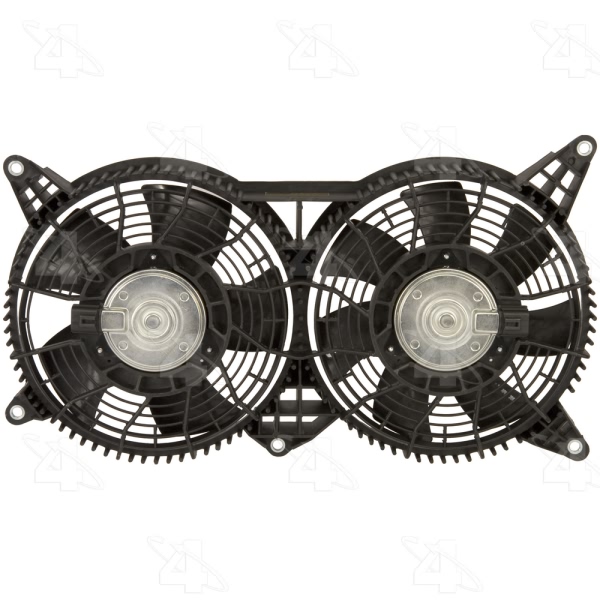

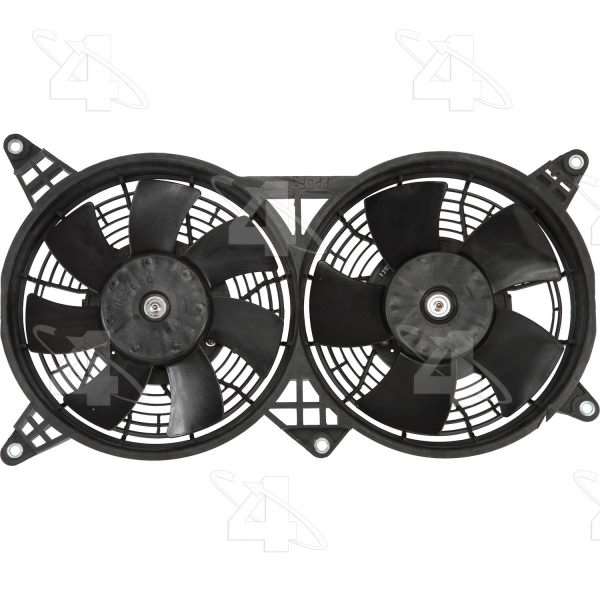

| Part Description | Dual Radiator And Condenser Fan Assembly |
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Female |
| Connector qty | 2 |
| Connector Type | 2 Terminal connector |
| Electrical or Mechanical | Electrical |
| Fan 1 Blade Quantity | 7 |
| Fan 2 Blade Quantity | 7 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 2 |
| Height IN | 12.250 |
| Height MM | 285.750 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Motor Type A | Radiator Fan Assembly |
| Mount Type | OE mount |
| Mounting Hardware | Not Included |
| O.E. Replacement | Yes |
| Package Depth IN | 30.500 |
| Package Depth MM | 774.700 |
| Package Height IN | 5.250 |
| Package Height MM | 133.350 |
| Package Length IN | 20.500 |
| Package Length MM | 520.700 |
| Performance Rated | Yes |
| Shroud Included | Included |
| Shroud Material | NA or Plastic |
| Style | Radiator Fan, Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| UPC | 096361760233 |
| Voltage | 12 |
| Width IN | 23.500 |
| Width MM | 596.900 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2008 Cadillac SRX | All Trims | All Engines |
| 2009 Cadillac SRX | All Trims | 8 Cyl 4.6L |
| 2005 Cadillac STS | All Trims | All Engines |
| 2006 Cadillac STS | All Trims | 6 Cyl 3.6L |
| 2006-2010 Cadillac STS | All Trims | 8 Cyl 4.6L |
