Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 76167 |

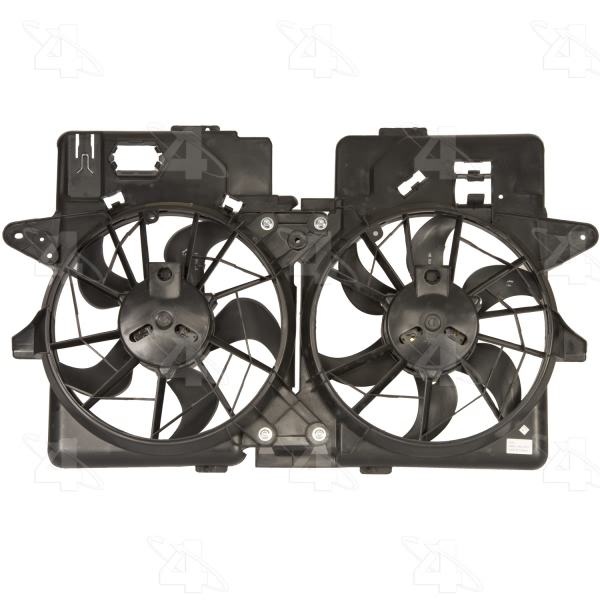

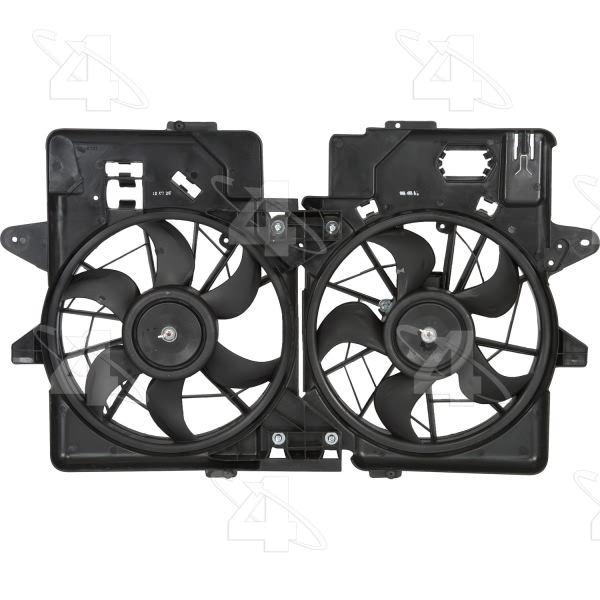

| Part Description | Dual Radiator And Condenser Fan Assembly |
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Female |
| Connector qty | 2 |
| Connector Type | 3 Terminal Connector |
| Electrical or Mechanical | Electrical |
| Fan 1 Blade Quantity | 6 |
| Fan 2 Blade Quantity | 6 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 2 |
| Height IN | 19.750 |
| Height MM | 482.600 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Motor Type A | Radiator Fan Assembly |
| Mount Type | OE mount |
| Mounting Hardware | Not Included |
| O.E. Replacement | Yes |
| Package Depth IN | 35.750 |
| Package Depth MM | 908.050 |
| Package Height IN | 7.500 |
| Package Height MM | 190.500 |
| Package Length IN | 23.000 |
| Package Length MM | 584.200 |
| Performance Rated | Yes |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Radiator Fan, Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| UPC | 096361761674 |
| Voltage | 12 |
| Width IN | 31.000 |
| Width MM | 723.900 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2004 Ford Escape | All Trims | 4 Cyl 2.0L |
