Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 76194 |

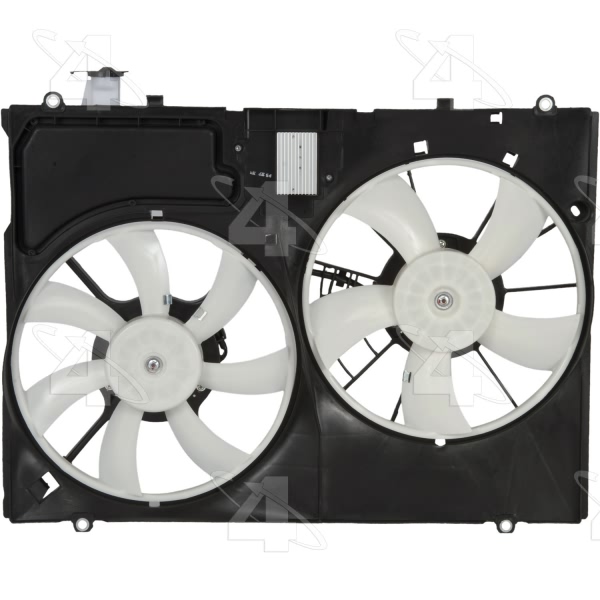

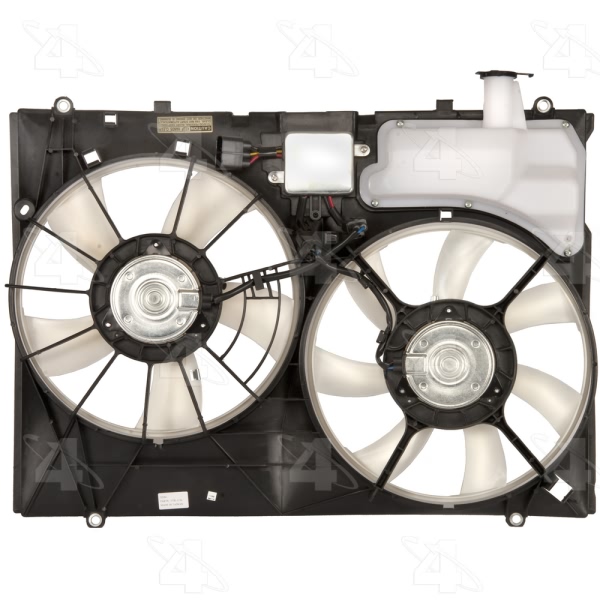

| Part Description | Dual Radiator And Condenser Fan Assembly |
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Female |
| Connector qty | 1 |
| Connector Type | 3 wire lead w/ Connector |
| Electrical or Mechanical | Electrical |
| Fan 1 Blade Quantity | 7 |
| Fan 2 Blade Quantity | 7 |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 2 |
| Height IN | 19.500 |
| Height MM | 488.950 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Motor Type A | Radiator Fan Assembly |
| Mount Type | OE mount |
| Mounting Hardware | Not Included |
| O.E. Replacement | Yes |
| Package Depth IN | 33.000 |
| Package Depth MM | 838.200 |
| Package Height IN | 7.000 |
| Package Height MM | 177.800 |
| Package Length IN | 24.000 |
| Package Length MM | 609.600 |
| Performance Rated | Yes |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Radiator Fan, Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| UPC | 096361761940 |
| Voltage | 12 |
| Width IN | 26.750 |
| Width MM | 685.800 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2009 Lexus RX350 | All Trims | All Engines |
