Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 76270 |

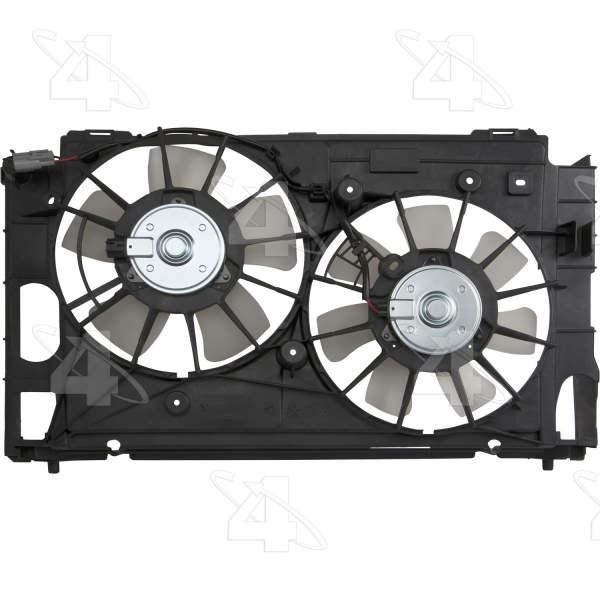

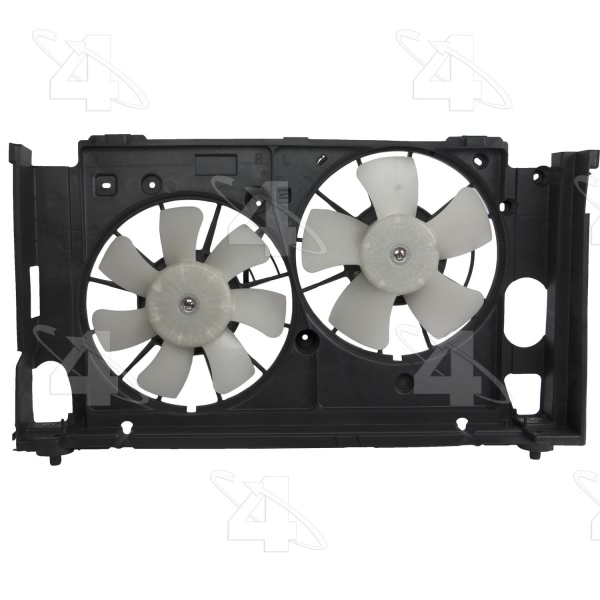

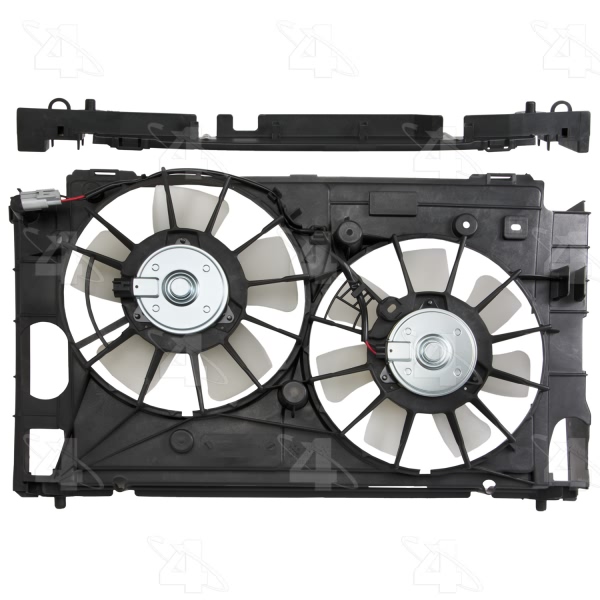

| Part Description | Dual Radiator And Condenser Fan Assembly |
| Blade Material | Plastic |
| Blade Material B | Plastic |
| Blade Type | Rigid |
| Connector Gender | Female |
| Connector qty | 2 |

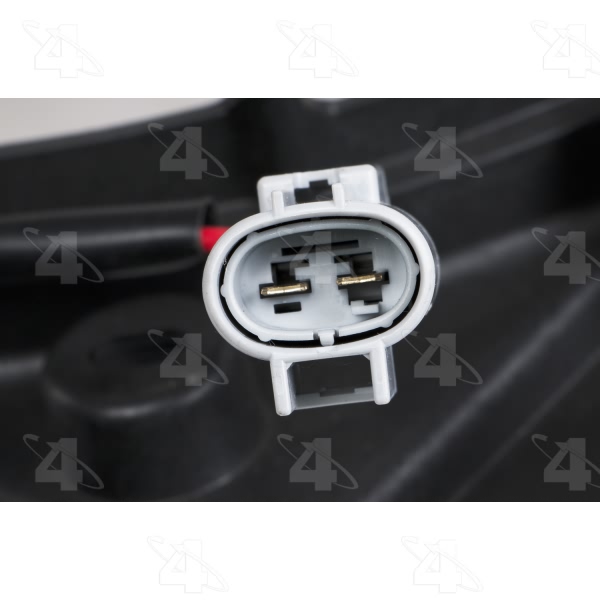

| Connector Shape | Oval |
| Connector Type | 2 wire lead w/ Connector |
| Electrical or Mechanical | Electrical |
| Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
| Fan Quantity | 2 |
| Height IN | 17.750 |
| Housing Finish | Black |
| Hub Bolt Hole Quantity | OE Mount |
| Material | Plastic / Metal |
| Motor Type A | Radiator Fan Assembly |
| Motor Type B | Condenser Fan |
| Mount Type | OE mount |
| Mounting Hardware | Not Included |
| O.E. Replacement | Yes |
| UPC | 096361762701 |
| OE Part Number | 2811673, 621369, 622310, FA70804 |
| Package Depth IN | 8.000 |
| Package Depth MM | 203.000 |
| Package Height IN | 21.500 |
| Package Height MM | 546.000 |
| Package Length IN | 32.500 |
| Package Length MM | 826.000 |
| Performance Rated | Yes |
| Shroud Included | Included |
| Shroud Material | Plastic |
| Style | Radiator Fan, Condenser Fan |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Voltage | 12 |
| Width IN | 30.000 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Lexus CT200h | All Trims | All Engines |
| 2010-2014 Toyota Prius | All Trims | All Engines |
| 2012-2014 Toyota Prius Plug-In | All Trims | All Engines |
| 2012-2014 Toyota Prius V | All Trims | All Engines |
