Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46062 |

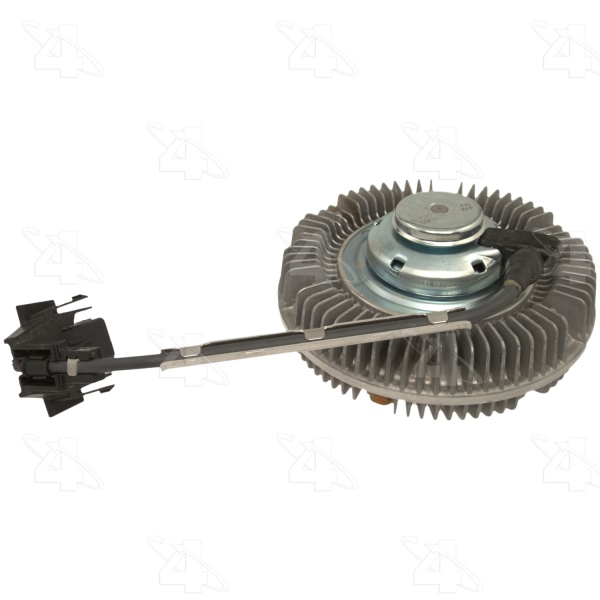

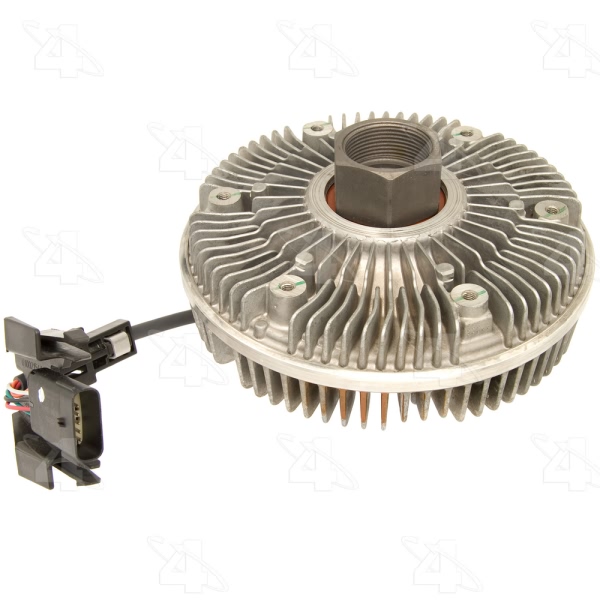

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 6 |
| Bolt Quantity | 6 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 7.73 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.22 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 6 |
| Fan Bolt Circle MM | 152.4 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.86 (47mm) HEX |
| Mount Dia. MM | 47 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 6 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 196.3 |
| Overall Height IN | 4.81 |
| Overall Height MM | 122.2 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.78 or 17.8 |
| Pilot Dia. IN | M40x2.000 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361460621 |
| Use Type | Electro-Viscous |
| Wire Gauge Measurement | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 6.4L |
| 2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 6.4L |
