Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46095 |

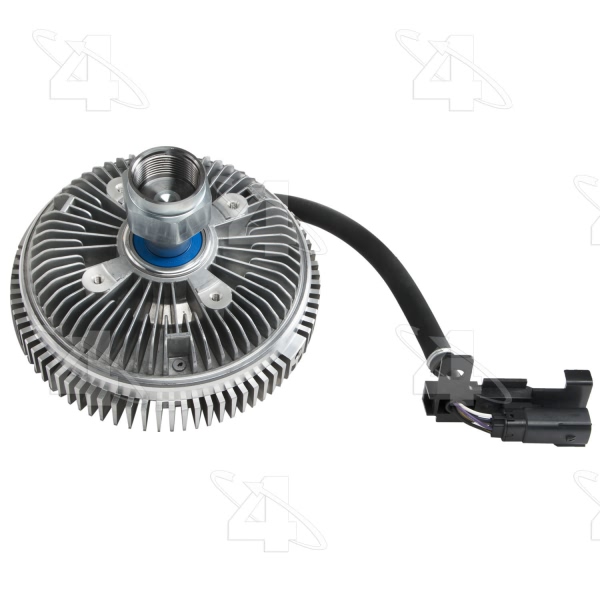

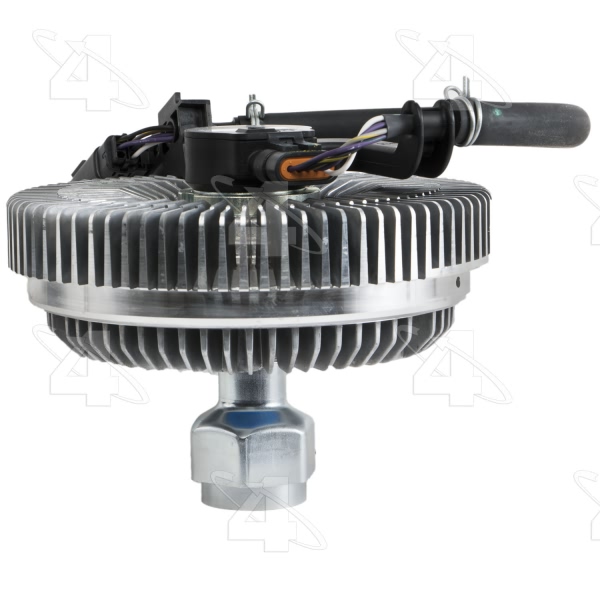

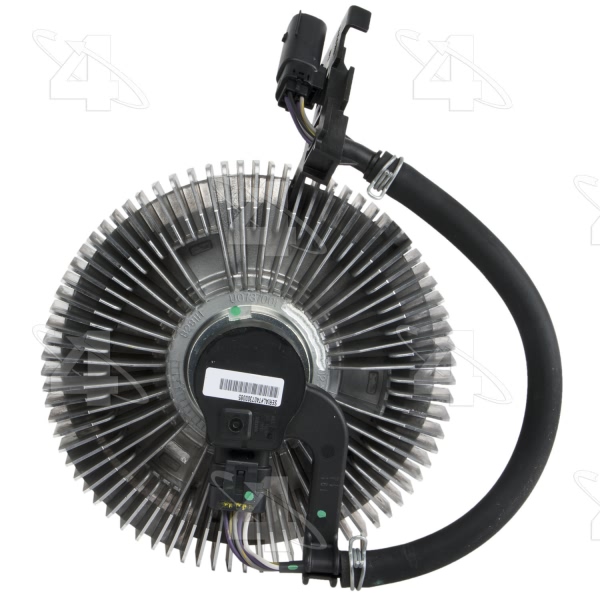

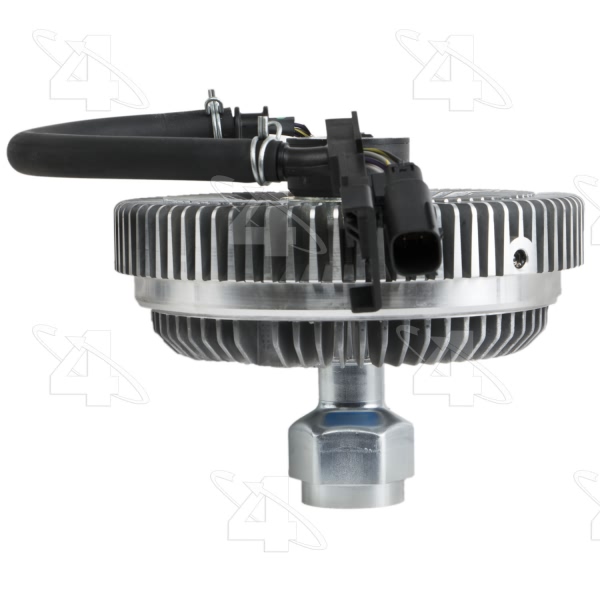

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 7.47 |
| Clutch Type | Electronic |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.37 |
| Electronic Clutch | Electronic |
| Fan Bolt Circle IN | 3.84 |
| Fan Bolt Circle MM | 97.5 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.86 (47mm) HEX |
| Mount Dia. MM | 47 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 189.7 |
| Overall Height IN | 5.81 |
| Overall Height MM | 147.6 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.88 |
| Pilot Depth MM | 22.3 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361460959 |
| Use Type | Severe Duty |

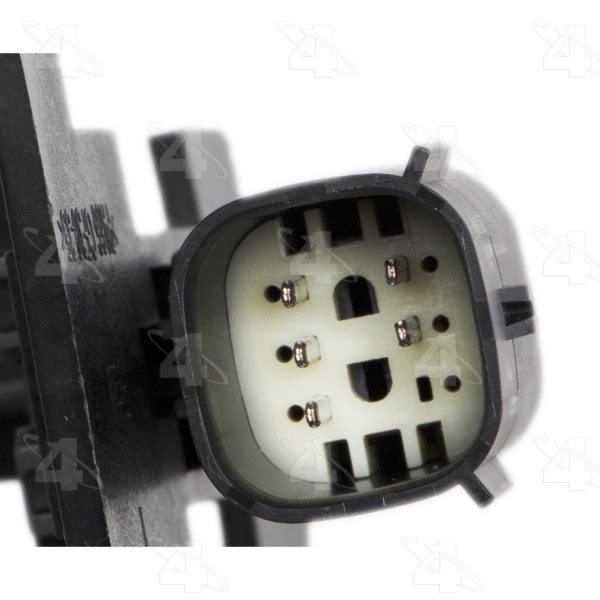

| Wire Gauge Measurement | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Ford F-150 | All Trims | 8 Cyl 6.2L |
| 2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2016 Ford F-350 | All Trims | All Engines |
| 2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2014 Ford Lobo | All Trims | 8 Cyl 6.2L |
