Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46112 |

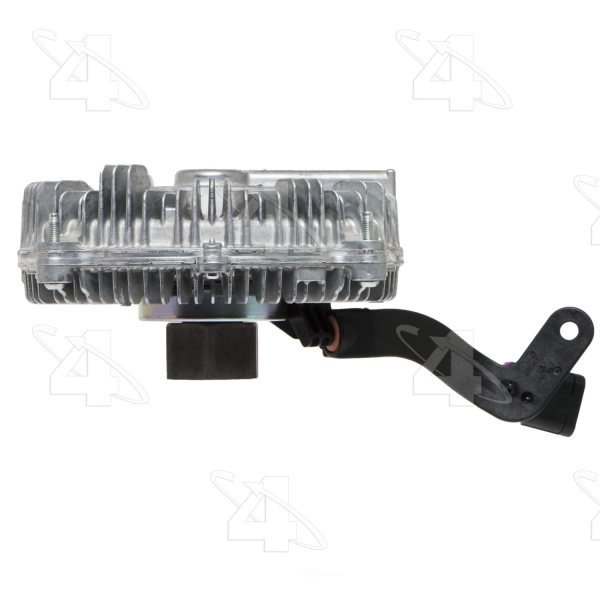

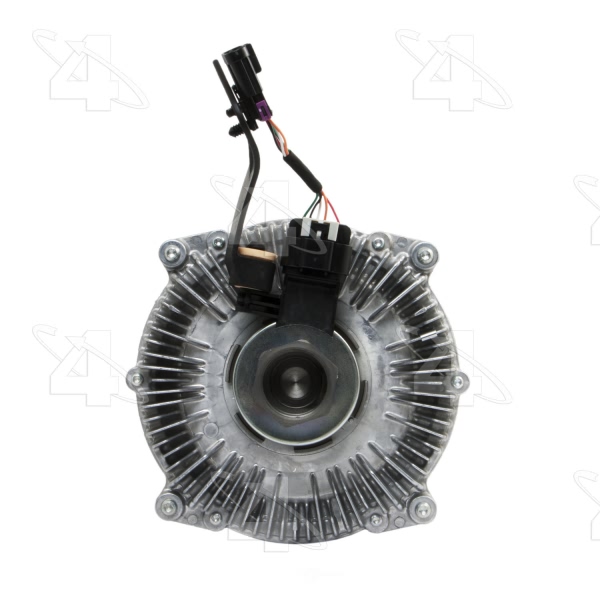

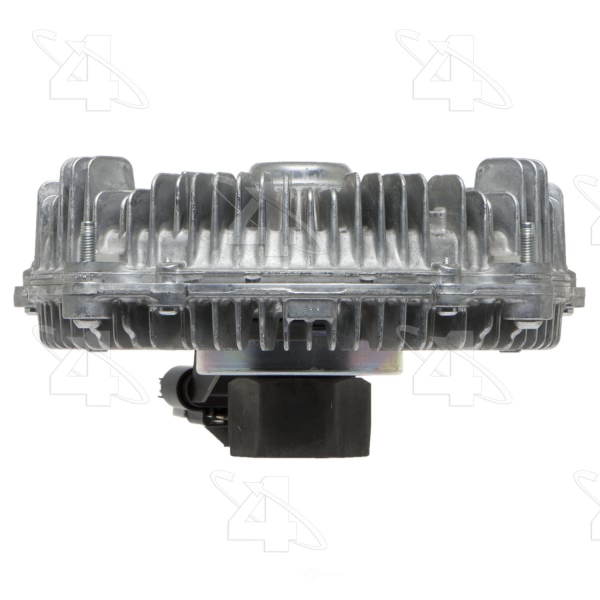

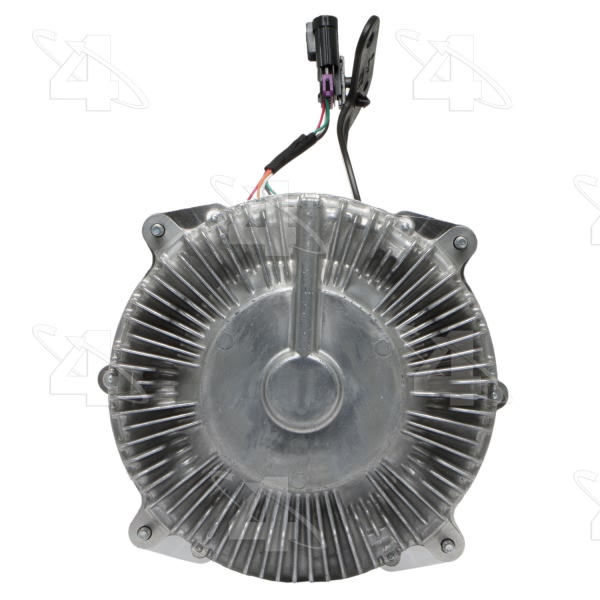

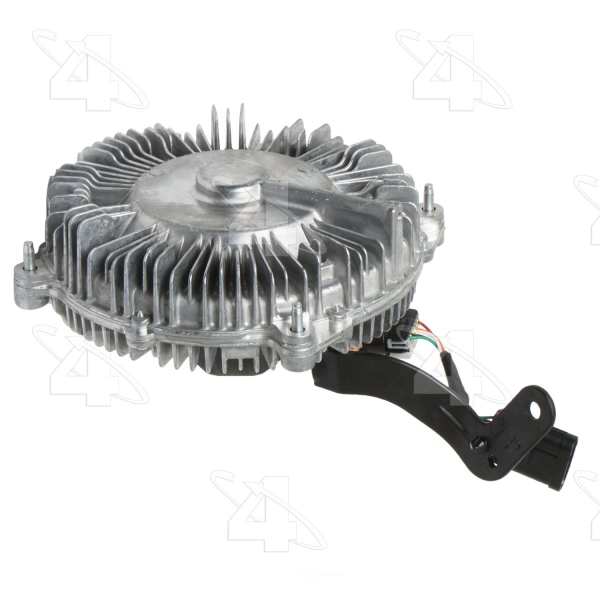

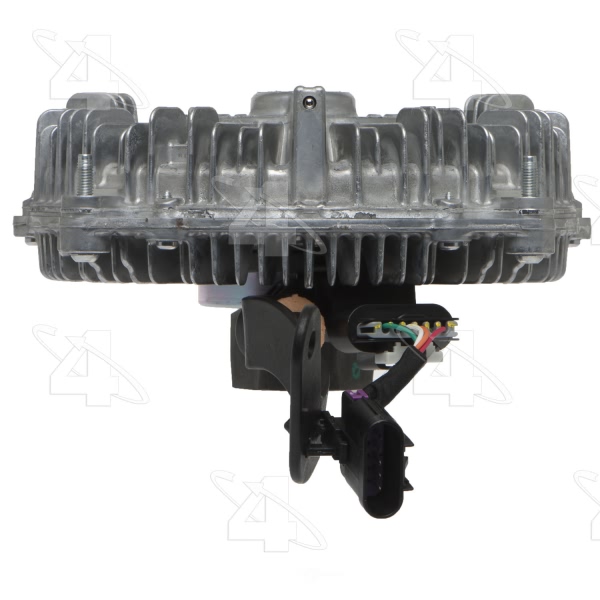

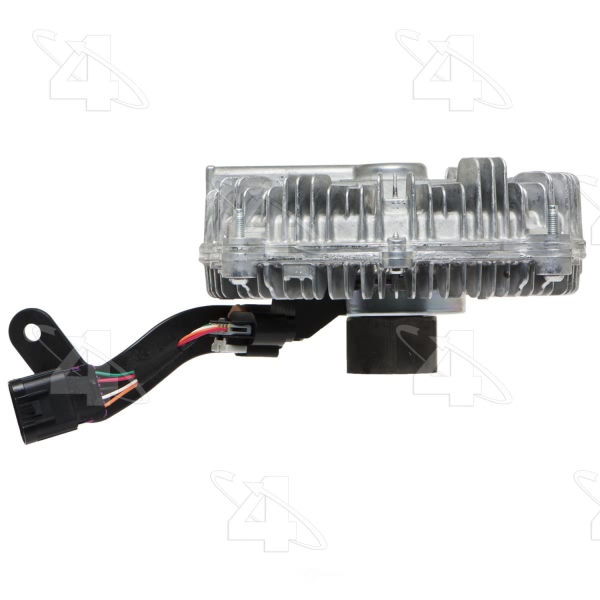

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Thread | 1/4 - 20 STUD |
| Clutch Maximum Diameter | 9.39 |
| Clutch Type | Electronic |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.78 |
| Fan Bolt Circle IN | 8.66 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.86 (47mm) HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Height IN | 4.29 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.77 |
| Pilot Dia. IN | M40x2.000 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361461123 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2018 Ram 2500 | All Trims | 6 Cyl 6.7L |
| 2013-2018 Ram 3500 | All Trims | 6 Cyl 6.7L |
| 2013 Ram 4000 | All Trims | 6 Cyl 6.7L |
