Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46115 |

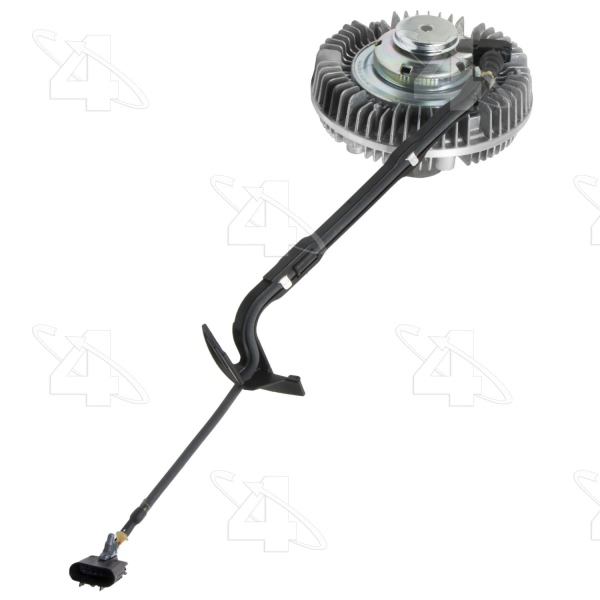

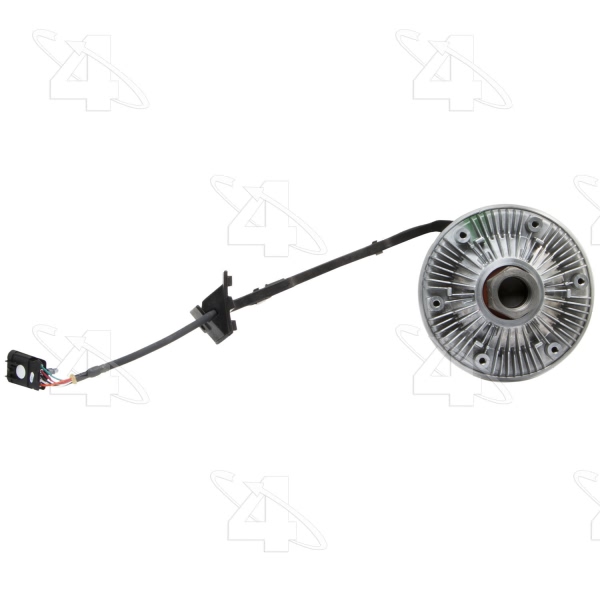

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 6 |
| Bolt Thread | M8 x 1.25 Hole |
| Clutch Maximum Diameter | 7.35 |
| Clutch Type | Electronic |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.79 |
| Fan Bolt Circle IN | 6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.88 (48mm) Hex |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 6 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Height IN | 5.13 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.75 |
| Pilot Dia. IN | 0.71 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361461154 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2016 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
| 2009-2016 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
| 2010-2016 GMC Savana 2500 | All Trims | 8 Cyl 6.6L |
| 2010-2016 GMC Savana 3500 | All Trims | 8 Cyl 6.6L |
