Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46121 |

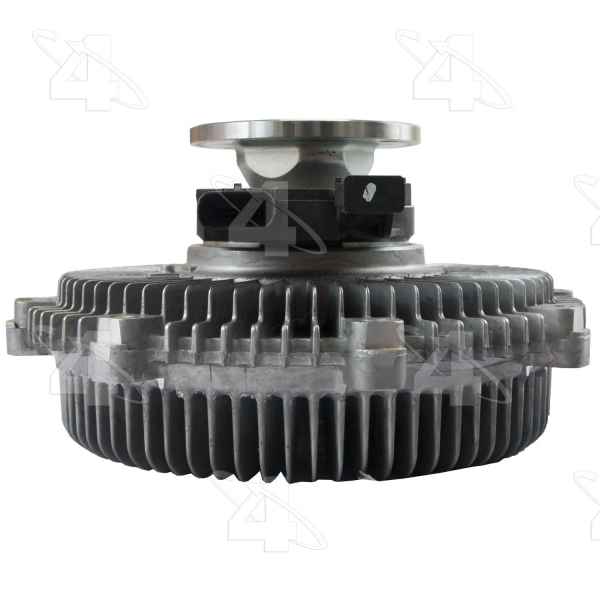

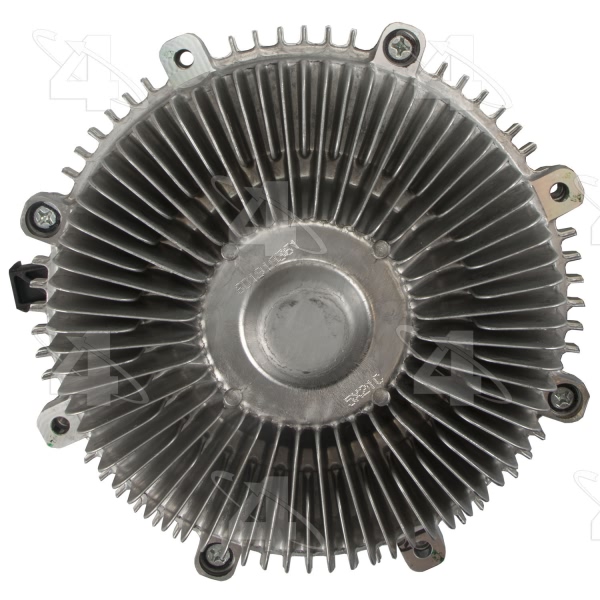

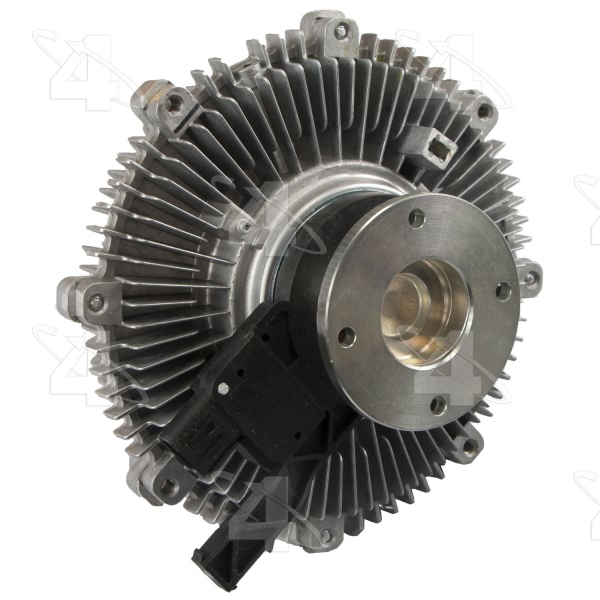

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6x1.000 |
| Clutch Maximum Diameter | 8.38 |
| Clutch Type | Electronic |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 3.12 |
| Fan Bolt Circle IN | 7.72 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 3.31 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Height IN | 4.34 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.59 |
| Pilot Dia. IN | 1.5 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361031029 |
| Use Type | Electro-Viscous |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2013 Infiniti QX56 | All Trims | All Engines |
| 2014-2018 Infiniti QX80 | All Trims | All Engines |
| 2017-2018 Nissan Armada | All Trims | All Engines |
| 2017-2018 Nissan NV2500 | All Trims | 8 Cyl 5.6L |
| 2017-2018 Nissan NV3500 | All Trims | 8 Cyl 5.6L |
| 2017-2018 Nissan Titan | All Trims | All Engines |
| 2016-2018 Nissan Titan XD | All Trims | 8 Cyl 5.6L |
