Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46123 |

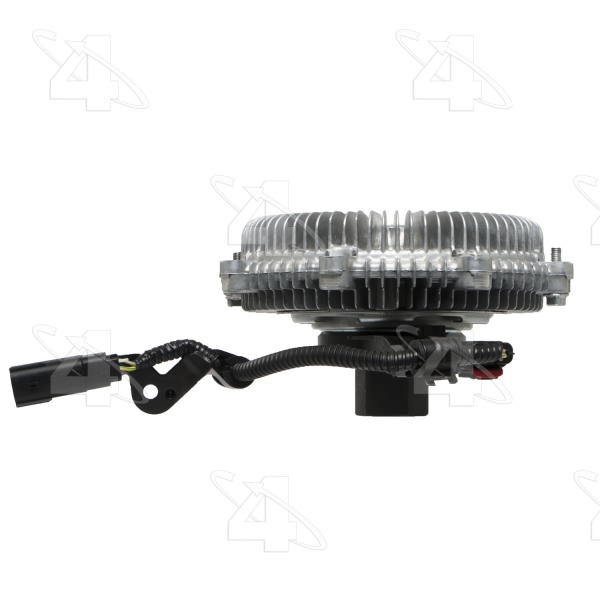

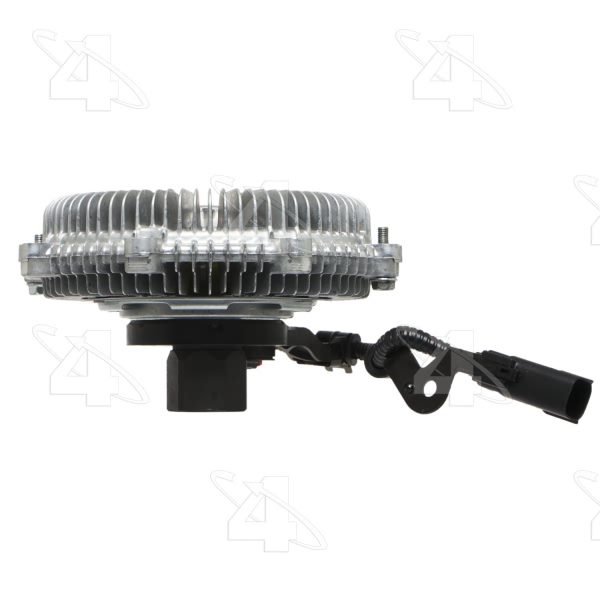

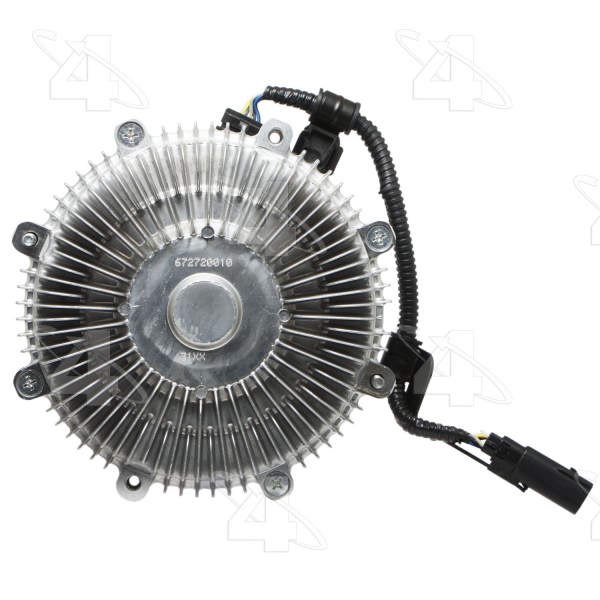

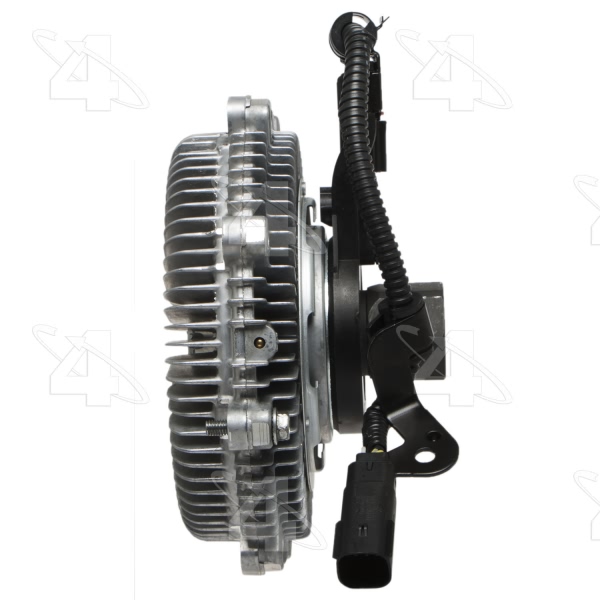

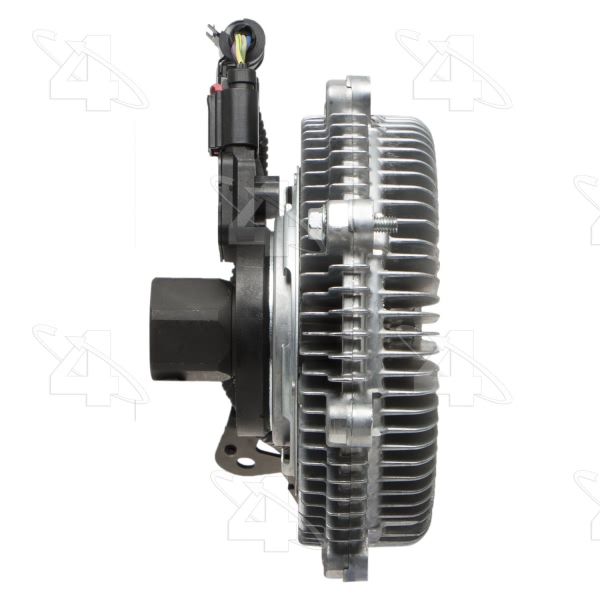

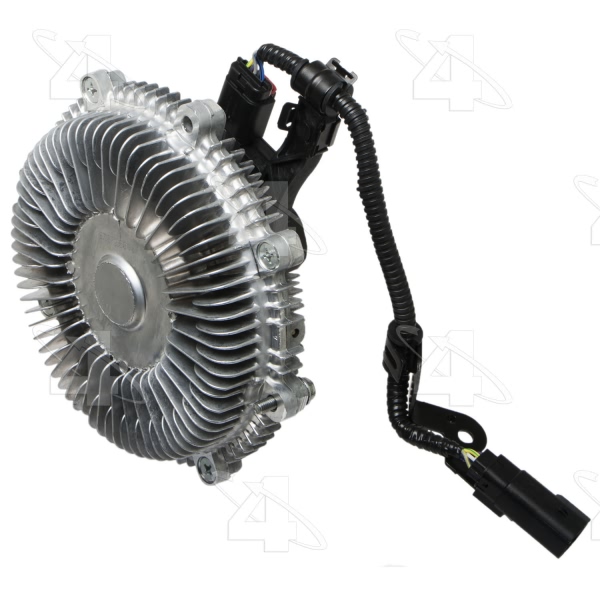

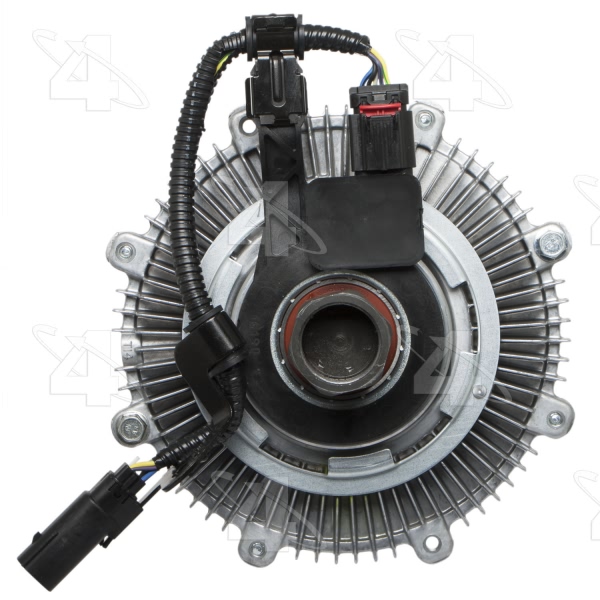

| Part Description | Electronic Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Thread | M6 x 1.0 STUD |
| Clutch Maximum Diameter | 7.73 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 3.16 |
| Fan Bolt Circle IN | 7.01 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.44 (36mm) HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Height IN | 4.11 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.82 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361000896 |
| Use Type | Electro-Viscous |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Chevrolet Colorado | All Trims | 4 Cyl 2.8L |
| 2017-2018 Chevrolet Express 2500 | All Trims | 4 Cyl 2.8L |
| 2017-2018 Chevrolet Express 3500 | All Trims | 4 Cyl 2.8L |
| 2016-2018 GMC Canyon | All Trims | 4 Cyl 2.8L |
| 2017-2018 GMC Savana 2500 | All Trims | 4 Cyl 2.8L |
| 2017-2018 GMC Savana 3500 | All Trims | 4 Cyl 2.8L |
