Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 85681 |

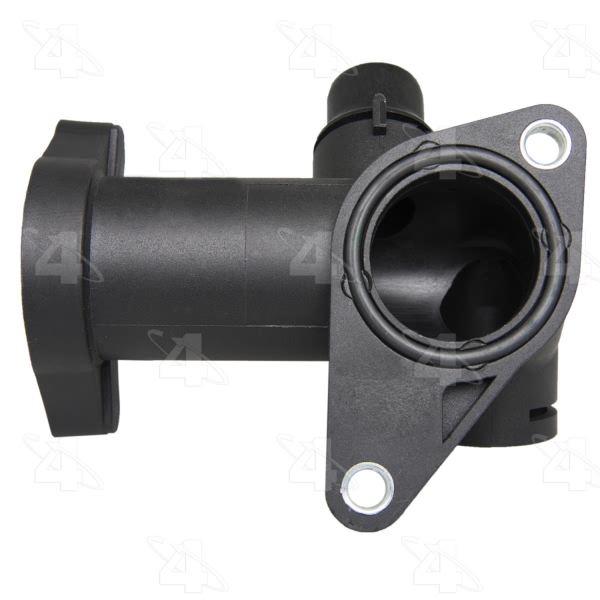

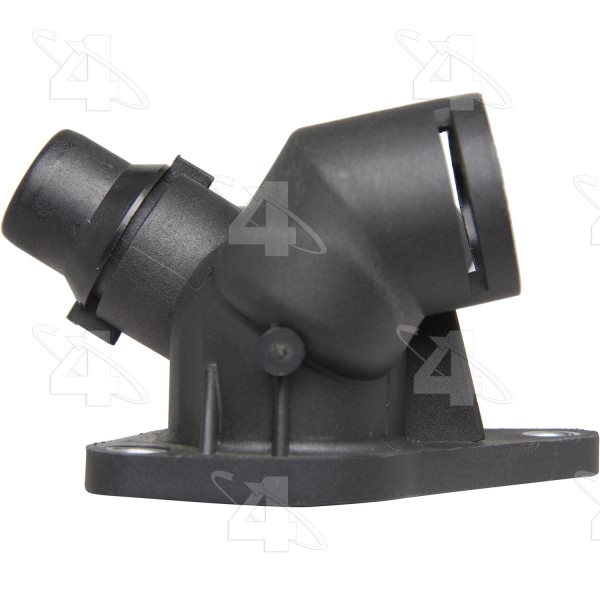

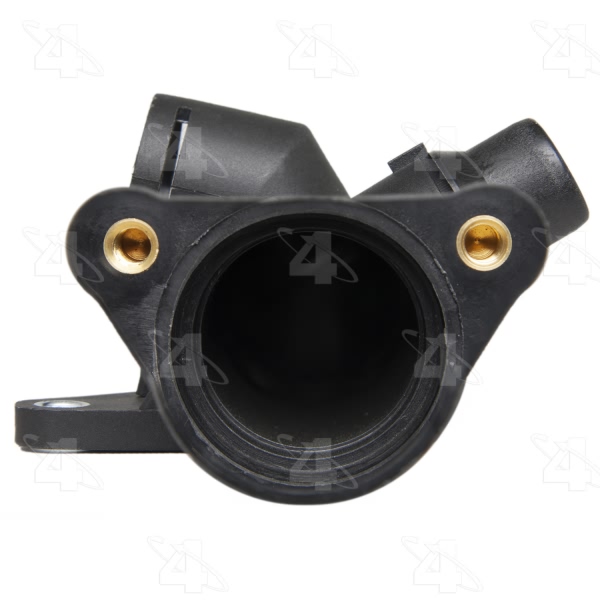

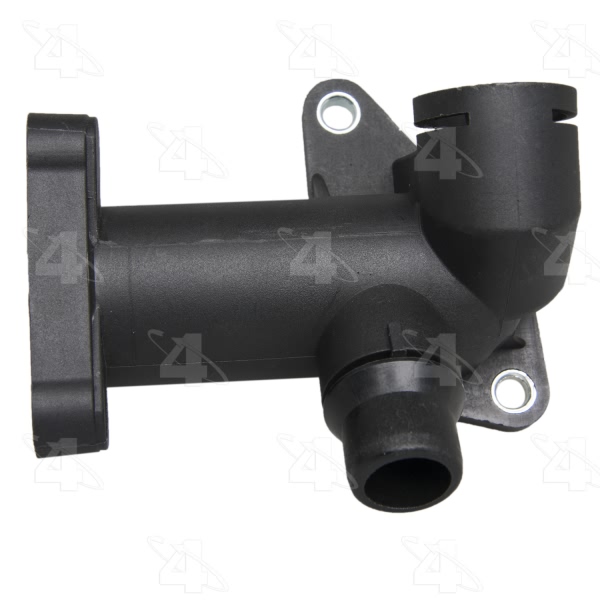

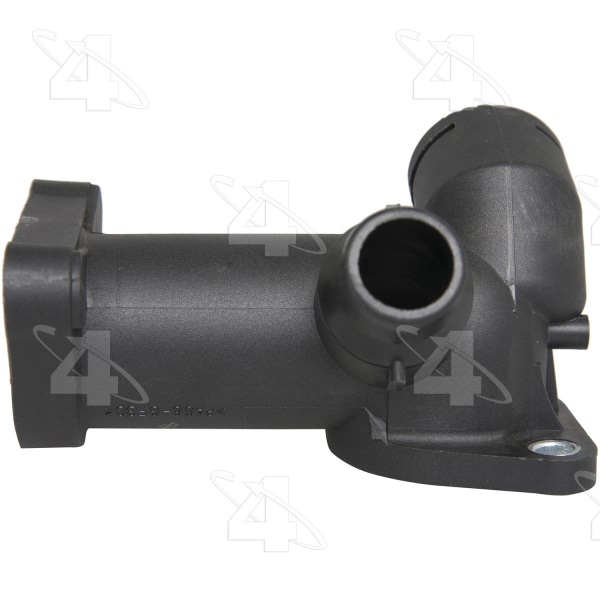

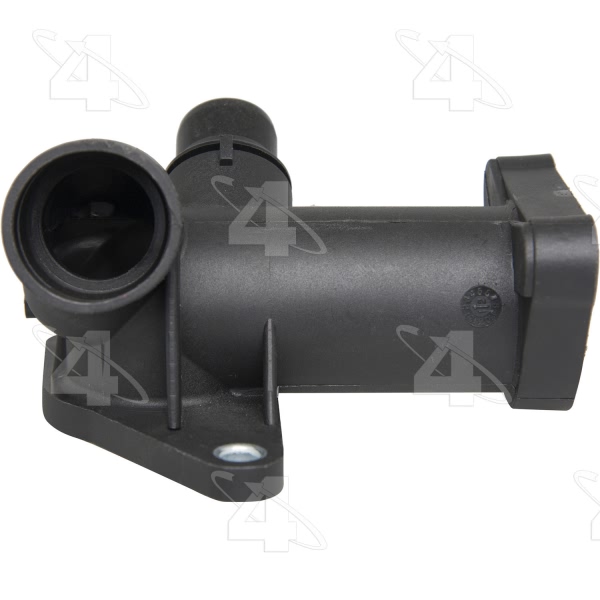

| Part Description | Engine Coolant Hose Flange |
| Base Width IN | 0.269 |
| Base Width MM | 6.836 |
| Bld Screw Included | Not Included |
| Blt Hole A to Ctr IN | 3.166 |
| Blt Hole A to Ctr MM | 80.416 |
| Blt Hole B to Ctr IN | 2.195 |
| Blt Hole B to Ctr MM | 55.753 |
| Bolt Hole B Dia. IN | 0.250 |
| Bolt Hole B Dia. MM | 6.350 |
| Bolt Hole C Dia. IN | 0.1875 |
| Bolt Hole C Dia. MM | 5.000 |
| Bolt Hole Quantity | 2.000 |
| Bypas Dia Length MM | 17.844 |
| Bypas Dia. Length IN | 0.703 |
| BypasB Dia Length IN | 0.744 |
| BypasB Dia Length MM | 18.898 |
| Bypass B Dia. IN | 0.857 |
| Bypass B Dia. MM | 21.768 |
| Bypass Dia. IN | 1.075 |
| Bypass Dia. MM | 27.305 |
| Gasket or Seal Included | Included |
| Hose Dia. IN | 1.500 |
| Lip For Thermostat | No |
| Material | Plastic |
| Meets / Exceeds OEM | Yes |
| Mounting Hardware Included | Not Included |
| Mounting Hole Quantity | 4 |
| Number of Outlets | 4.000 |
| Outlet Quantity | 3.000 |
| Style | w/o Thermostat |
| Symetrical Base | No |
| T-Stat Open Dia. IN | 1.250 |
| T-Stat Open Dia. MM | 31.750 |
| Total Port Quantity | 4 |
| UPC | 096361856813 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2005 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
