Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56103 |

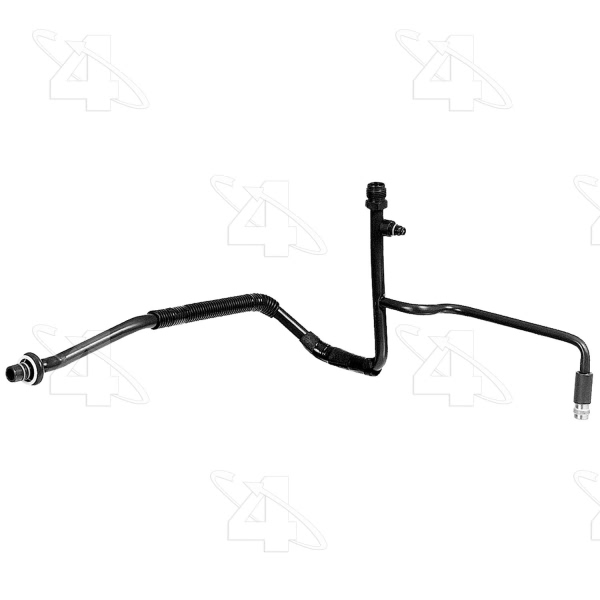

| Part Description | Liquid Line Hose Assembly w/o Orifice Tube |
| Bracket | w/o Bracket |
| Gasket or Seal Included | Included |
| Liquid Line MM | 0.500 |
| O-Ring A Number/Desc | [24668] / Green O-Ring |
| O-Ring A Quantity | 3 |
| O-Ring B Number/Desc | [24608] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24610] / Green O-Ring |
| O-Ring C Quantity | 1 |
| O-Ring D Number/Desc | [24218] / Spring |
| O-Ring D Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | w/ Orifice Tube |
| Refrigerant Type | R134a |
| Service Port | w/ Service Port |
| Service Port Type | R134-A Quick Disconnect |
| Style | Liquid Line Hose Assembly w/o Orifice Tube |
| Suction End Type | Female Springlock |
| Svc Port High Side | High Side |
| Switch Port Quantity | 1 |
| Switch Port Size | M10x1.250 |
| Switch Service Port | w/ Switch Port |
| System Pressure | High Pressure |
| UPC | 096361561038 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993-1997 Ford Probe | All Trims | 6 Cyl 2.5L |
