Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 56491 |

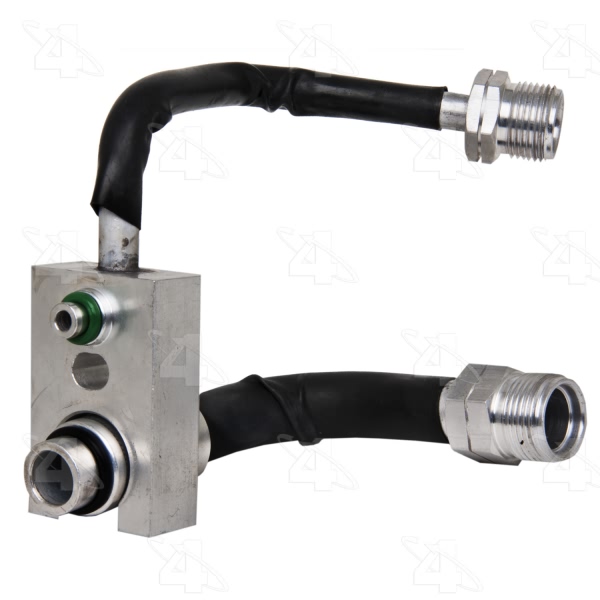

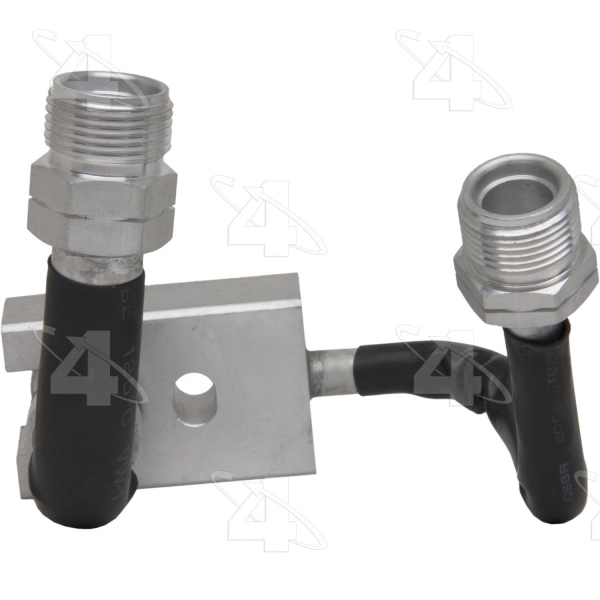

| Part Description | A C Suction And Liquid Line Undercarriage Hose Assembly |
| Bracket | w/o Bracket |
| Discharge End Type | Male O Ring |
| Fittings Included | Included |
| Gasket or Seal Included | Included |
| Liquid Line Gender | Male |

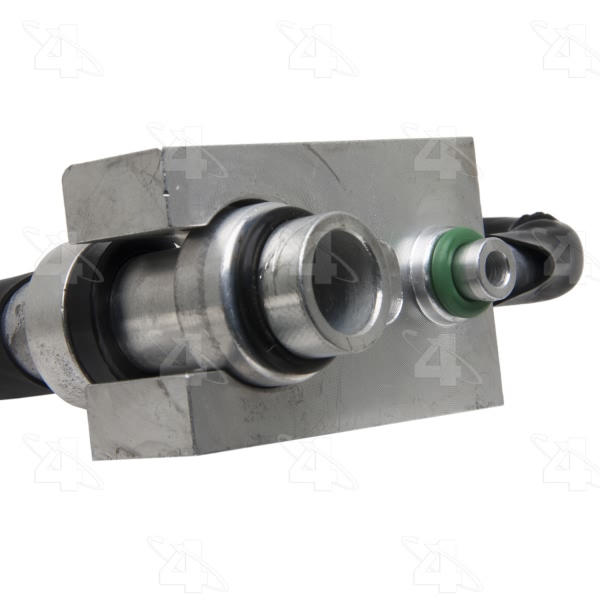

| Manifold | w/ Manifold |
| Material | Aluminum / Rubber |
| Muffler | w/o Muffler |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | [24608] / Green O-Ring |
| O-Ring C Quantity | 1 |
| O-Ring D Number/Desc | [24642] / Green O-Ring |
| O-Ring D Quantity | 1 |
| O-Ring E Number/Desc | [24626] / Green O-Ring |
| O-Ring E Quantity | 1 |
| O.E. Replacement | Yes |
| Orifice Tube | w/o Orifice Tube |
| Refrigerant Type | R134-A |
| Service Port | w/o Service Port |
| Style | Hose Assy /Suction, Liquid |
| Suction End Size | No. 8 |
| Suction End Style | Male Insert O-Ring |
| Suction End Type | Male O-ring |
| Switch Service Port | w/o Switch Port |
| System Pressure | High Pressure / Low Pressure |
| UPC | 096361564916 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2007 Chrysler Town & Country | All Trims | All Engines |
| 2006-2007 Dodge Caravan | All Trims | All Engines |
| 2006-2007 Dodge Grand Caravan | All Trims | All Engines |
