Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57187 |

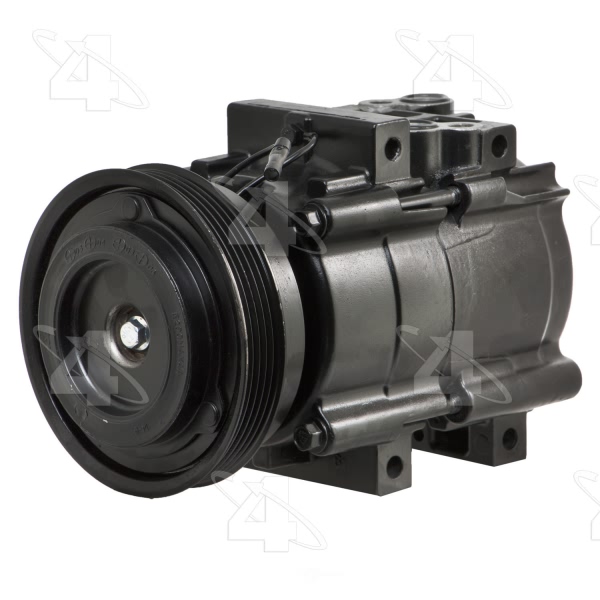

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HS18 |

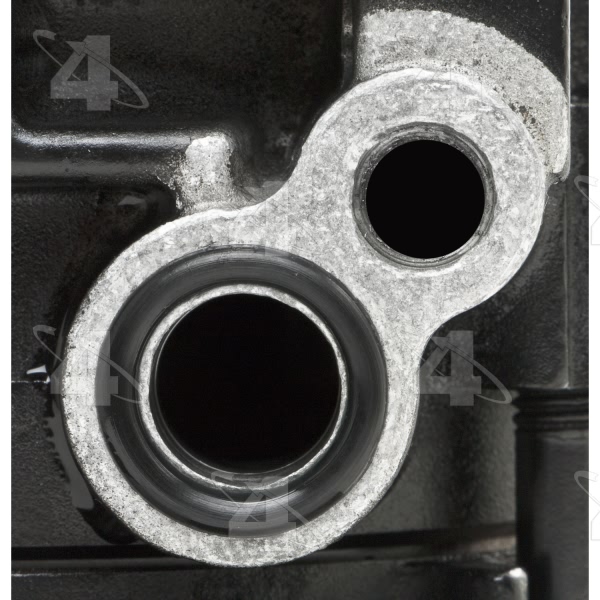

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.90625 |
| Mount Distance MM | 73.660 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24628] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24641] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 123.825 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.875 |
| Pulley Outside Diameter | 4.875 |
| Pulley Ridge Diameter | 4.875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |

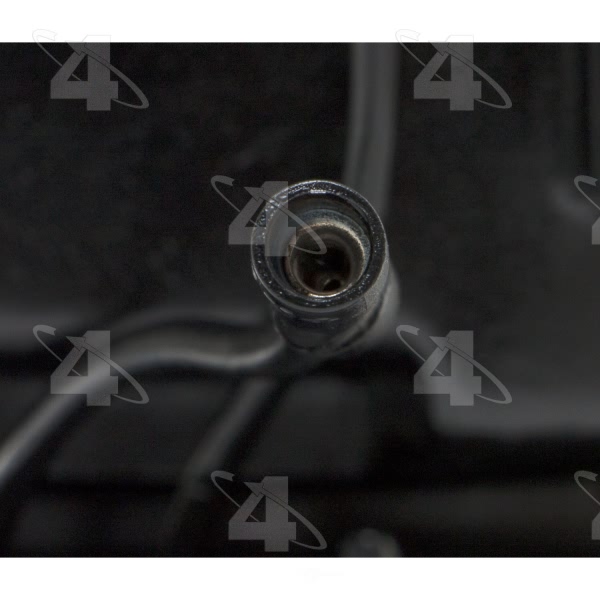

| Terminal Type | Pin |
| UPC | 096361571877 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2004 Hyundai Santa Fe | All Trims | 4 Cyl 2.4L |
