Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 88951 |

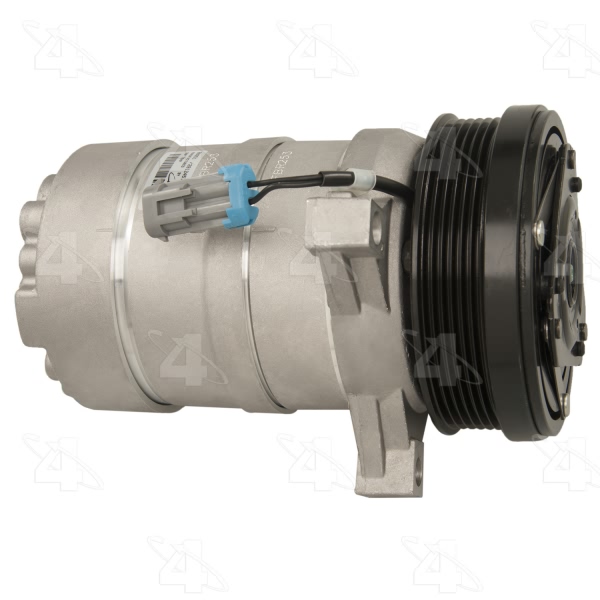

| Part Description | New GM HD6 Compressor w/ Clutch |
| Belt Width IN | 0.875 |
| Belt Width MM | 22.225 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.000 |
| Coil Clock Position | 2 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HD6 |

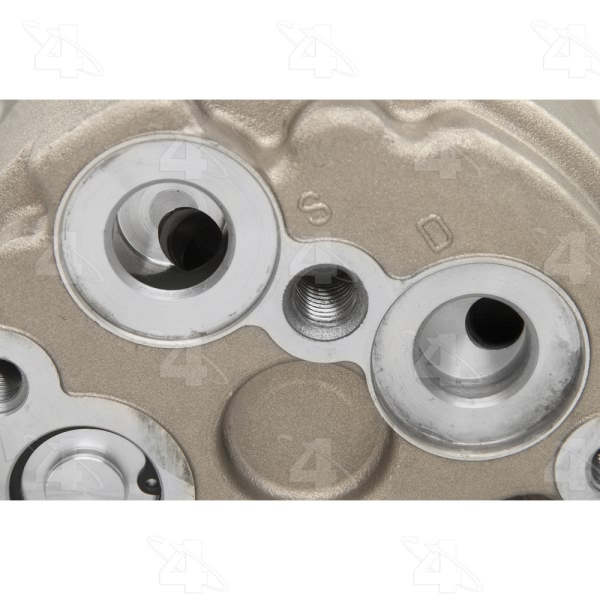

| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 0.59375 |
| Mount Distance MM | 15.240 |
| Mounting Hardware | Not Included |
| Mounting Type | Type X All Ears no Threads |
| New or Reman | New |
| O-Ring A Number/Desc | [24354] / Sealing Washer |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |

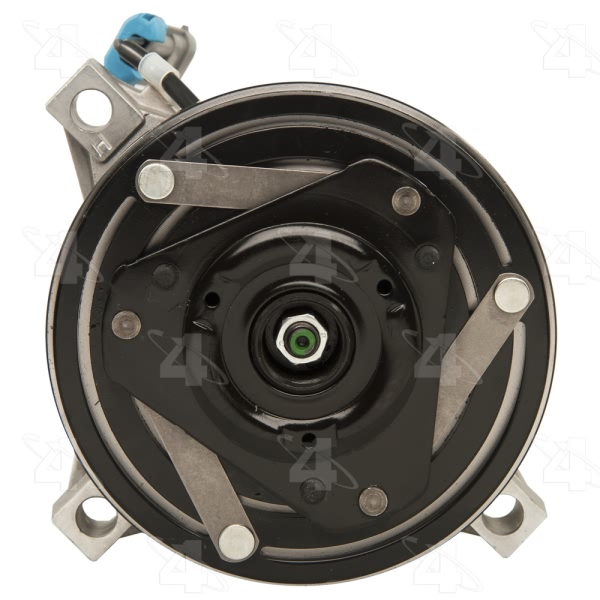

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 5.000 |
| Pulley Outside Diameter | 5.000 |
| Pulley Ridge Diameter | 5.000 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |

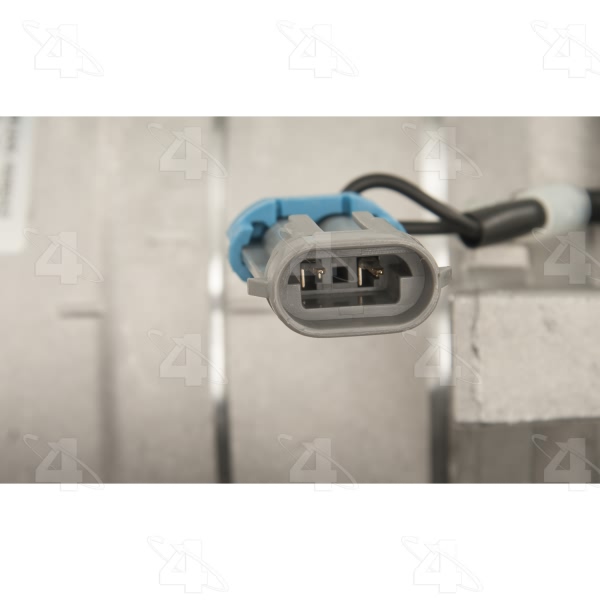

| Terminal Type | 8mm Pin Connector |
| UPC | 096361889514 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993 Cadillac Allante | All Trims | All Engines |
