Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 197277 |

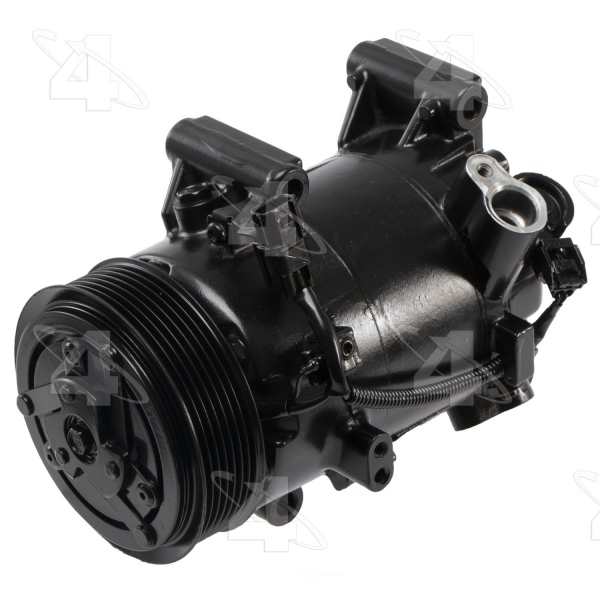

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.330 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | CVC |
| Distance From Clutch To Mounting Flange | 2.000 |
| Mounting Hardware | Not Included |
| Mounting Type | 3 Tangent One on Rear Head |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | 24661 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24681 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter | 4.330 |
| Pulley Outside Diameter | 4.330 |
| Pulley Ridge Diameter | 4.330 |
| Refrigerant Type | R-134a or R1234yf |

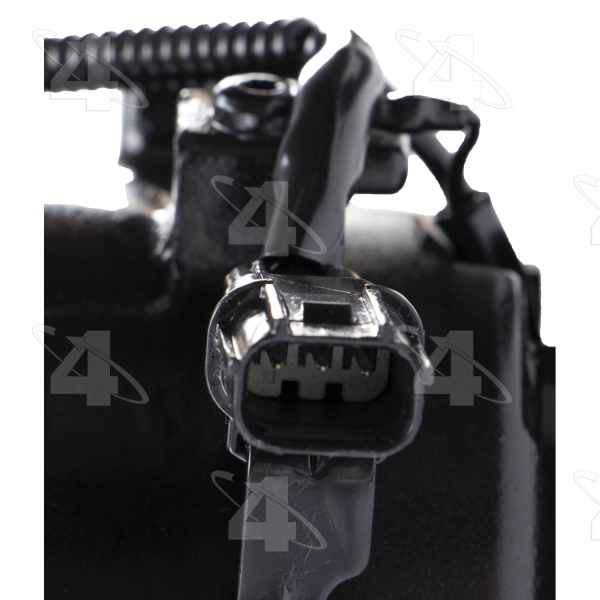

| Terminal Type | Lead Wire |
| UPC | 096361143531 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017 Honda CR-V | All Trims | 4 Cyl 1.5L |
| 2016-2017 Honda Civic | All Trims | 4 Cyl 1.5L |
| 2017 Honda Civic | EX | 4 Cyl 1.5L |
| 2017 Honda Civic | EX-L | 4 Cyl 1.5L |
| 2017 Honda Civic | EX-T | 4 Cyl 1.5L |
| 2017 Honda Civic | LX | 4 Cyl 1.5L |
| 2017 Honda Civic | Si | 4 Cyl 1.5L |
| 2017 Honda Civic | Sport | 4 Cyl 1.5L |
| 2017 Honda Civic | Touring | 4 Cyl 1.5L |
